Suzuki LS650 Savage User Manual

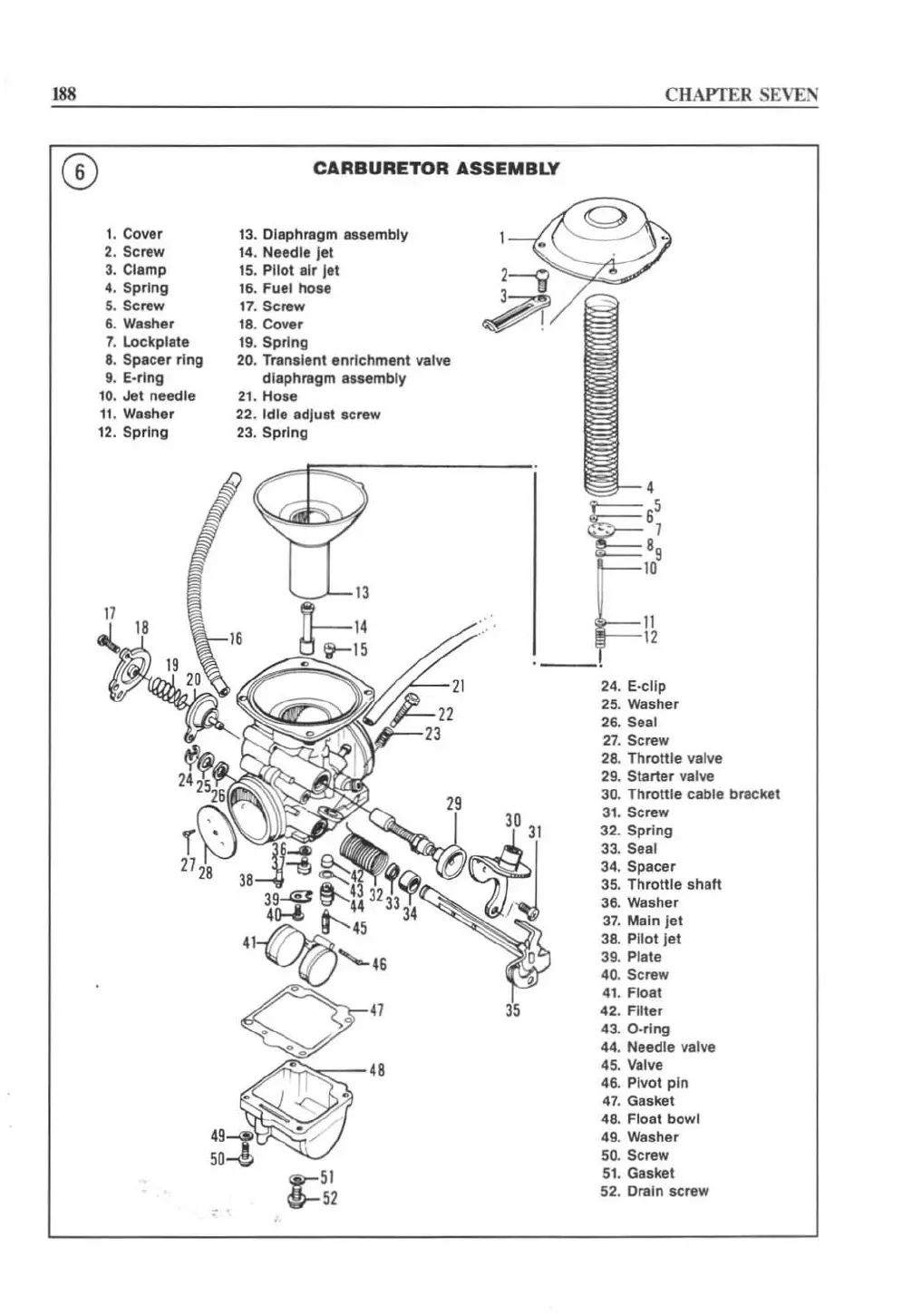

188 CHAPTER SEVEN
CARBURETOR ASSEMBLY
1. Cover
13 . Diaphragm .. sembly
2. Screw
14. Needle Jel
3. Clamp 15. Pilot .Ir jet
4. Spring 16. Fuel hose
5. Screw
17 . Screw
6. Wa.her 18 . Cover
7. Lockpl.te
19 . Spring
8. Spacer ring
20. Tran.ient enrichment valve
9. E·ring diaphragm •• aembly
10. Jet needle 21. Hose
11 . WeIher
22. Idle adjust Ic rew
12 . Spring 23. Spring
4
~65
• 1
[ ,~g
13
11
~:~
11
16
Til
11
24. E-clip
, ~11
25. Washer
26. Seal
13
27 . Screw
28. Throttle valve
29.
Starter valve
30. Throttle cable bracket
31. Screw
32. Spr ing
33. Seal
34. Spacer
35. Throttle shaft
36. Washer
37. Main let
38. Pilot jet
39. Plete
40. Screw
41 . Float
35
42 . Filler
43. O-ring
44. Needle valve
45. Valve
46. PIvot pin
47. Gasket
48. Float
bowl
49. Washer
50 . Screw
~51
51. Gasket
51
52. Drain screw
,

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
