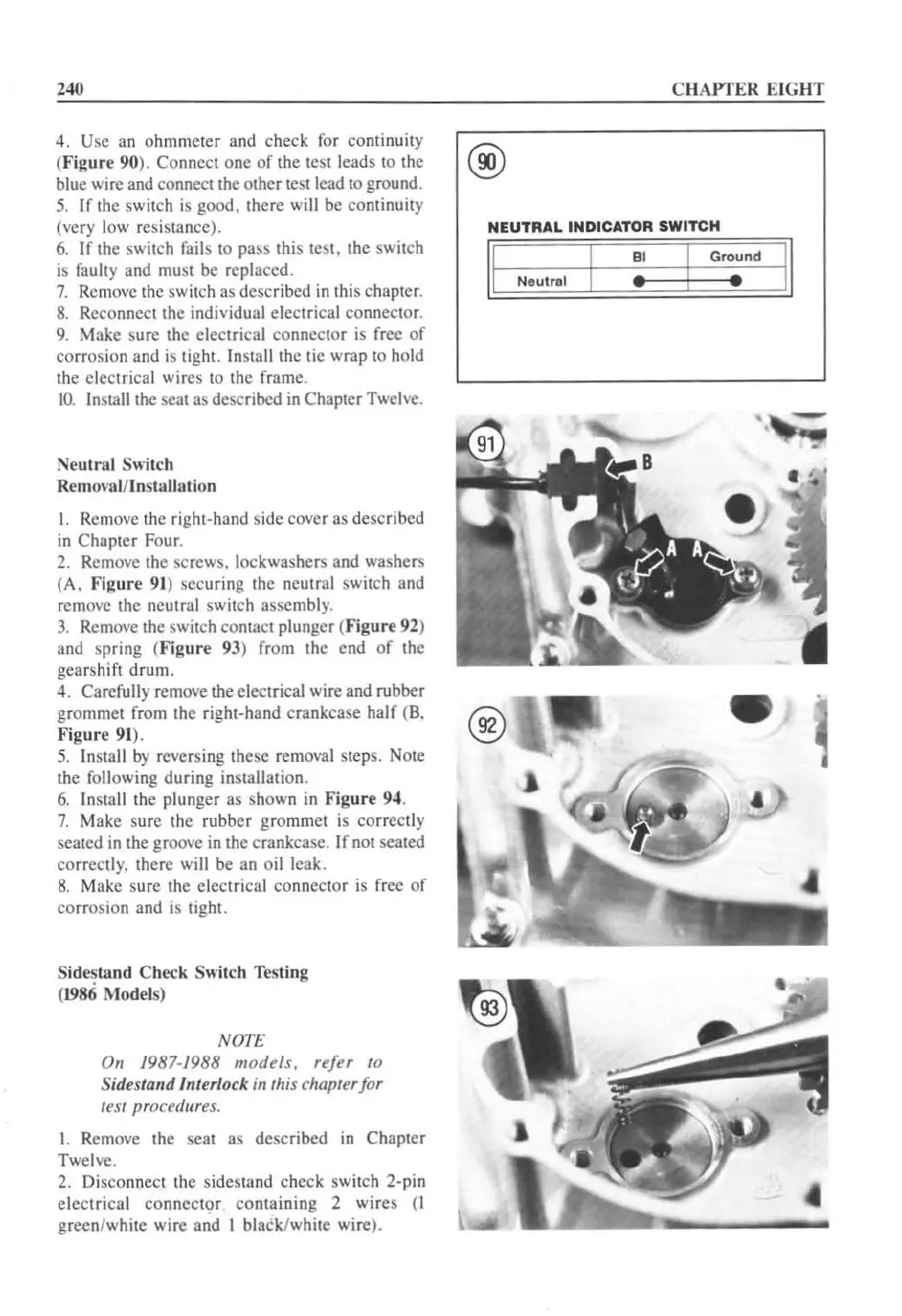

240
4. Usc an
ohmmeter
and check for continuity
(Fig
ur
e 90). Connect one
of
the test leads
to
the
blue wire and connect the other test lead to ground.
5.
If
the switch is good.
there
will
be
continuity
(very low resistance).
6.
If
the swit
ch
fails to pass this teSt. the switch
is faulty and must be replaced.
7.
Remove the switch as described
in
this chapter.
8.
Reconnect the individual electrical conncclOr.
9.
Make sure the electrical
co
nnector is free
of
co
rr
os
i
on
and is light.
In
Sla
1\
the tic wrap to hold
the electrical wires
10
the frame .
10.
Install the scal as described
in
Chapler Twelve.
Ne
utr
al Switch
Remo\'ai/
in
sla
li
a
li
on
I. Remove the right-hand side cover
as
desc
ri
bed
in Chapter Four.
2. Remove the screws. lockwashers and was
her
s
(A,
Figu
re
91) securing the neutral switch and
remove the neutral switch assembl
y.
3.
Remove the switch contact plunger (Fig
ur
e 92)
and spring
(F
igu
re
93)
from the
end
of
the
gears
hi
ft
drum.
4. Carefully remove the electrical wire and rubber
grommet
from the right-hand crankcase
half
(B,
Fi
gur
e
91
).
5.
Install
by
reversing these removal st
eps
. Note
the following during
in
stallation.
6.
Install the plunger as
shown
in Fig
ure
94.
7.
Make sure the
rubber
grommet
is
co
rr
ect
ly
seated in the groove
in
the crankcase.
If
not seated
correctly, there will be an
oil leak.
8.
Make sure the
electrica
l connector is free
of
corrosion
and is light.
S
id
~
l
a
nd
Ch
et
k Switch Tes
tin
g
(
19
86
M
od
els)
NOTE
a,l
/987-/988
mot/e/s,
refer 10
Sidest
and
Inter/ock in this chapter
for
test procelJures.
1.
Remove the seat
as
described
in
Chapter
Twelve.
2. Disconnect the sidestand
check
switch 2-pin
electrical
connector
containing
2
wires
(I
green/white wire and I blaCk/white wi r
e).
CHAPTER EIGHT
NEUTRAL
INDICATOR
SWITCH
II
Neutral
.,
•
Ground
•
•
II
