TRANSMISSION AND GEARSHIFT MECHANISMS
175

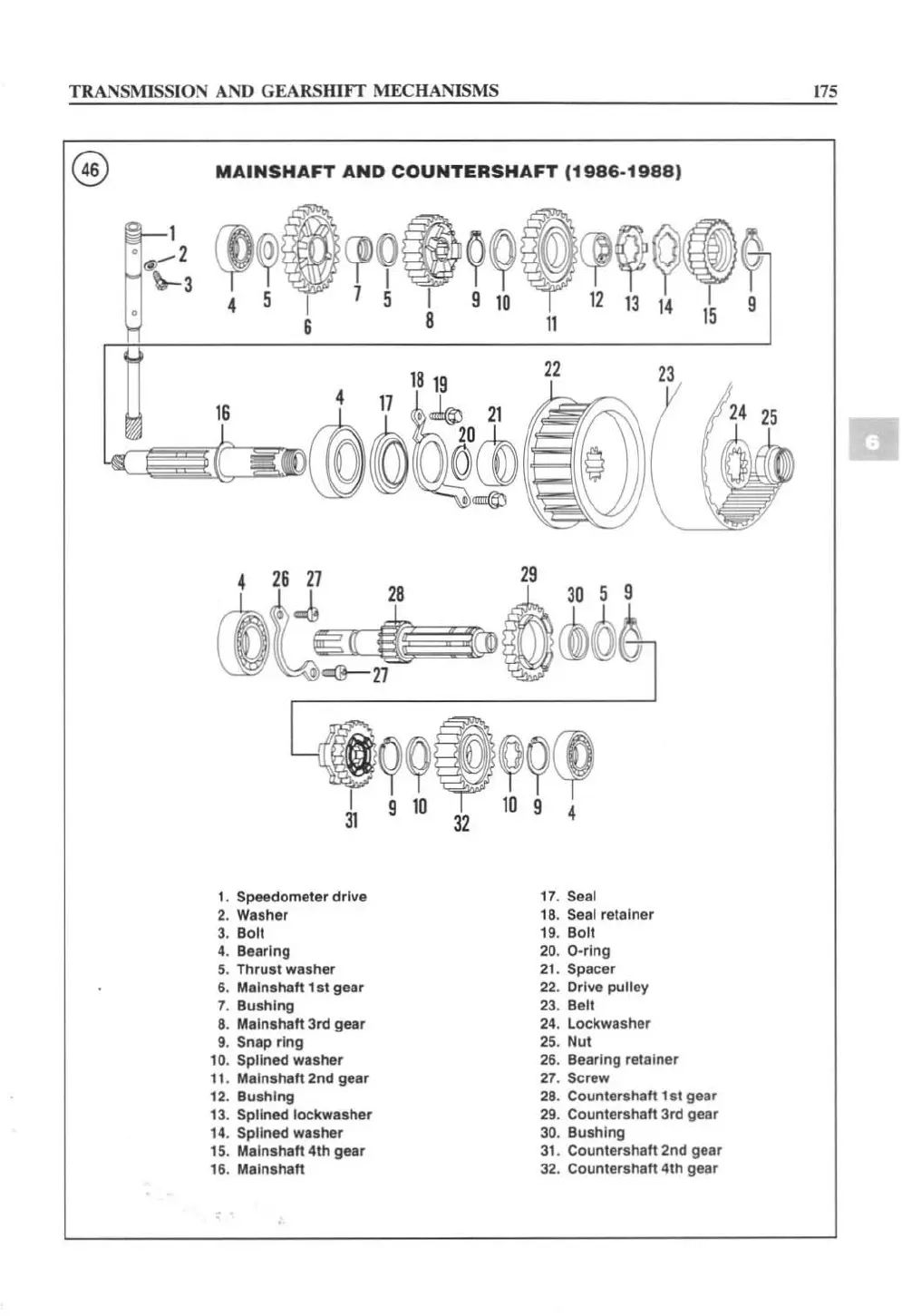

MAINSHAFT AND COUNTEASHAFT (1 986 - 198 8)
1. Speedometer drive
17 . Sea t
2. Washer
18. Sea l relalner
3. 8011
19. Bolt
4. Bearing 20. O-ring
S. Thrust washer
21 . Spacer
6. Malnshaft 111 gear
22 . Orille pulley
7. Bushing
23. Belt
8. Maln.hatt 3rd gear
24. Lockwash er
9. Snap ring
25 . Nul
10 . Spllned wISher 26. Bearing retainer
11 . Maln.hatt 2nd gear 27. Screw
12 . Buahlng
28 . Countersha" ,.t gear
13 . Spllned lockwasher
29. Counter.haft 3rd gear
14 . Spllned washer
30. Bushing
15. Ma l n.hatt 4th gear
31. Countersha" 2nd gear
16. Ma l n.hatt
32. Countersh." 4th gear

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
