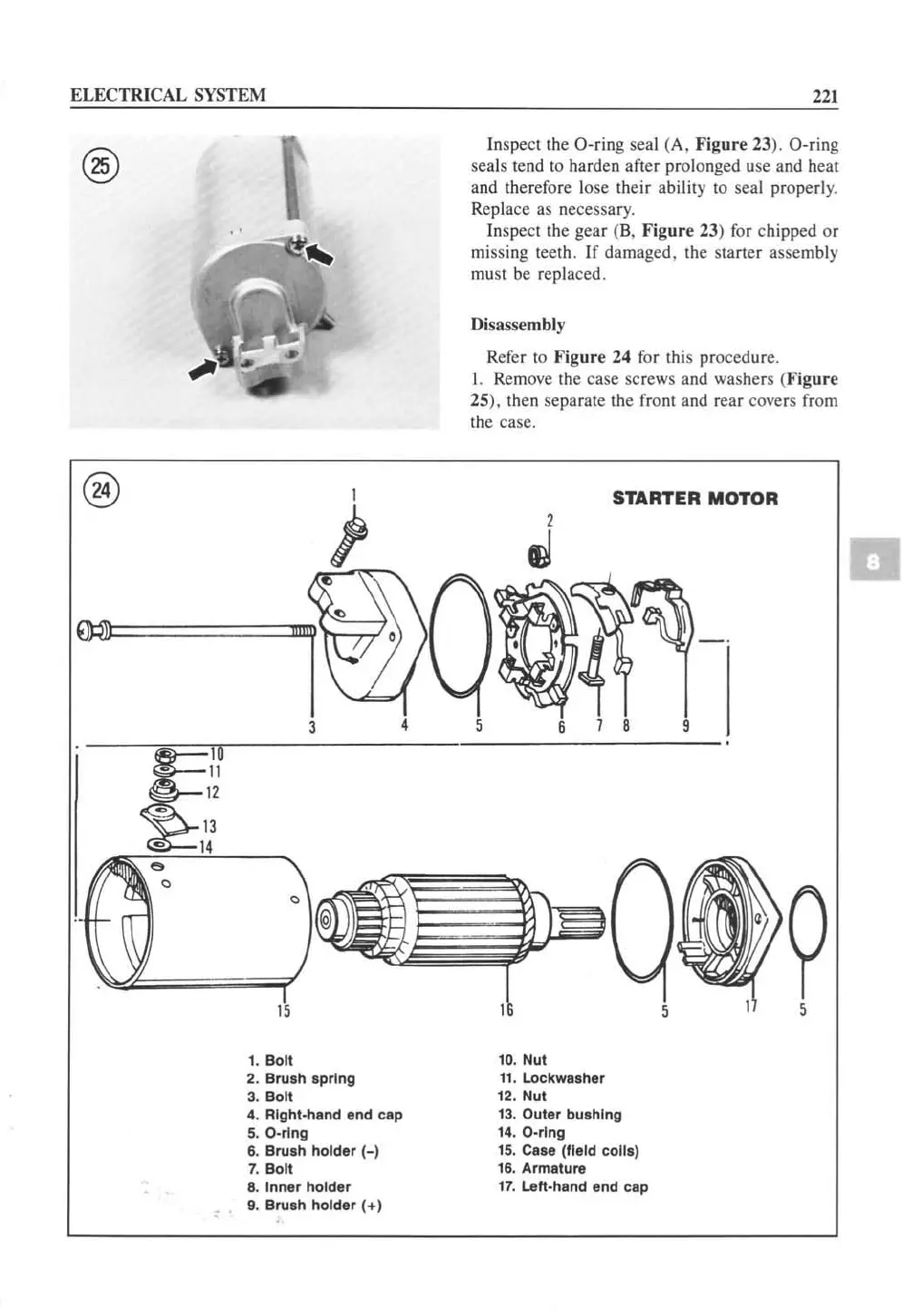

ELECTRICAL SYSTEM
..
®
3
4
1. Boll
2. Brush sprIng
3. Bolt
4. RIght-hind end cap
5. O-ring
6. Brush holder (-)
7. Bolt
8. Inner holder
9. Brush ho lde r (+)
221
In spect the D-ring se al (A, Figure 23 ). D-ring
seals tend to harden after prolonged u se and heal
and therefore lose their ability to seal properly.
Replace as necessary.
In s pe ct th e gear (B. Figure 23) for chipped or
missing teeth . If damaged, the starter assembly
mu st be replaced.
Disassembly
Re fer to Figure 24 for this procedur e.
1. Remove the case sc rews and washers (Figure
25). then separate th e front and rear covers fr om
the case.
STARTER MOTOR
1
e
5
6
7 B
9
10. Nut
11 . Lockwasher
12. Nut
13. Outer bushing
14 . O-ring
15. Cale (fIeld colis)
16 . Armature
17. Left-hand end cap

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
