ELECTRICAL SYSTEM
243
. -
" A~ -.
1 ., '0 -' ,
- ~~
?I , .. .
B __ _

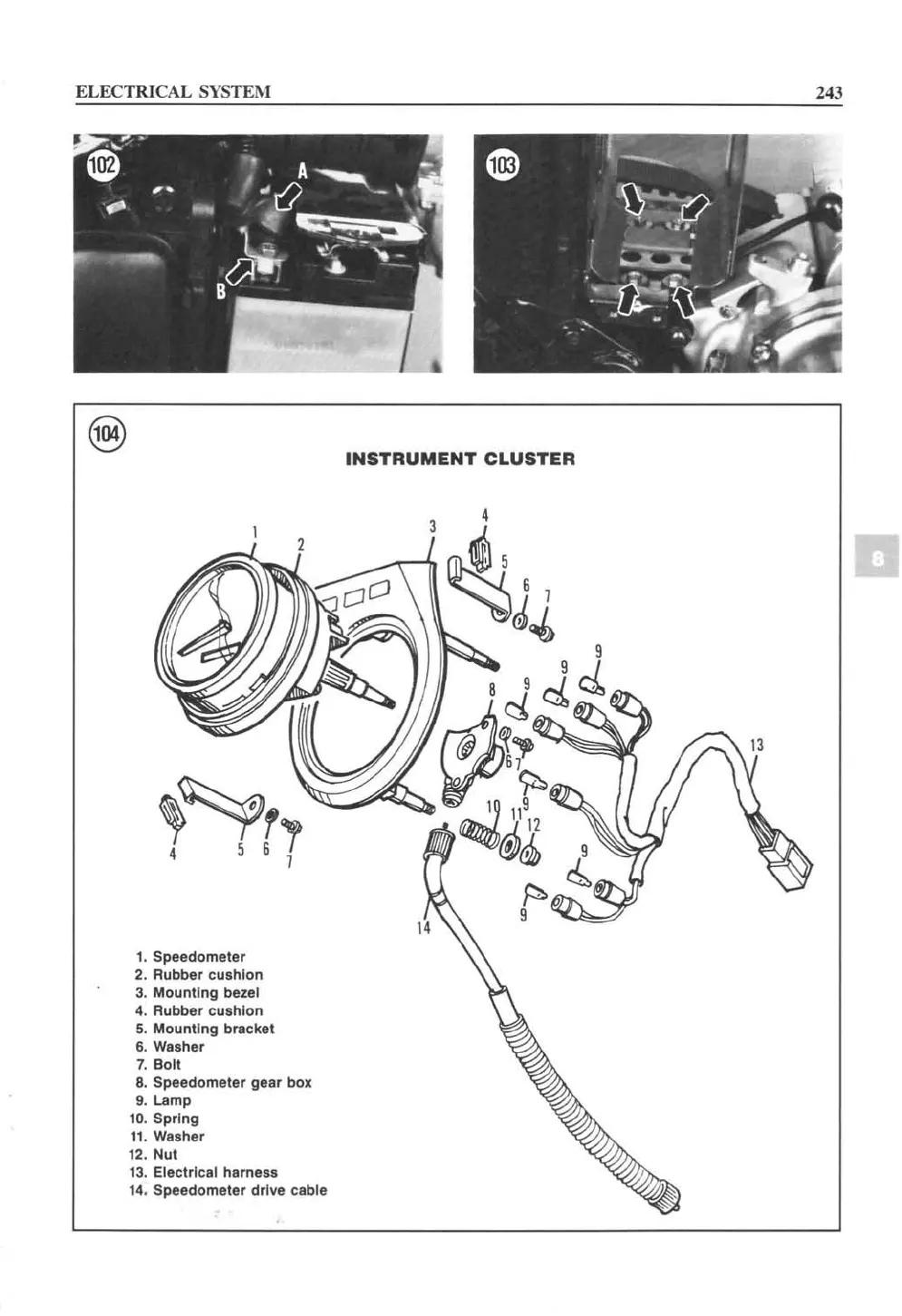

INSTRUMENT CLUSTER
1. Speedometer
2. Rubber
cushion
3. Mounting bezel
4. Rubber cushion
5. Mounting bracket
6. Waaher
7. Bolt
8. Speedometer gear bOI(
9. Lamp
10 . Spring
11. Waaher
12. Nut
13. Electrical harness
14 , Speedometer drive cable

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
