ENGINE
Remo\'al
CAUTION
To prewlII any warpage alld damage,
remove
'he cylinder head assembly
on/y when the engine is til room
tempermure.
NOTE
Dilly ill sO lli e cases can the cylinder
head cover be remollel/with the ellgille
ill the frame. n,ls llepends on the
mamtjacturing
tolerances of your spe-
cific frame. If the frame is a (jule on
th e "sm afl " side from top 10 bOIlOIl/,
i ll the ellgine mounting area, or if one
of Ihe engine mounting bosses is a lillIe
off tolerance it will be impossible to
remove Ihe cylil/der head cover,
camshaft
and the cylinder h ead wirh
the ellgine in Ille f rame . It is suggested
that
the engine be remm'ed from the
frame for this procedure.
CAUTION
If yo II choose to try to remove the upper
end with Ihe engine in the frame, do so
ca refully -do not try to force anything
off if there isn't enough room betwee n
Ihe engine
alUl the t Op of the frame rail.

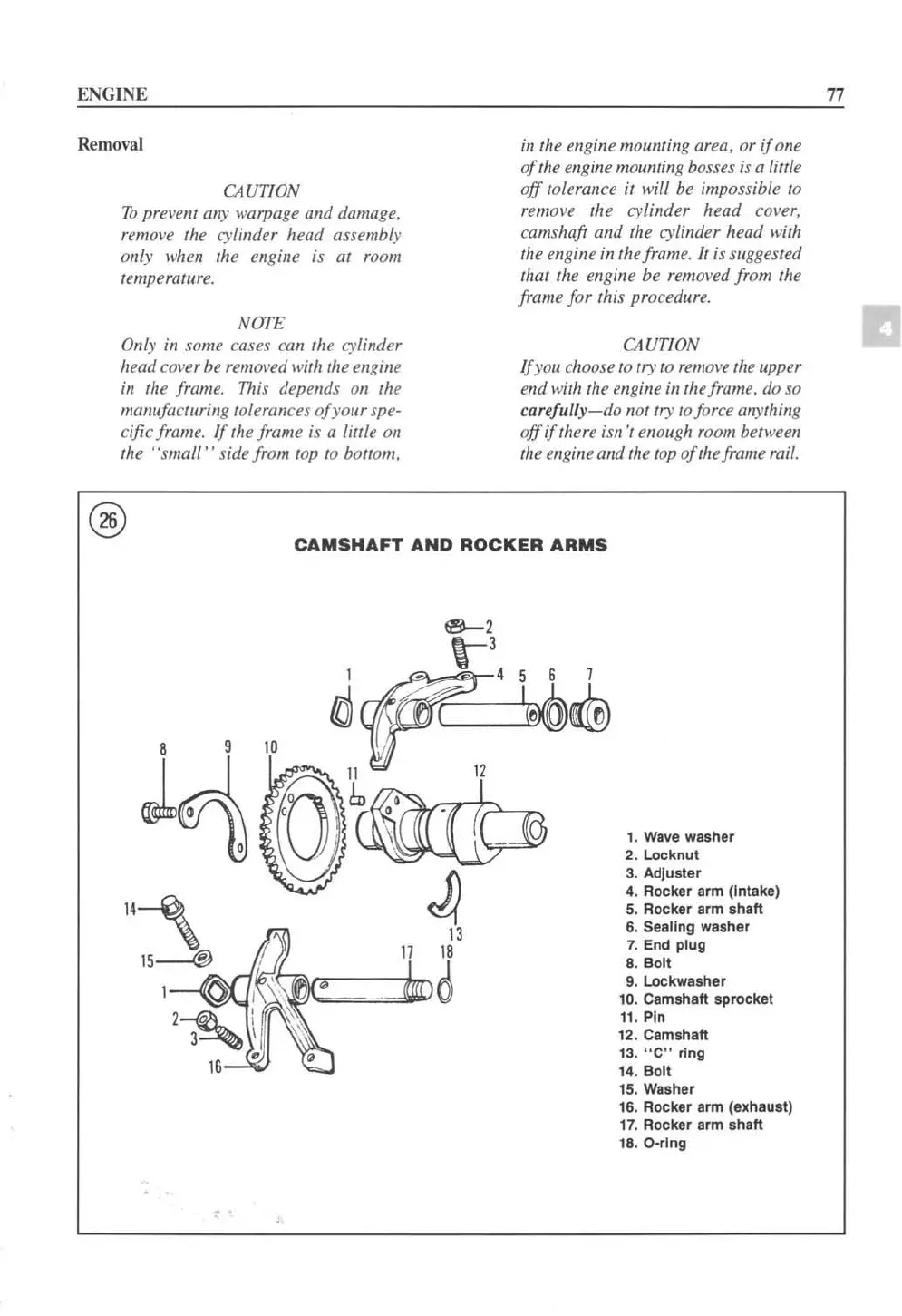

CAMSHAFT AND ROCKER ARMS
~ 2
1
t-
3
4
5
6
)
(Q)
(
I(.X@~
10
12
1. Wave washer
2. Locknut
3. Adjuster
4. Rocker arm (intake)
5. Rocker arm shaft
6. Sealing washer
7. End
plug
8. Bolt
9. Lockwasher
10 . Csmshsft sprocket
11 . Pin
12. Camahaft
13 . " C" ring
14. Bolt
15 . Washer
16. Rocker arm (exhaust)
17. Rocker arm shaft
18. C_rlng
77

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
