I 995 -0 N TRANS;\lISSION SERVICE INFORl\1ATION

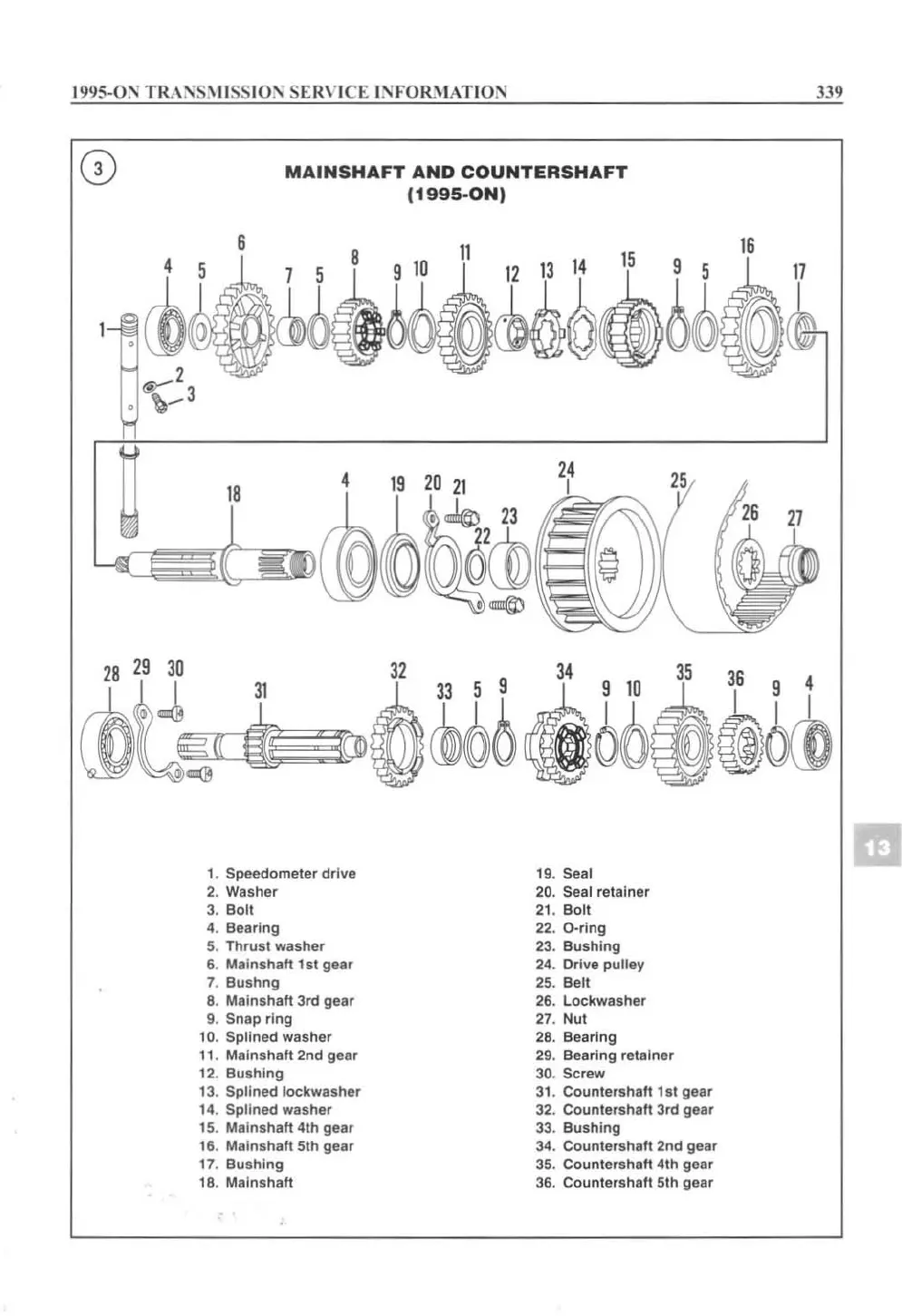

MAINSHAFT AND COUNTERSHAFT
1199S·0N)
1. Speedometer drive 19 . Seal
2. Washer 20. Seal relainer
3.
Bolt 21 . Bolt
4. Bearing 22 . O-ring
5. Thrust washer
23. Bu
shing
6. Ma l nshatt 1st gear 24. Drive pulley
7. Bushng 25. Belt
8. Malnshatt 3rd gear 26 . Lockwash er
9. Snap r
ing 27 . Nul
10. Spilned washer 28. Bearing
11 . Malnshatt 2nd gear 29 . Beari ng retainer
12 . Bushing
30 . Screw
13.
Spllned lockwasher 31 . Countershatt ,.1 gear
14 . Spllned washer 32. Counlershatt 3rd gear
15 . Ma l nshatt 41h gear 33. Bushing
16. Ma l nshatt 51h gear 34 . Co unl er shatt 2nd gear
17.
Bushing 35. Countershatt 41h gear
18. Malnshatt 36 . Countershalt 5th gear
JJ9
II

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
