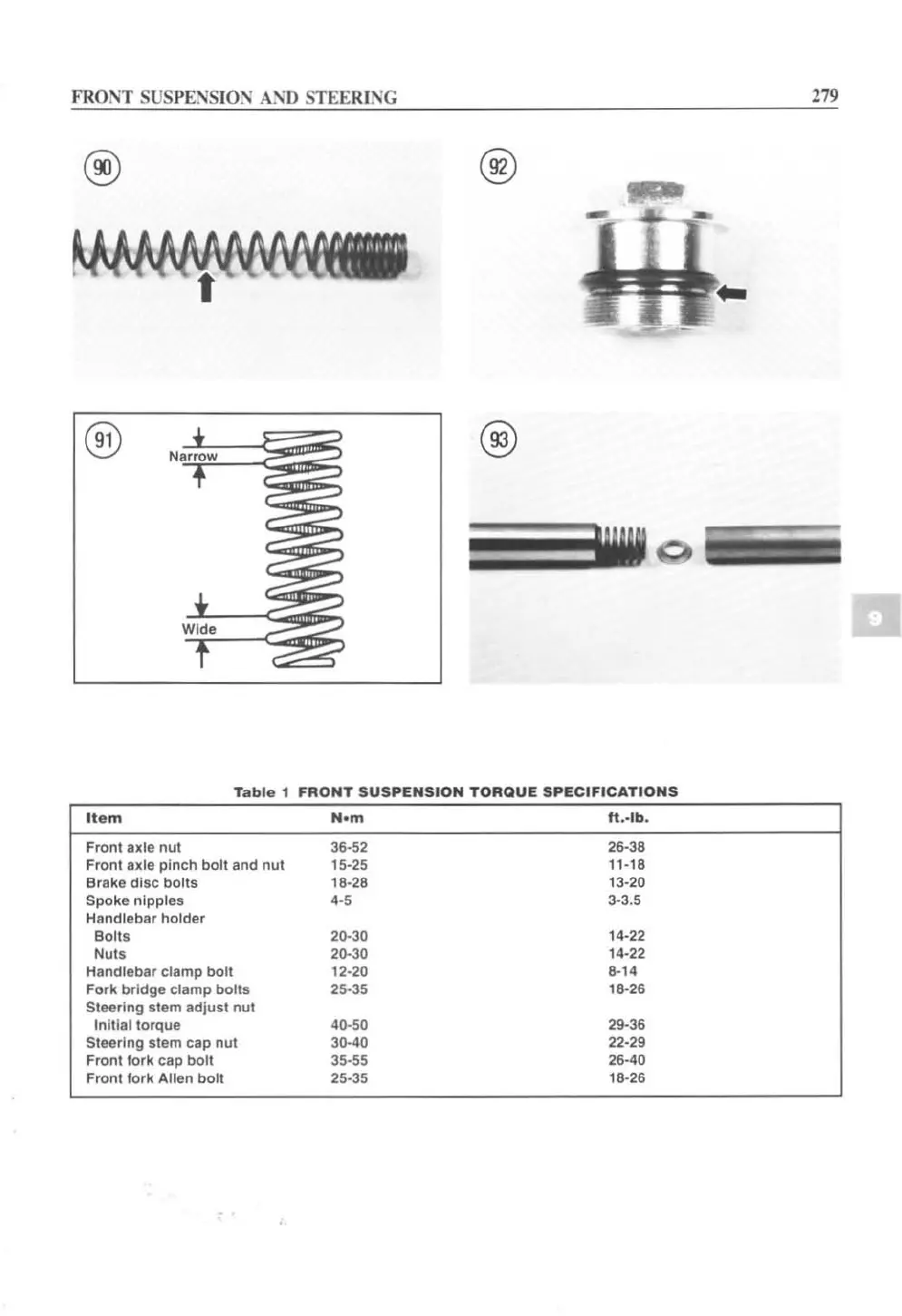

FRONT SUSPENSION AND STEERING
279
®
Ta bl e 1 FRONT SUSPENSION TORQUE SPECIFICATIONS
It em
N.m
ft. · lb .
Fronl axle nul 36·52 26·38
Front axle pinch boll and nut 15·25 1H8
Brake disc bolts 18·28
13·20
Spoke nipp les
4-'
3·3.5
Handlebar holder
Boils 2G-30
14·22
Nuts 2G-30
14-22
Handlebar clamp bolt
12-20 8·14
Fork bridge clamp bolls 25-35
18-26
Sleering stem adjust nut
Inilial torque
40-5<>
29-36
Sleering stem cap nut 3G-40
22-29
Fronllork cap boll
35-55 26·40
Front lork Allen boll 25-35
18-26

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
