Suzuki LS650 Savage User Manual

346
Right Iront
turn signal
Headlight
Left
front
lurn signal
Horn
Horn
switch
1986 LS650
..
•
•
~-
o •
- <
.-
eg' ~,g'
•
. ~
0<
0-
-5 !!!g'
•
~
,
~
" "
~<;
••
~
,
;:!~
oS! .~
• i
g~
:~
:;: .~
•
'<
.'
ii¥ o£
0.
X_
••
I
r--- rr -- H I--..J .....
~; lJ.tl
Dimmer
switch
Turn
signal light
swllch
Ignilion
switch

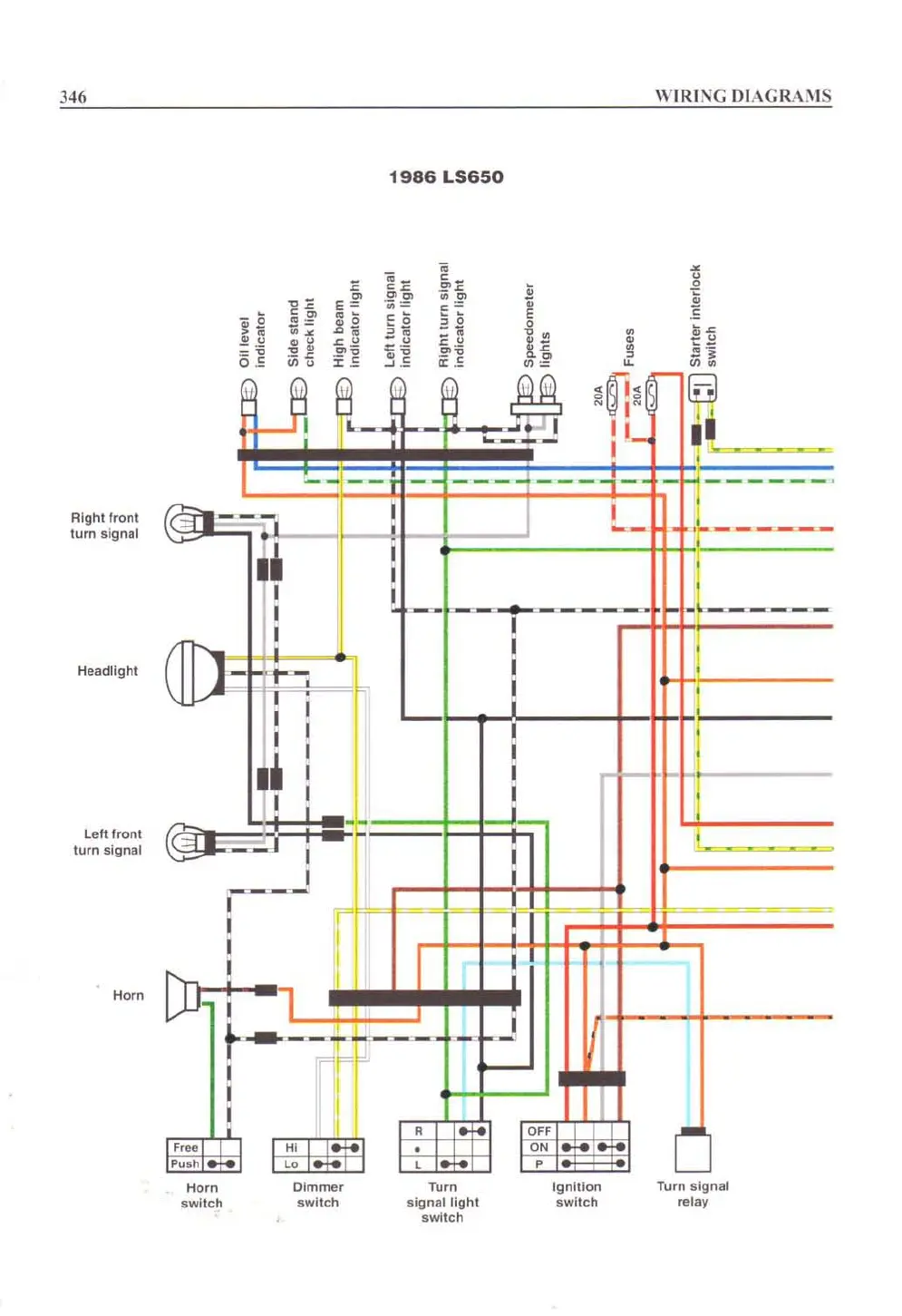

WIRING I)IAGRA;\IS
Turn signal
relay

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
