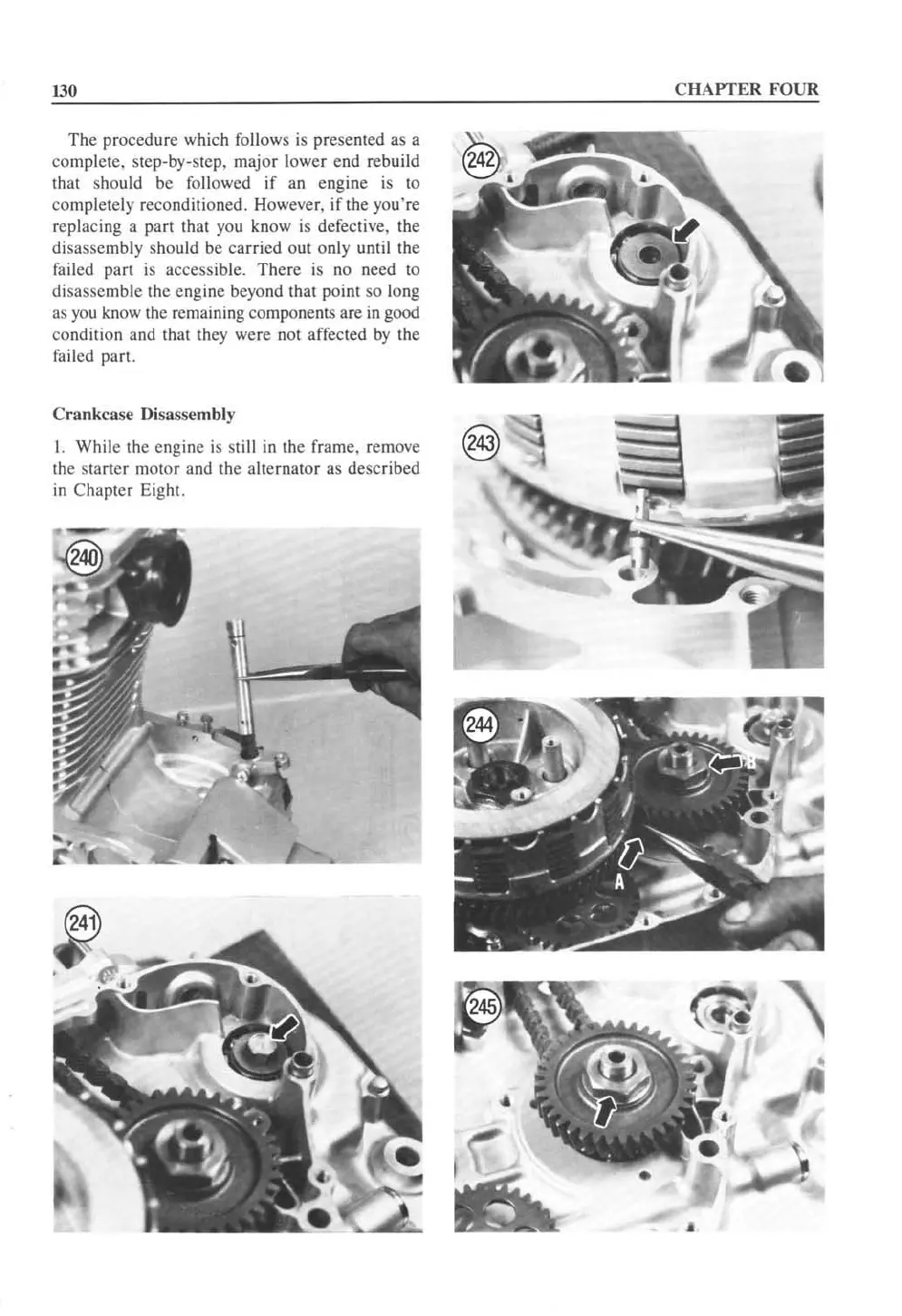

13 0
The procedure wh ich follows is presented as a
complete. step-by-step, major lower end rebuild
that should be followed
if an engine is to
completely reconditioned. However. if the you're
replacing a part thai you know
is defective, the
disassembly should
be carried out only until the
failed part
is accessible. There is no need to
disassemble the engine beyond th at point so long
as you know the remaining components are in good
condition and that they were not affected by the
failed part.
Crankcase Di sassembly
1. While the cngine is still in the frame. remove
the starter motor and the
aliernalOr as described
in Chapler Eight.
CHAPTER FOUR

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
