Battery
o
@

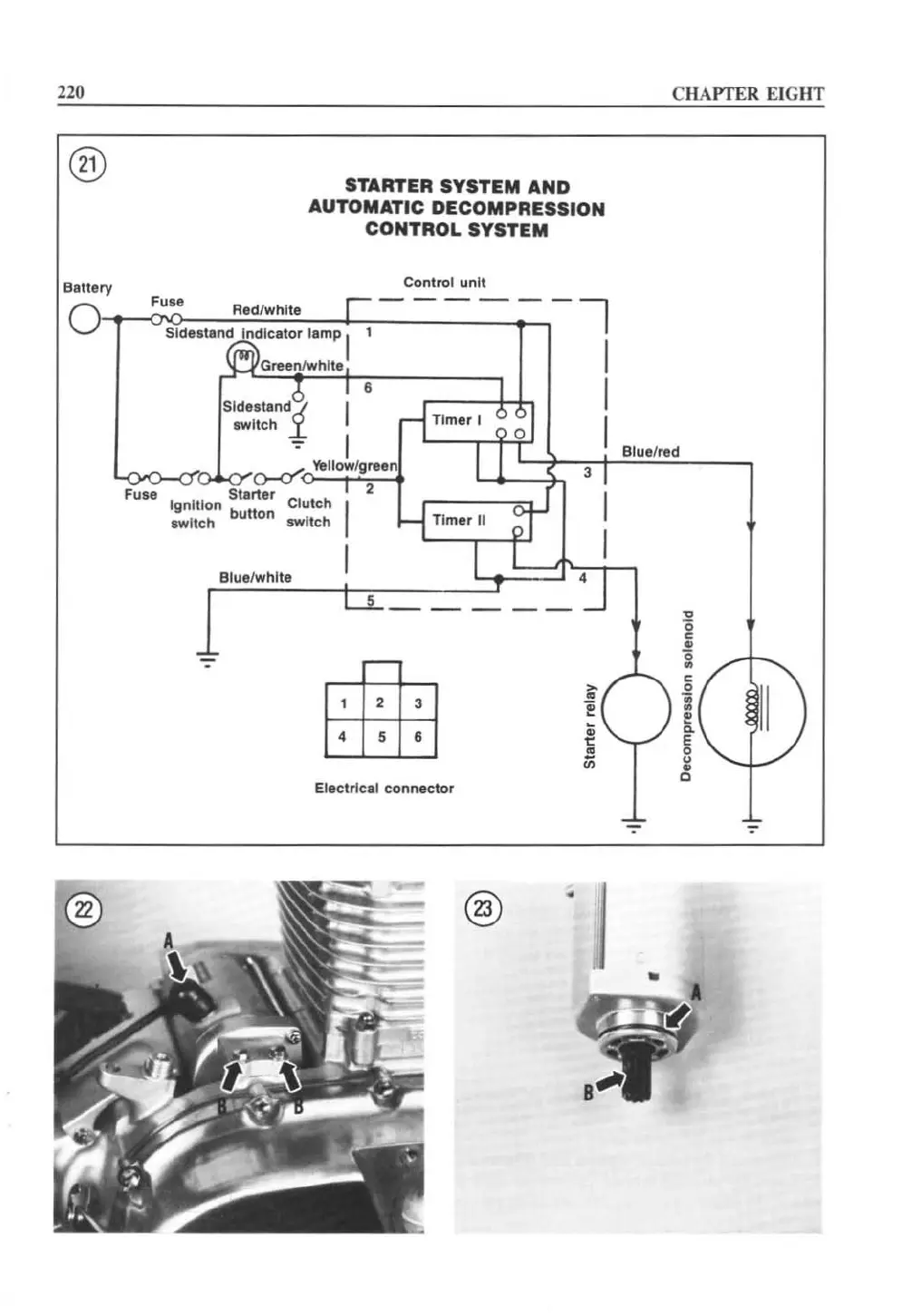

STARTER SYSTEM AND
AUTOMATIC DECOMPRESSION
CONTROL SYSTEM
Control un ll
Fuse
Radlwhite
, ------,
Sidestand Indicator lamp I
Greenlwhlta
Slde.land ;(
switch .r.
I
I
•
4Y(:>--o'().~YQ--<7"'; 'mllow/ gr.en
Starter 2
Fuse
Ignlllon Clutch I
switch button switch
Btue/whlte
I
~
~
Electrical connector
@
•
,
I
I
I
CHAPTER EIGHT
Blu. fred

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
