Suzuki LS650 Savage User Manual

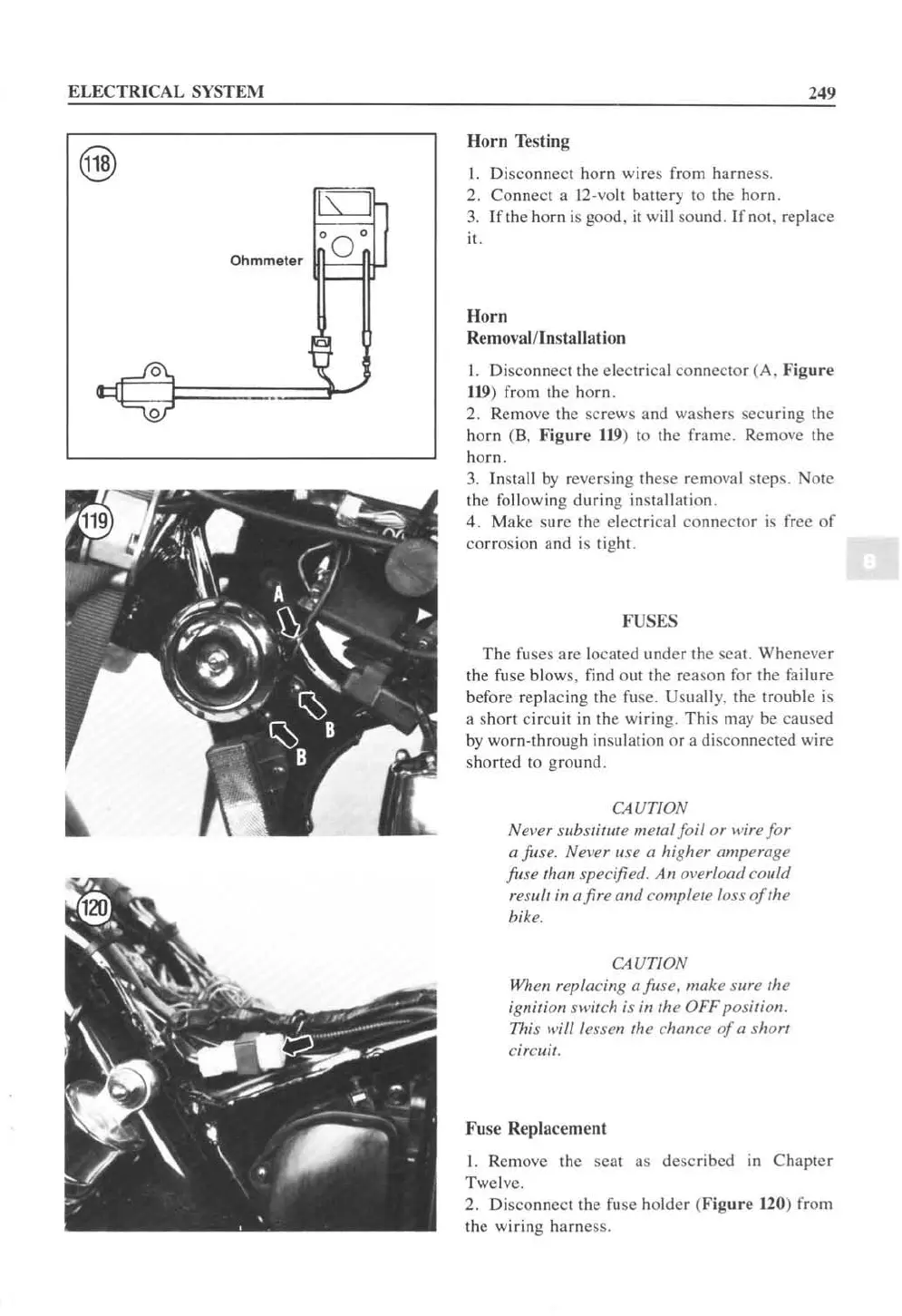

ELECTRICAL SYSTEM
EJ
Ohmme ter
·0·
1 ~
.JcS\..
-
\QI
249
Horn Testing
\. Disconnect horn wires fr om harness.
2. Connect a 12-volt battery 10 the horn.
3. If the horn is good. it will sound . I fnol, replace
it.
Horn
Remo\'aillnstallation
L
Disconnect the elect ri cal connector (A. figure
119 ) from the horn.
2. Remove the screws and washers securing the
horn (B. Fig ur e 1 19 ) to the frame. Remove the
horn.
3. Install by reversing these removal Sleps. NOic
the following during insta ll ation.
4. Make sure the electrical conn eclO r is frcc of
corrosion and is tight.
F USES
The fuses arc located under the scaL Whenever
the fuse blows. find o ut the reason for the failure
before replacing
the fuse. Usually. the trouble is
a shori circuit in the wiring. This may be caused
by worn-through insulation or a disconnected wire
shorted to ground.
CAUTION
Nel'er subslilUre metal foil or w;re for
a fllse. Newr li se a higher amperage
fuse
Ihall .~pecified. An OI re r/oad could
re.mlr
ill afire ami complete loss of the
bike.
CAUTION
Whell replacillg afllse . make sure the
;gll;lioll switch is i lllh e OFF position.
nlis !l'iff lessen the chance of (/ shorl
circuit.
Fuse Replacement
I. Remove the scat as described in Chap t er
Twelve.
2. Disconnect the
fu se h older ( Fig ur e 110) from
the wiring harness.

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
