Suzuki LS650 Savage User Manual

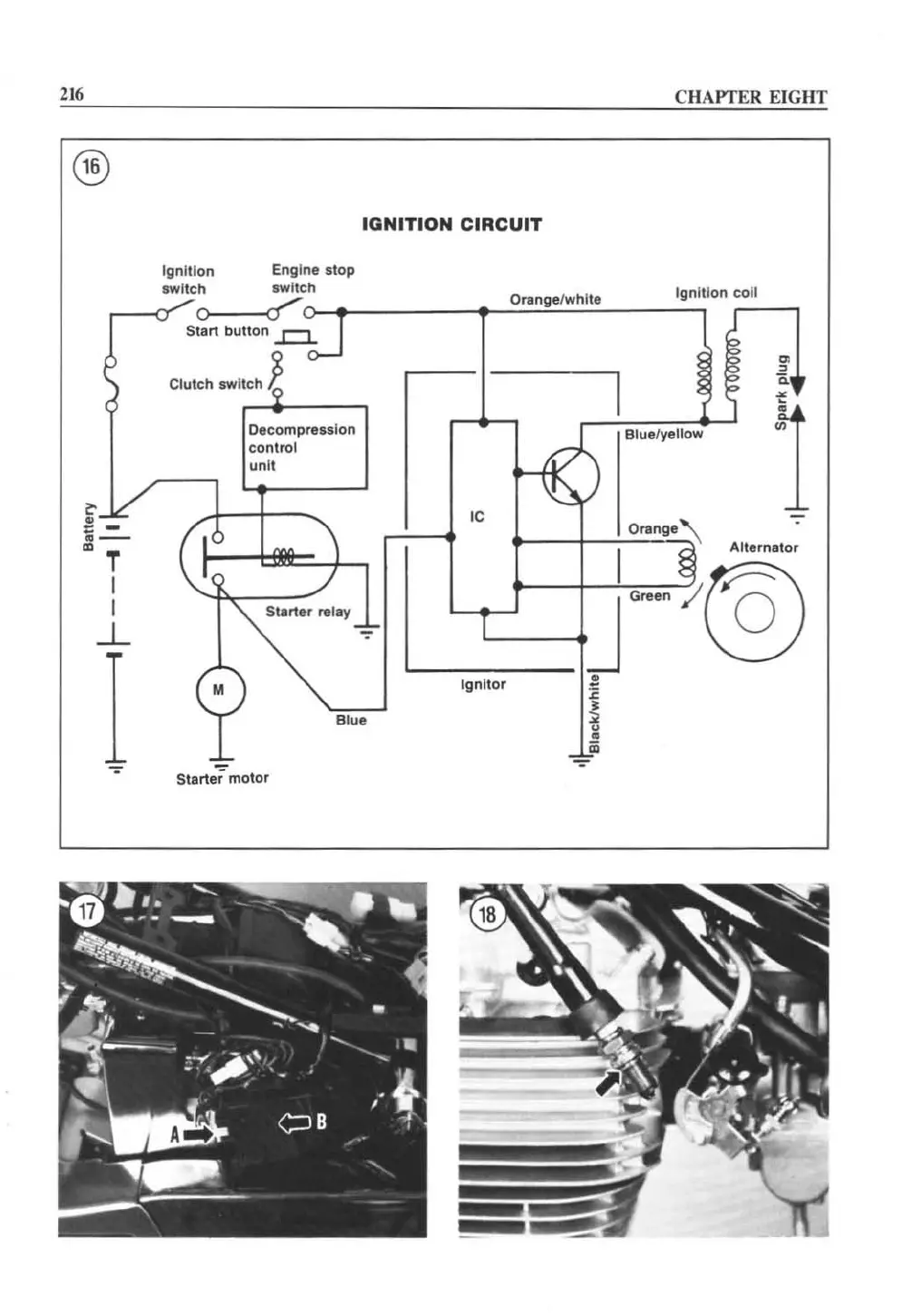

216
CHAPTER EIGHT
IGNITION CIRCUIT
Ignition Engine stop
switch switch
'_ <:r/o-------cf()- l>- _____ ...,_~ O~"~"~.~.Iw~h~It!. ___ ~I~':"~lt. lon coli
Start bullon ..cl. ,----,
~
•
= -
~ -
T
I
I
...L
I
Clutch switch E.
Decompression
control
unit
Starter relay
Blue
Starter motor
Blue /y ellow
Ie

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
