Suzuki LS650 Savage User Manual

CLUTCH
@
t
A
t
8
®
®
16 1

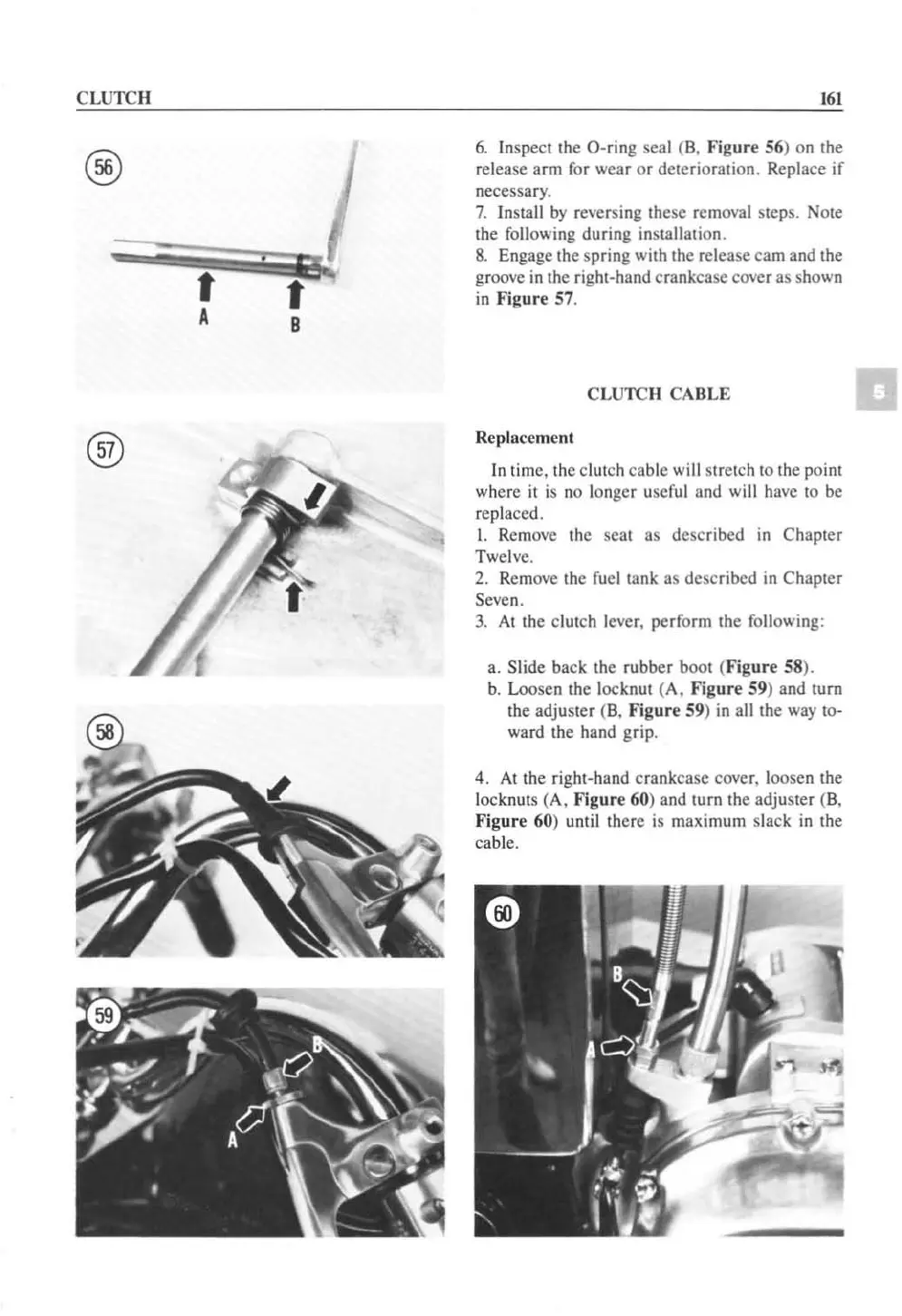

6. Inspect the O-ring seal ( 8. f ig ur e 56) on the
release arm
fo r wear or deterioration. Replace if
n ecessa r y.
7. Inslall by rev ersing these removal steps. Note
the foll owing during installation.
8. Engage the s pr ing with the rel ease cam and the
groove in the righi-ha nd crank case cover as sh ow n
in Fig ur e 57.
CLUTCH CA BL E
Re
pl acement
In ti me. the clutch ca ble will stretch to the poim
where
it is no longer useful and will have 10 be
replaced.
1. Remove the scat as described in Chapl er
Twelve.
2. Remove the fuel lank as desc
ri bed in Chapler
Seven.
3. AI the clutch leve r. perform th e following:
a. Slide back th e rubber boot (Fig ur e 58).
h.
Loosen th e locknut (A. Figu re 59 ) and tum
the adjuster (8. Fig ur e 59) in a ll the way 10-
wa rd the hand grip.
4. AI the right-hand crankcase cover. loosen the
locknuts (A. Fig ur e 60) and turn the adjuster (B,
Figure 60) unt il there is muimum slaek in the
cable.
II

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
