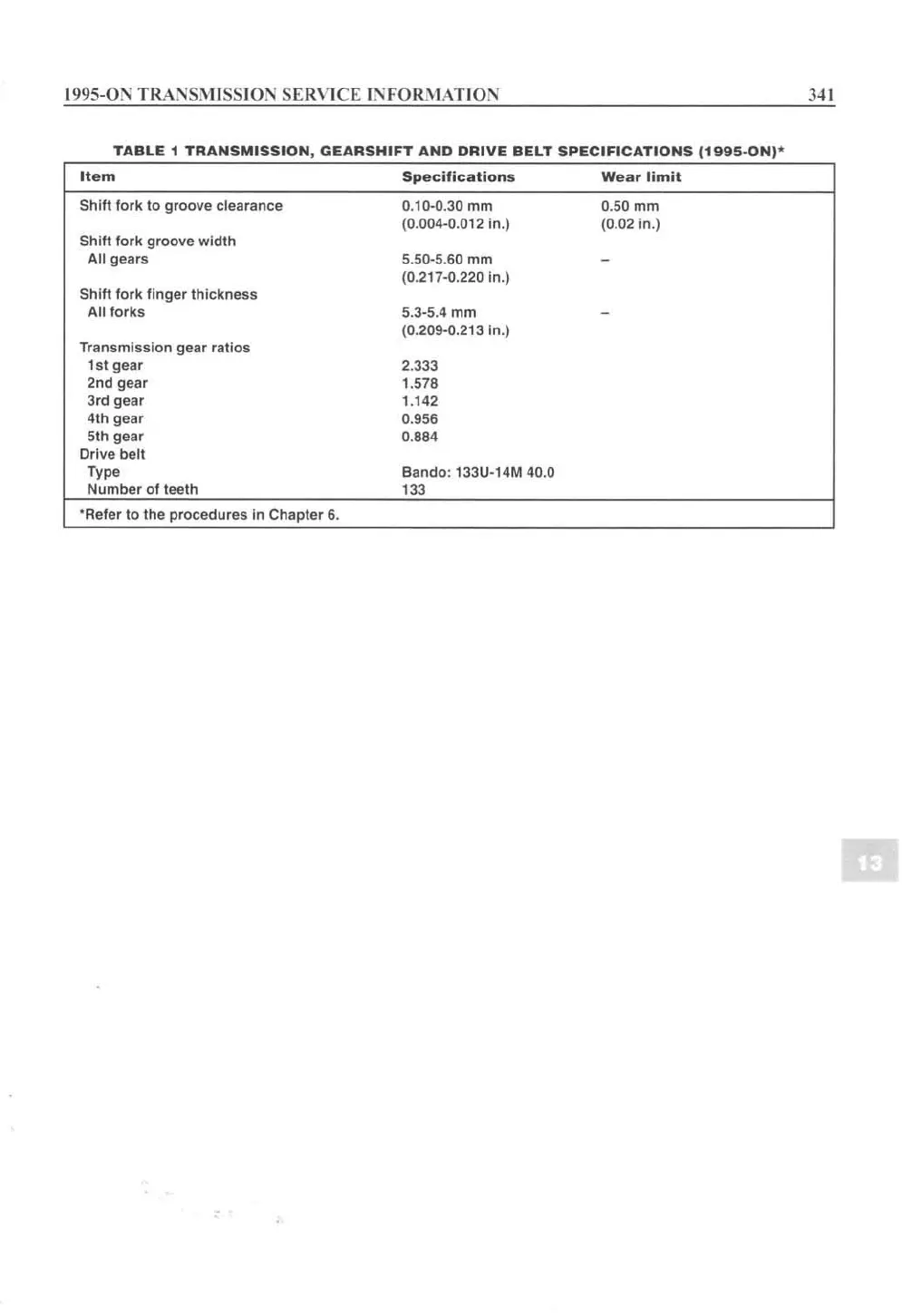

1995-0N TRANSi\IISSION SERVICE INFORMATION 341
TABLE 1 TRANSMISSION GEARSHIFT AND DRIVE BELT SPECIFICATIONS (199S·0N)* ,
Item Specifications Wear limit
Shift fork to groove clearance
0.10-0.30 mm 0.50 mm
(0.004·0.012 in.) (0.02 In.)
Shift
fork groove width
All gears 5.5().5.60 mm
-
(0.217·0.220 in.)
Shlflfork linger thickness
Alilorks
5.3·5.4 mm -
(0.209·0.213 In.)
Transmission gear raUos
1st gear
2.333
2nd gear 1.518
3rd gear
1.142
4th gear
0.956
5th gear
0.884
Drive belt
Type Bando : 133U-14M 40.0
Number of teeth
133
'Reier to the procedures In Chapter 6.
II

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
