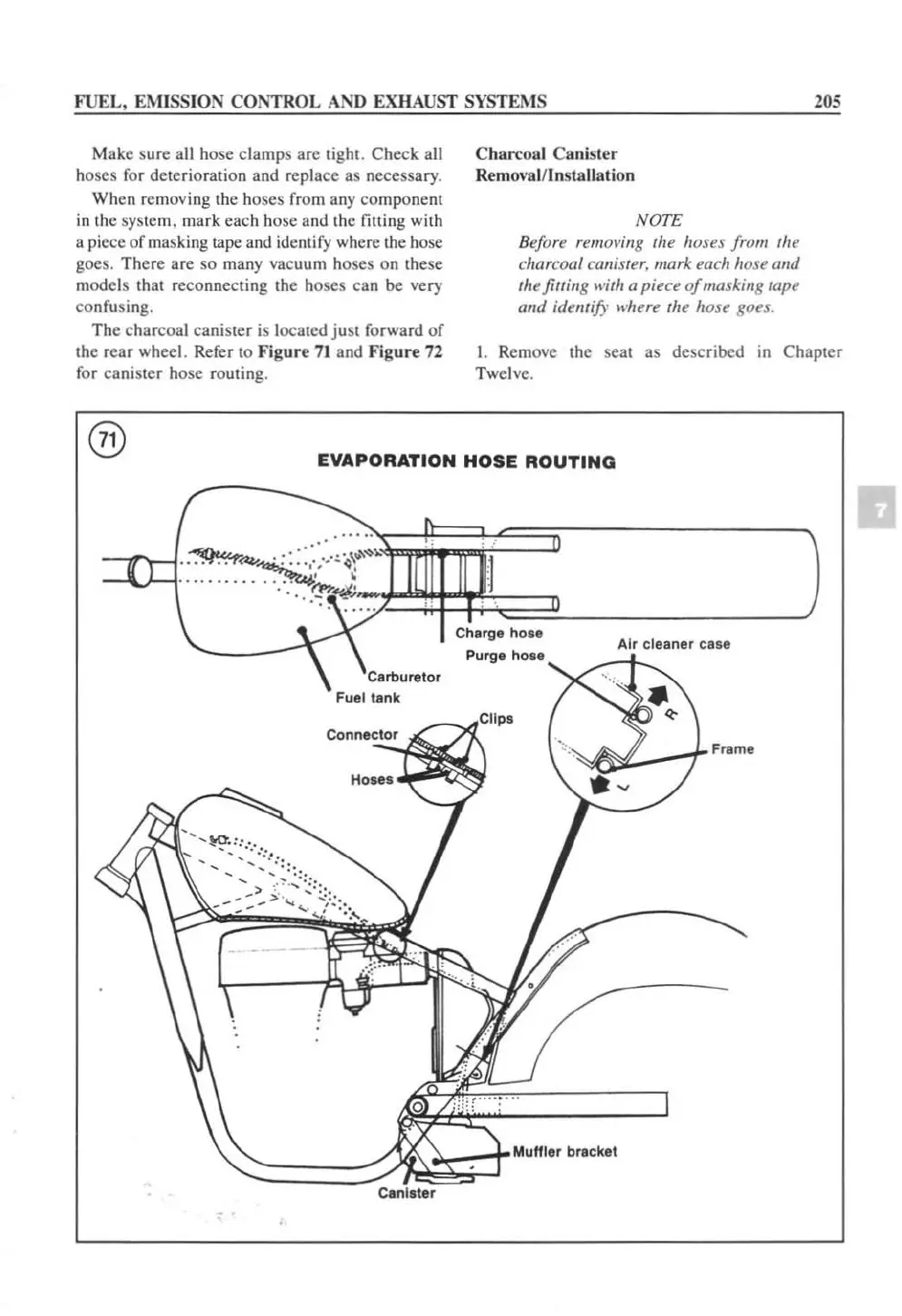

FUEL, EMISSI ON COl'r.'T ROL AND EXHAUsr SYSTEMS
Make sure a ll hose clamps are tight. Check all
hoses
fo r deterioration and replace as necessary.
When removing the hoses from any component
in the sys tem. mark each hose and the fining with
a piece of masking
tape and id entify where the ho se
goes. There are so many vacuum hoses on these
models that reco
nn ecting the hoses can be very
confusing.
Charcoal Ca ni ster
Removal/ In sta ll ation
NOTE
Before remOl'i"g /he ho ses from the
charc(}{11 canister. mark each hose and
the fitting with a piece of masking tape
and
idemify where the hose goes.
205
The charcoal canister is located just forward of
the rear wheel. Refer
to fig ur e 71 and Figure 72
for canist er hose routing.
I. Remove the seat as described in Chapter
Twelve.
EVAPORATION HOSE ROUTING
~ .... ~~~~, +;;~~==D------ -l
......"....-4 .... .. ~ ;. -', 'J
-"-''-1 .......... " .. :. "":.,;(;~7-~~:j$~~~ ________ ..J
'.- .
.,
Charge hO le
Purge
Carburetor
Fuel tlnk
Ai r cleaner case
''' ~~~ __ 7F rame
::::::====:::~~~~;;::t Muffler bracket

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
