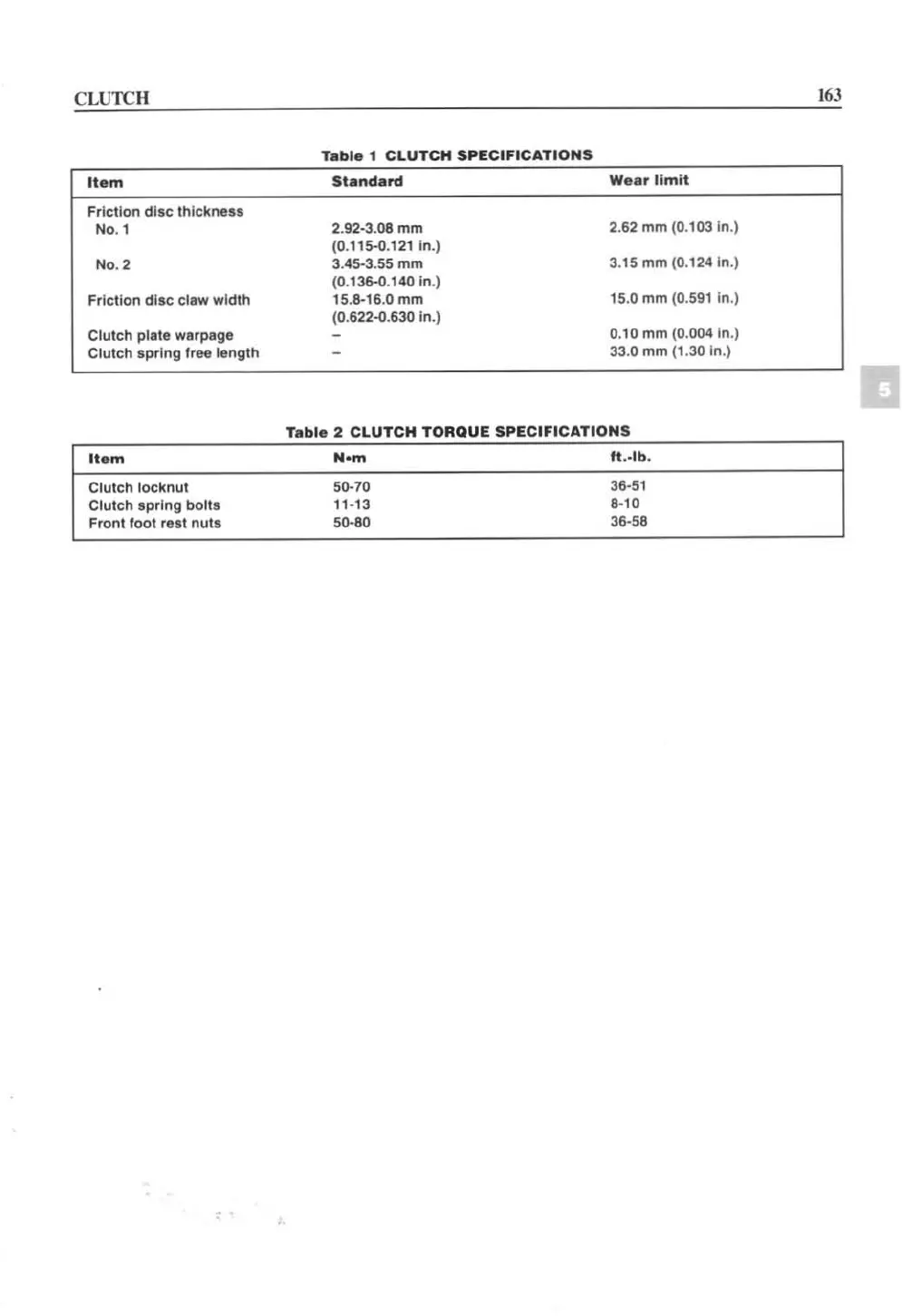

CLUTCH
It em
Fricllon disc thickness
NO. 1
No.2
Friction disc claw width
Clutch plate warpage
Clutch sp r ing Iree length
It em
Clutch locknut
Clutch spring bolls
Front loot rest nuts
,
Ta bl e 1 CLUTCH SPECIFICATION S
2.92-3. 08 mm
(O.115-0.121 in.)
3. 4S·3 .S5 mm
(0.136-0.140 in.)
15.8-16.0 mm
(O .622.().630 In.)
W e.r li m it
2.62 mm (0.103 In.)
3.15 mm (0.124 In.)
15 .0 mm (0.591 In .)
0.
10 mm (0. 004 In .)
33.0
mm (1 .30 In .)
Ta ble 2 CLUTCH TORQUE SPECIFICATIONS
50-70
11-13
50-SO
36-51
8·10
36-58
1 63

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
