ELECTRICAL
SYSTEM
®
~
1i
~~
9 8 1
6
4
5
11
10
233

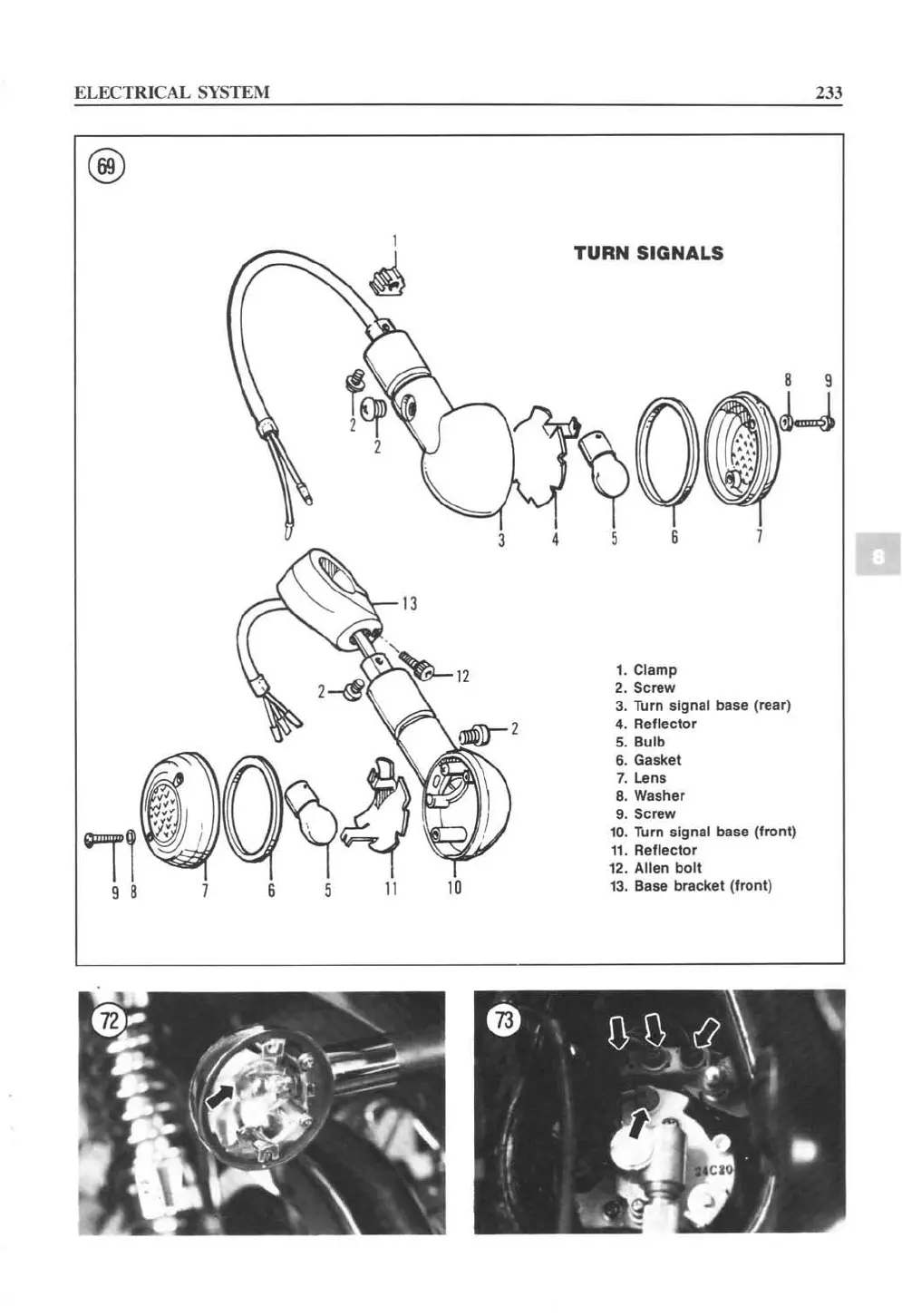

TURN
SIGNALS
8 9
5
6
1.
Clamp
2.
Screw
3.
Turn signal base (rear)
4.
Reflector
S. Bulb
6.
Gasket
7.
Lens
8.
Washer
9.
Screw
10
.
TlJrn
signal
base (front)
11
.
Reflector
12
.
Allen
bolt
13
. Base
bracket
(f
ronl)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki LS650 Savage and is the answer not in the manual?

Suzuki LS650 Savage Specifications

General IconGeneral
Displacement652 cc
Bore x Stroke94.0 mm x 94.0 mm
Compression Ratio8.5:1
Fuel SystemCarburetor
IgnitionElectronic ignition (CDI)
Transmission5-speed constant mesh
Final DriveBelt
Front BrakesSingle disc
Rear BrakesDrum
Front Tire100/90-19
Rear Tire140/80-15
Front SuspensionTelescopic
Rear SuspensionSwingarm type, coil spring, oil damped
Seat Height700 mm (27.6 in)
Overall Length2180 mm
Ground Clearance140mm (5.5 inches)
Engine Type4-stroke, air-cooled, SOHC
Wheelbase1480 mm
