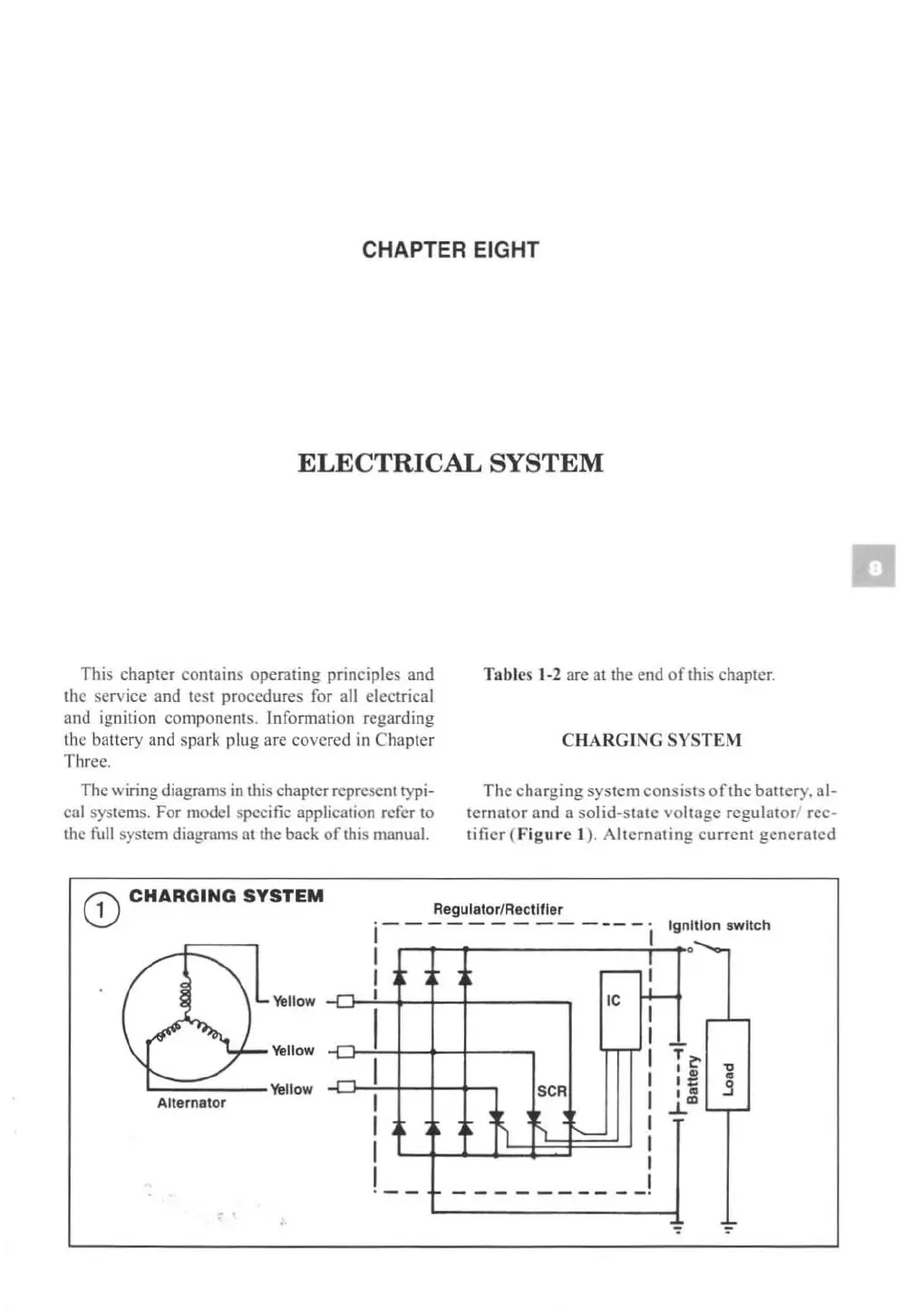

CHAPTER EIGHT
ELECTRICAL SYSTEM
This chapler contains operating principles and
the service and
le SI procedures for all eleclrical
and ignition components. Infonnation regarding
the battery and
spark plug are covered in Chapter
Three.
The wiring diagrams in this chapter represent typi-
cal systems. For model specific application refer to
the full system diagrams althe back of thi s manual.
Tabl('s 1-2 arc althe end of this chapler.
C HAR GING SYSTEM
The charging system consists oflhe baltery. al-
ternator and a solid-slale voltage regulator rcc-
tifier ( Figure I). Alternating current generated
CD CHARGING SYSTEM
Regulator/Reclllier
- - -- - - - -- -.- - i Ign~~On swItch
L... Yellow -l:~.;-+--+ -t------,
~c:::=:=::::.. __ Yellow
Yellow
Allarn.tor
seR
'--.:
Ie "I
I
I T ~
' .
I I Z
I
"
..L
m
I
I
I
I
~
•
.s
II

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
