18

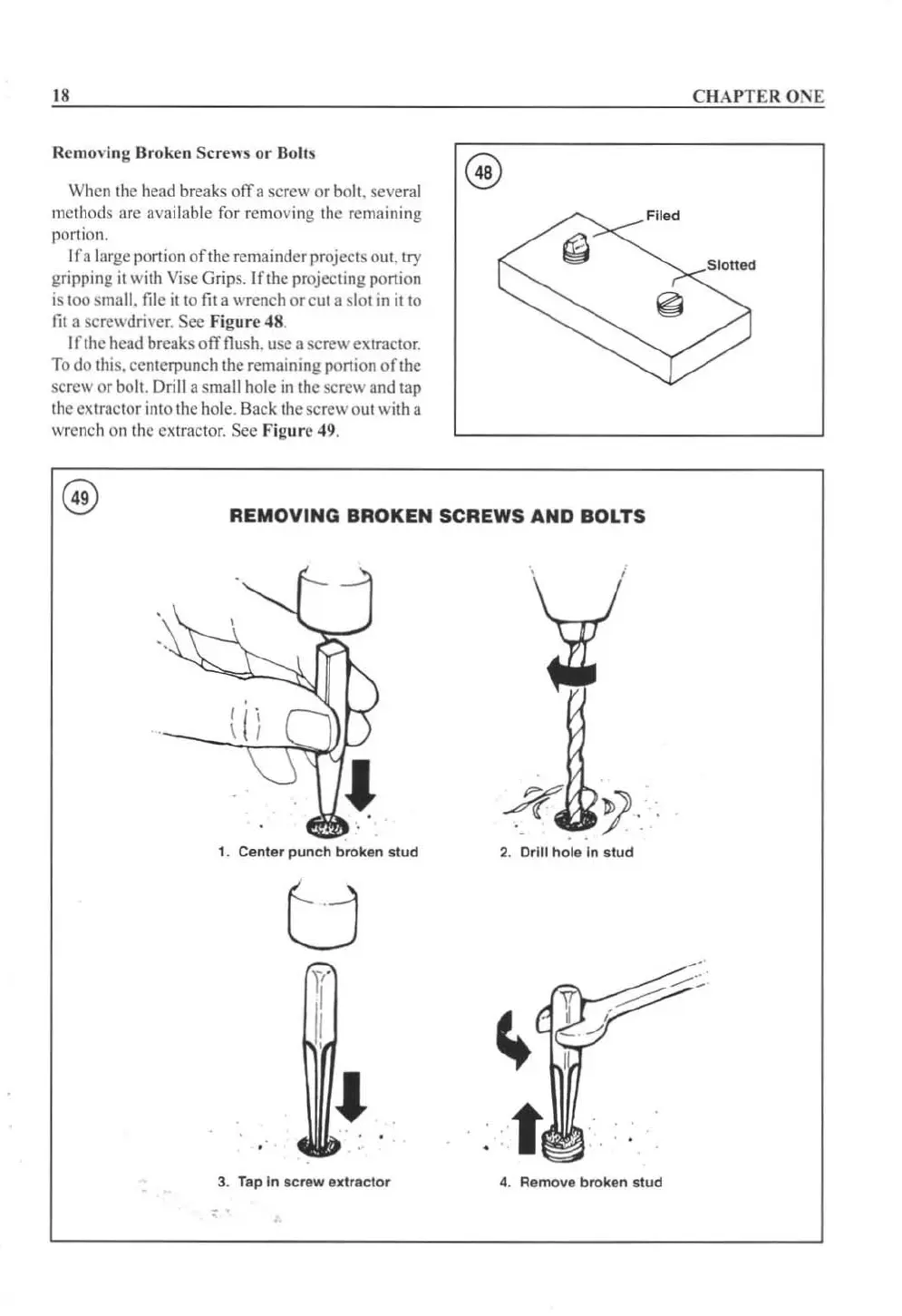

Re mo ving Broken Screws or 80lts
When th c head breaks off a scr ew or bo l t. several
methods
arc available for removing the remaining
p
onion.
If a large portion orlhc remainder projects oul. try
gripping
it wit h Vise Grips. Ifthc projecting ponion
is 100 small. file il iO fit a wrench orcu\ a slot in ill O
fit a screwdriver. Sec Fig ure 48 .
I fthc head breaks offfl ush. usc il scr ew extractor.
To
do thi s. ccntcrpunch the remaining portion or t he
scr ew or boll. Drill a small hole in the screw and tap
the
extroctor into thc hol c. Ba ck the screw o ut with a
wrench
on thc extractor. Sec Figure 49.
Filed
REMOVING BROKEN SCREWS AND BOLTS
1. Center punch broken stud
2. Drill ho le In stud
3. Tap In screw axlrlclor 4. Remo ve broken stud
,
C I-I APTER ONE
Slotted

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
