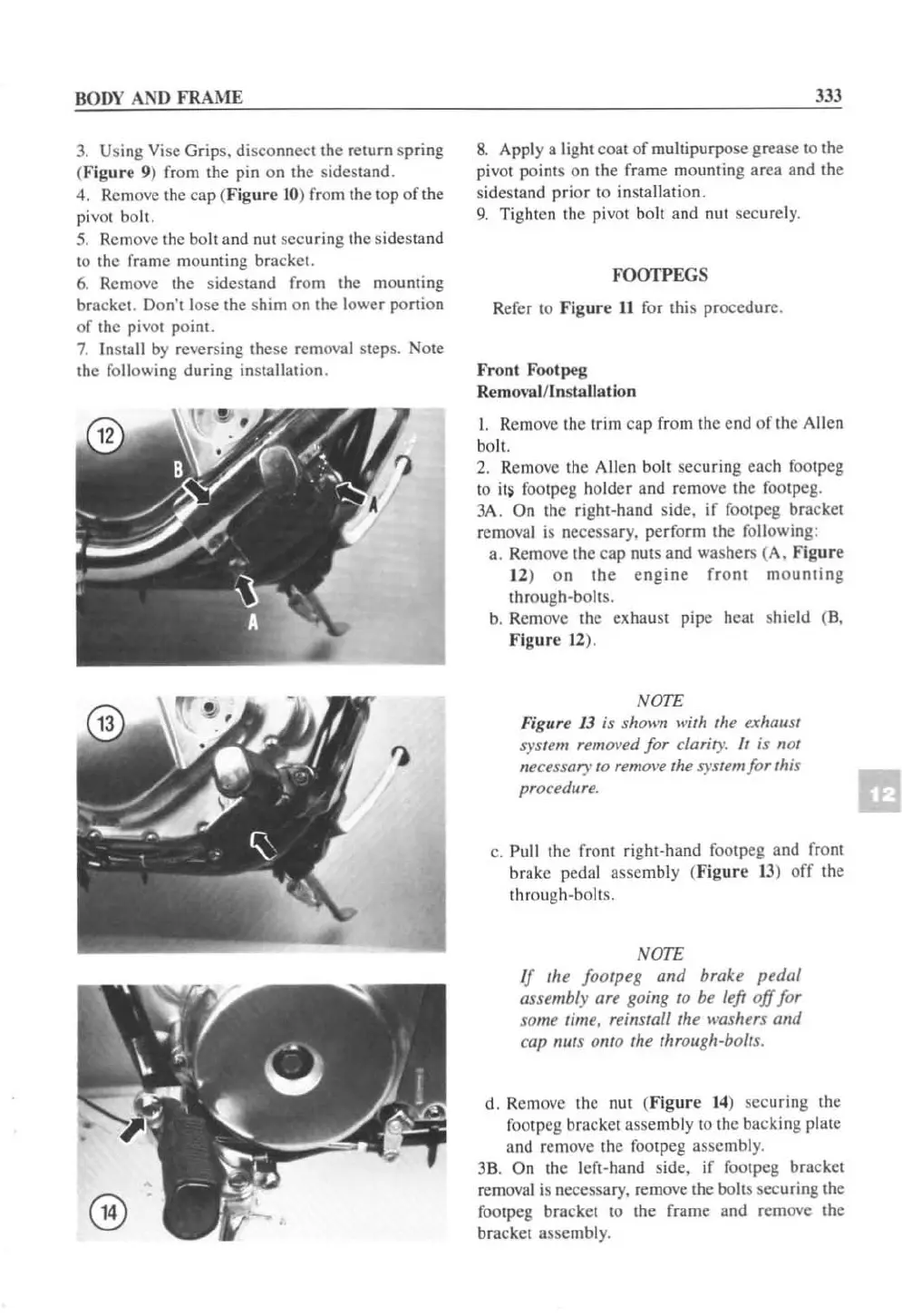

BODY AND
FRAME
3.
Using Vise Grips. disconnect the return spring
(Fig
ur
e 9) from the pin
on
the sidestand.
4. Remove the cap (Fig
ur
e
10
) from the top
of
the
pivot
bah
.
5. Remove the bolt and nut securing the sidestand
to the frame mounting brackel.
6. Remove the s
id
estand from the mounting
bracket. Don't l
ose
the shim on the lower portion
of the pivot point.
7.
Install by reversing these removal steps. Note
the following during installation.
®
JJJ
8.
Apply a light coat
of
multipurpo
se
grease to the
pivot points on the frame mounting area and the
sidestand prior to
in
stallation.
9.
Tighten the pivot bolt and nut securely.
FOOT
P
EGS
Ref
er
to Fig
ur
e
11
for this procedure.
Front
Footpeg
Removal/Insta
ll
ation
1. Remove the trim cap from
th
e end
of
the Allen
bolt.
2. Remove the Allen bolt securing each foolpeg
to
it~
footpeg holder and remove the footpeg.
3A.
On the right·hand side.
if
foot peg bracket
removal is necessar
y.
perform the following:
a. Remove the cap nuts and washers (A, Figure
12)
on
Ihe e
ngine
front
mounting
through-bolts.
b. Remove the exhaust pipe
heal shie
ld
(
B,
Fig
ur
e 12).
NOTE
Figure 13 is shown
wirh
rhe
e.thausr
sys
rem
remo\'ed for clarify.
Ir
is nor
necessary
10
remo\'e the sys
rem
for
rhis
procedure.
C.
Pull the front right-hand footpeg and fron!
brake pedal assembly (t-ig
ur
e 13)
off
the
th
rough-bolts.
NOTE
If
rh
e foorpeg
and
brake
pedal
assembly are going
to
be left
off
for
some
rime.
reinstall
rhe
washers and
cap
nuts onto the through-bolrs.
d.
Remove the nut (Fig
ur
e
14
) securing the
footpeg bracket assembly
to the backing plate
and remove
Ihe footpeg assembl
y.
38.
On the left-hand side,
if
foolpeg bracket
removal
is
necessary, remove the bolts securing
Ih
e
foolpeg bracket to the frame and remove the
bracket assembly.
