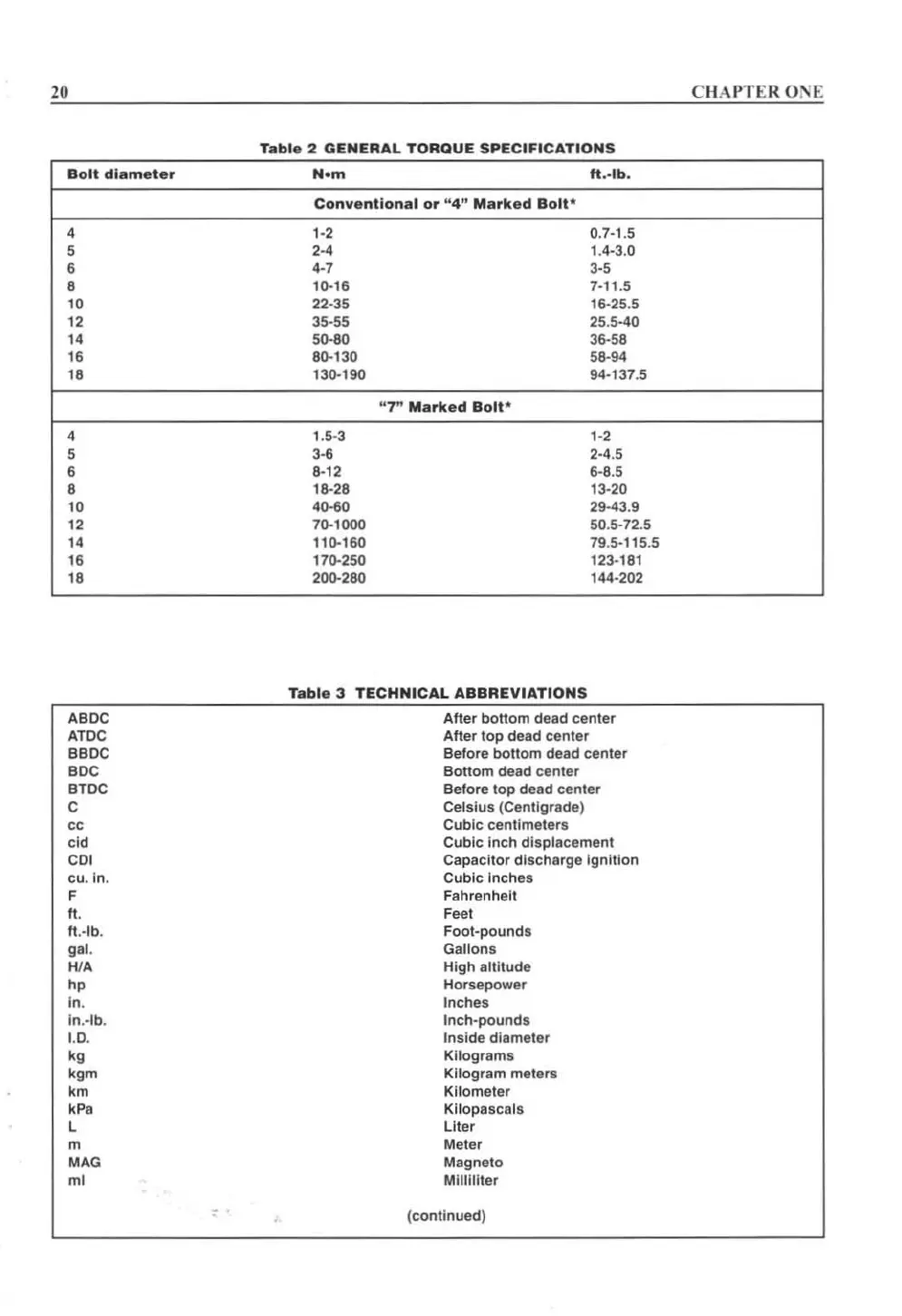

Table 2 GENERAL TORQUE SPECIFICATIONS
Nom
ft.-lb.
Conventional or "4" Marked Bolt "
1-2 0. 7-1 .5
2-4 1. 4·3.0
4-7 3-5
10-16
7-11.5
22·35 16·25.5
35-55
25.5-40
50-80
36-58
80-130 58· 94
130-190 94-137.5
" 7" Marked Bolt"
1.5-3 1-2
3-6
2-4.5
8-12 6-8.5
18-28
13-20
40-60
29-43.9
70-1000
50.5-72.5
ltO-I60 79.S·11S.S
170-250
123,'81
200-280
144-202
Table 3 TECHNICAL ABBREVIATIONS
After bonom dead center
After lop dead center
Before bottom dead center
Bottom dead center
Before top dead center
Celsius (Centigrade)
Cubic centimeters
Cubic Inch displacement
Capacitor discharge Ignition
Cubic Inches
Fahr
enheit
'~I
Foot-pounds
Gallons
High altitude
Horsepower
Inches
Inch-pounds
Inside diameter
Kilograms
Kilogram meters
Kilometer
Kllopascals
Uter
Meter
Magneto
Milliliter
( continued)
CHAPTF.:RONE

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
