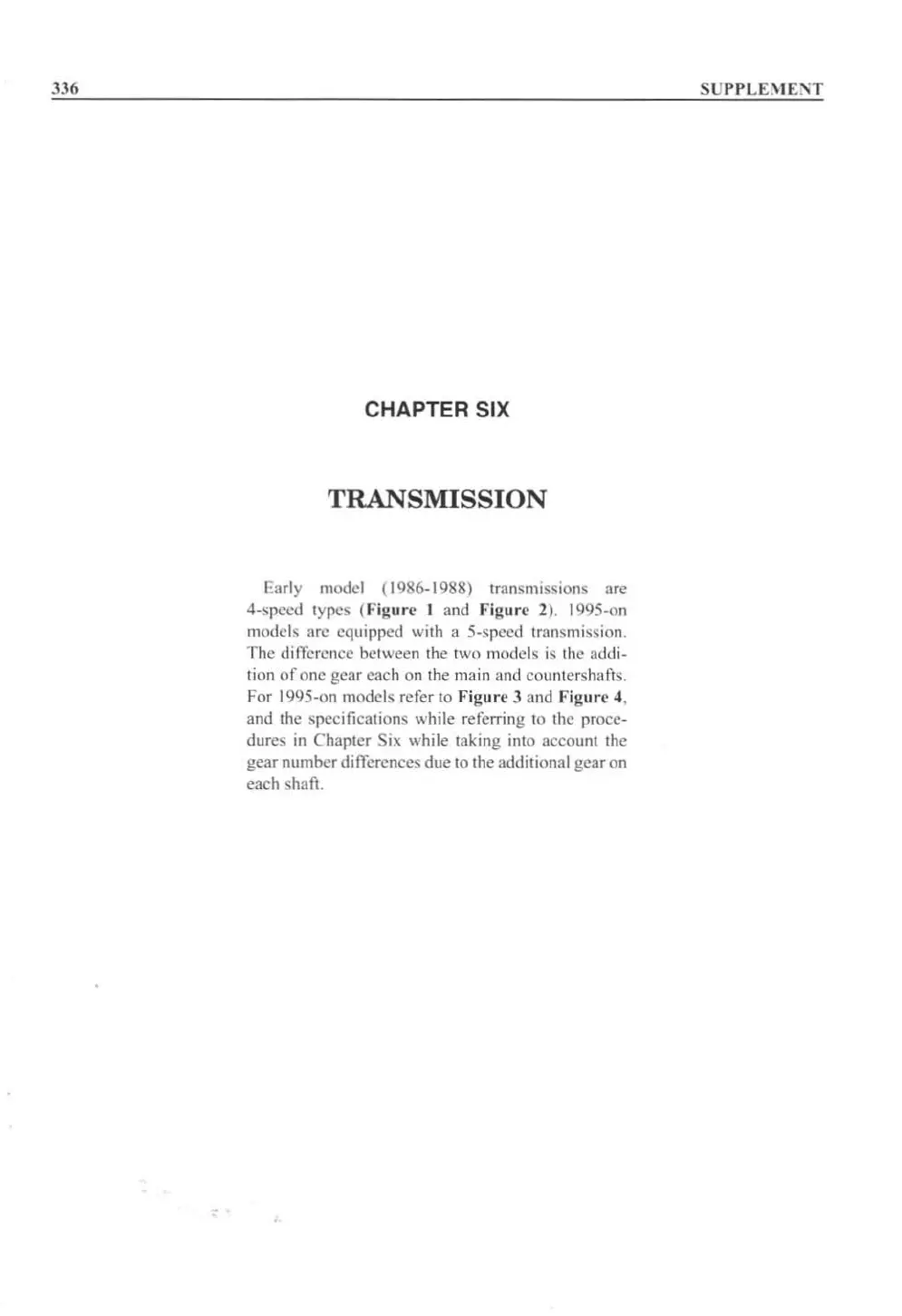

CHAPTER SIX
TRANSMISSION
Early model (1986·1988) transllllSSlons arc
4-spccd types (Figure 1 and Figure
2), 1995-on
models arc equipped with :t 5-spccd transmission.
The difference between the two models is Ihe addi-
tion of one gear each on the main and counlcrshafts.
For 1 995-on models refer
10 Figur e 3 and Figure 4.
and the specifications while referring
10 the proce-
dures in Chapler Six while taking into :lceounl the
gear numbcrdiffcrcnccs due to the additional
geaTon
each shaft.
SU PPL [M[~T

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
