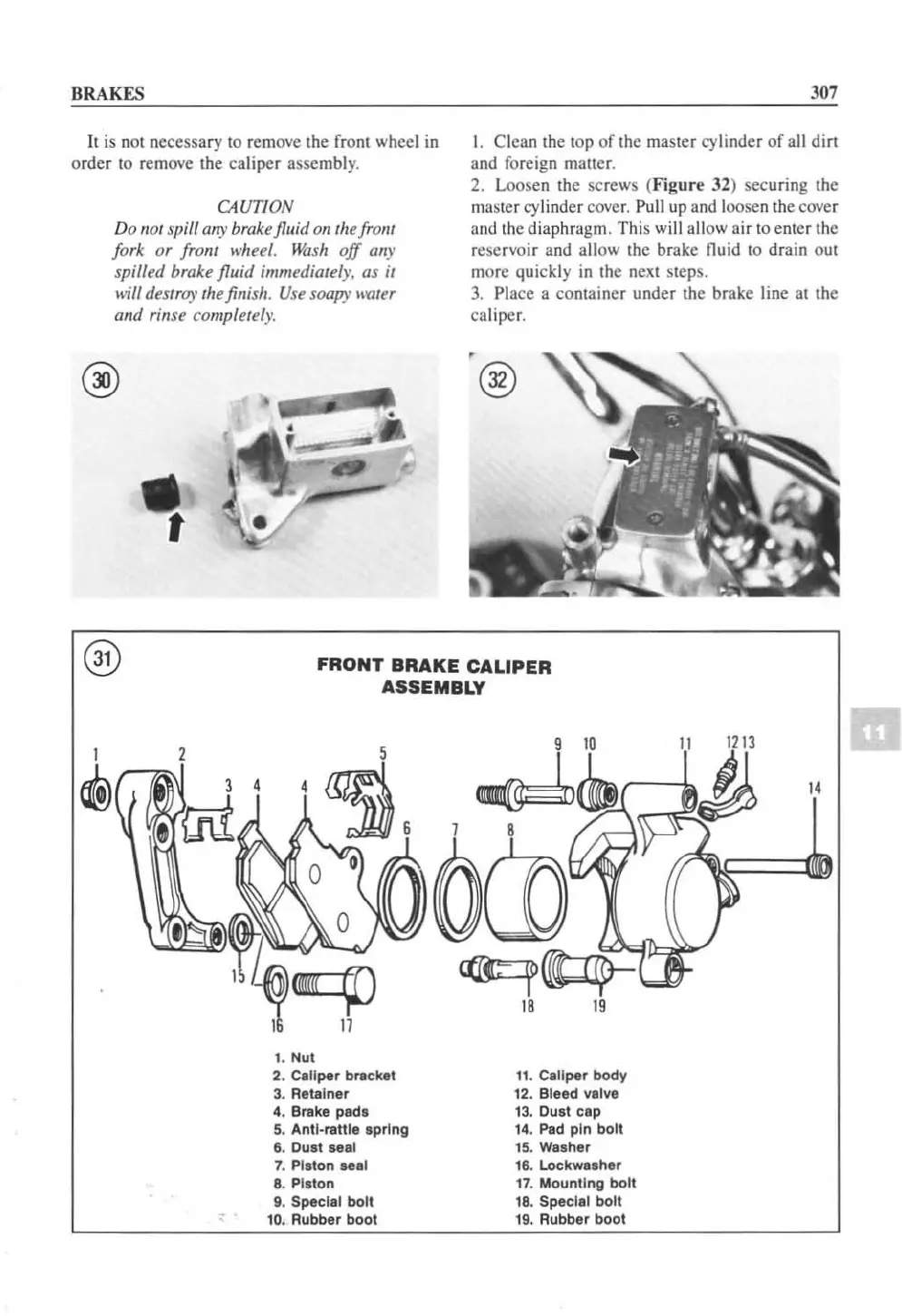

BRAKES
It is not necessary 10 remove the front wheel in
order to remove the caliper assembl y.
CAUTION
Do 1101 SI)iIf any brake fluid on the from
fork or from wheel. Wa sh off any
spilled brake fluid immediately, as
it
will destroy the finish. Use soapy water
alld rinse completely.
307
I. Clean the lOp of the master cylinder of all dirt
and foreign mailer.
2. Loo se n the sc rews (Figure 32) secu rin g the
master cyli nd er cover. Pull up and loosen th e cover
and the diaphragm. This will allow air to enter the
reservoir and allow the brake
fluid to drain oul
more quickly
in the next steps.
3. Place II container under the brake linc a! the
caliper.
FRONT BRAKE CALIPER
ASSEMBLY
1. Nut
2. Caliper bracket
3. Retainer
4. Brake pads
5. Antl·rattle .p rlng
6. Dust seal
7. Plalon •• at
8. Pla ton
9. Special bolt
10, Rubber boot
11 . Caliper body
12 . Bleed valve
13. Dust cap
14. Pad pin bolt
15 . Walher
16. LockwlSher
17 . Mou nting bolt
18 . Special bolt
19. Rubber bo ot

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
