326
CHAPTER ELEVEN

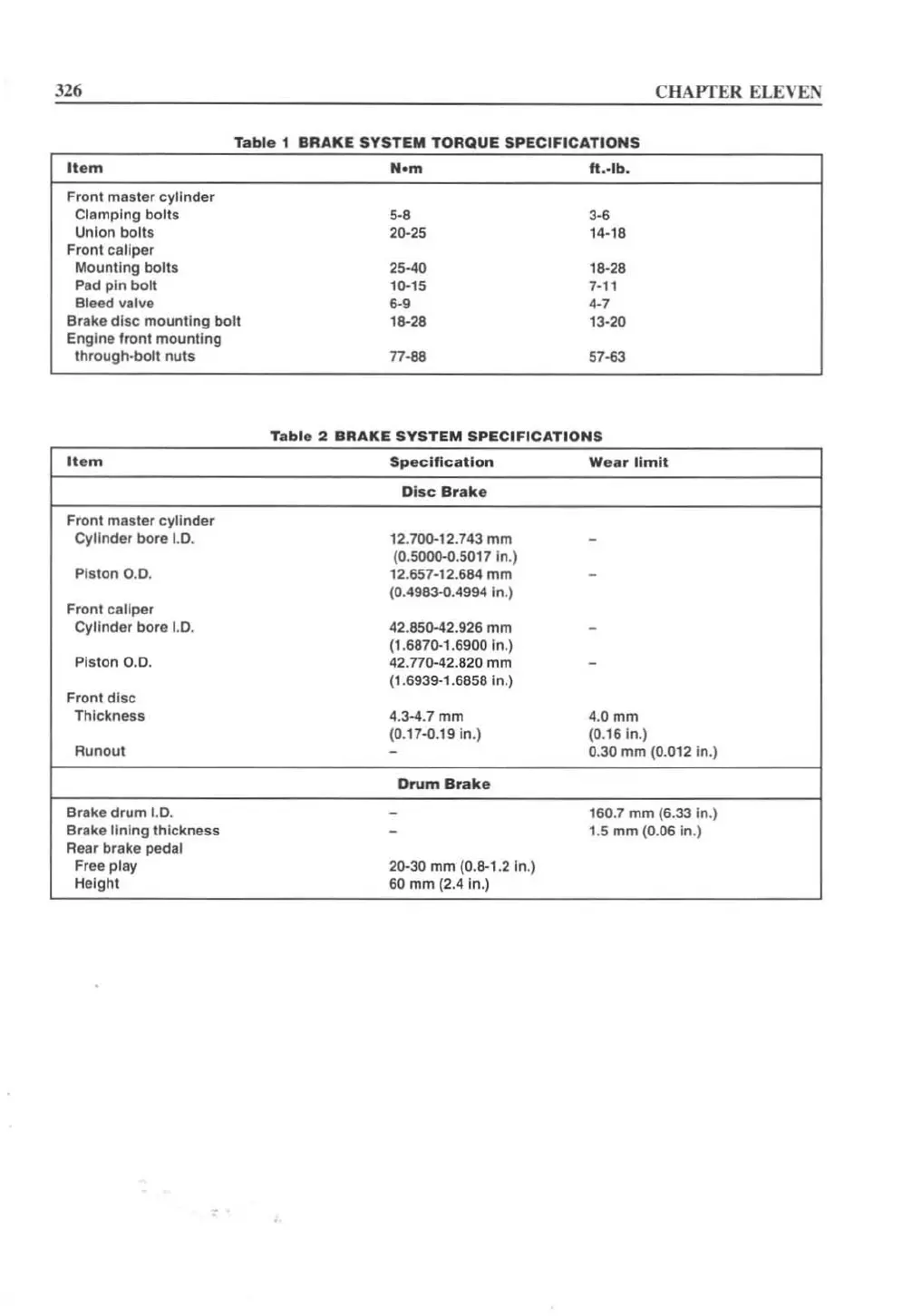

Tabl e 1 BRAKE SYSTEM TORQUE SPECIFICATIONS
Item
Nom
ft.-lb.
Front master cylinder
Clamping bolts
5·8
J.,
Union bolts 20-25 14-18
Front caliper
Mounting bolts
2540 18·28
Pad pin bolt 11)-15
7-"
Bleed valve
,.g
4·'
Brake disc mounllng bolt
18-28
13·20
Engine Ironl mounting
through·bolt nuls
,,-88
57-63
Table 2 BRAKE SYSTEM SPECIFICATIONS
Item
Sp eci fication We.r limi t
Di sc Brak e
Front masler cylinder
Cylinder bore 1.0 .
12 .700-12.743 mm
-
(0.500I).(I.5017 In.)
Plslon 0 .0. 12.657-12.684 mm
-
(0.4983-0.4994 in.)
FrOn! caliper
Cylinder bore 1 .0. 42.85Q-42.926 mm
-
(1 .687()'1.6900 In .)
Piston 0.0.
42.nD-42.B20 mm
-
(1,6939-1,6858 in .)
Front disc
Thickness 4.3-4 .7 mm
4.0mrn
(0.17-0.19 in.) (0.16 in.)
Runou! - 0.30 mm (0.012 In.)
Drum Brak e
Brake
drum 1.0.
- 160.7 mm (6.33 In.)
Brake lining thickness
- 1.5 mm (0.06 in.)
Rear brake
pedal
Free play 20-30 mm (0.8-1.2 In.)
He ight 60 mm (2.4 in.)

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
