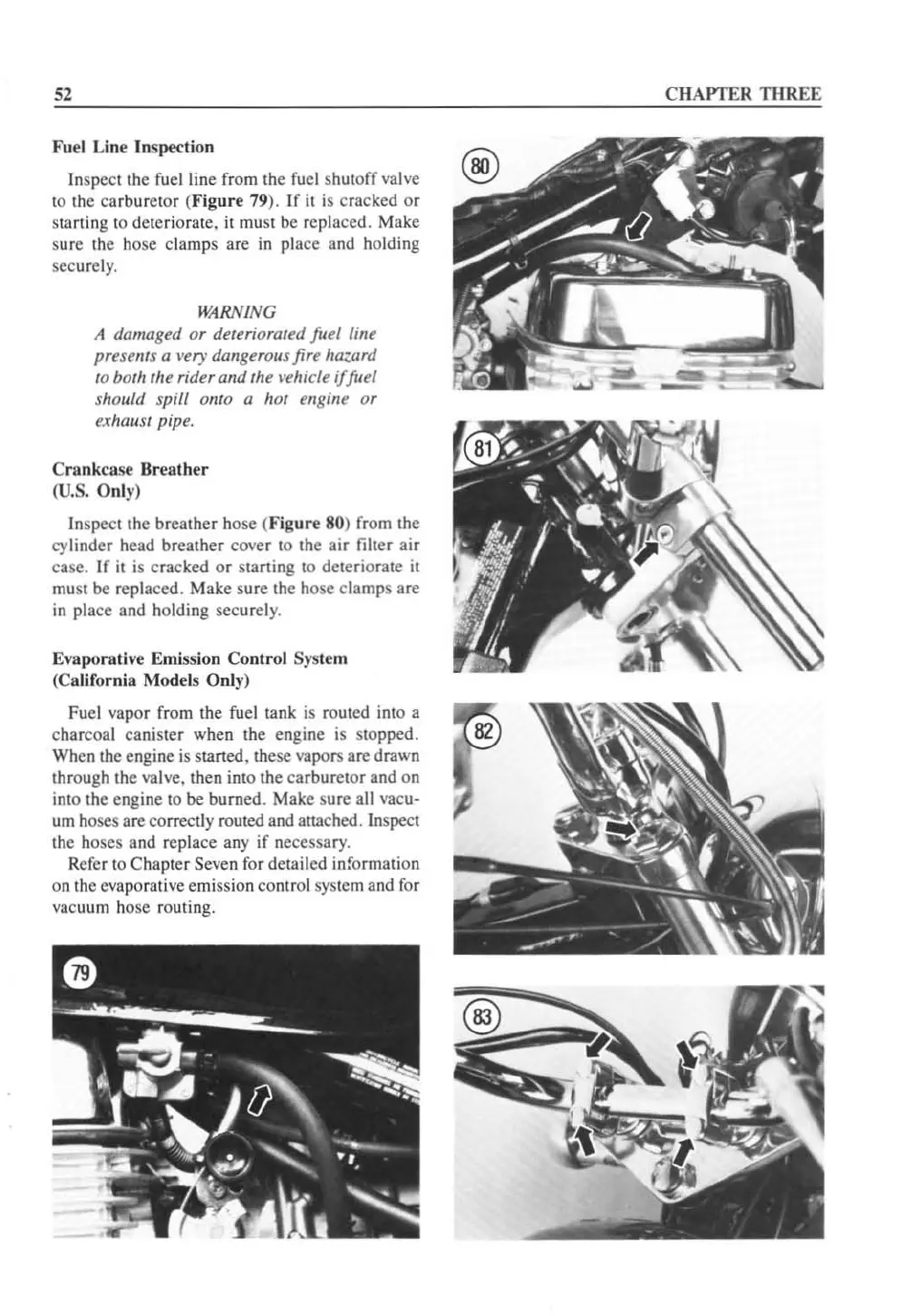

Fuel Line lnspet:tion
In spect the fuellioe from the fuel shutoff va l ve
10 the ca rburetor ( Figure 79). If it is cracked or
starting to deteriorate,
it must be replaced. Make
sure
th e hose clamps are in place and holding
sec urel y.
WARNING
A damaged or deteriorated fuel line
presenls a l'ery dangerousJire hazard
10 borh the rider and the w!hicle if fuel
should spill onto a hot engine or
exhaust pipe.
Cra nkcase Breather
(U.S. Only)
In spect the breather hose (Figure 80) from the
cy linder head breather cove r to the ai r filter air
casco If it is cracked or starting 10 deteriorate it
must be replaced. Make su re the hose clamps are
in place and holding sec ur el y.
Evaporntive Em ission Contro l System
(California Models Onl y)
Fuel vapor from the fuel tank is routed into a
charcoal canister when the engine is stopped.
When the engine is sta ned. these vapors are drawn
through the valve, then into the carburet or and on
into the engine to be burned. Make sure all vacu-
um hoses are correctly rouled and attached. In spect
the hoses and replace any if necessary.
Refer 10 Chapter Seven for detailed information
on Ihe evaporative emission control system and for
vacuum hose routing.
