262
,
1 4-0 "
154.]
16"§
11--.
18---e
19 .......

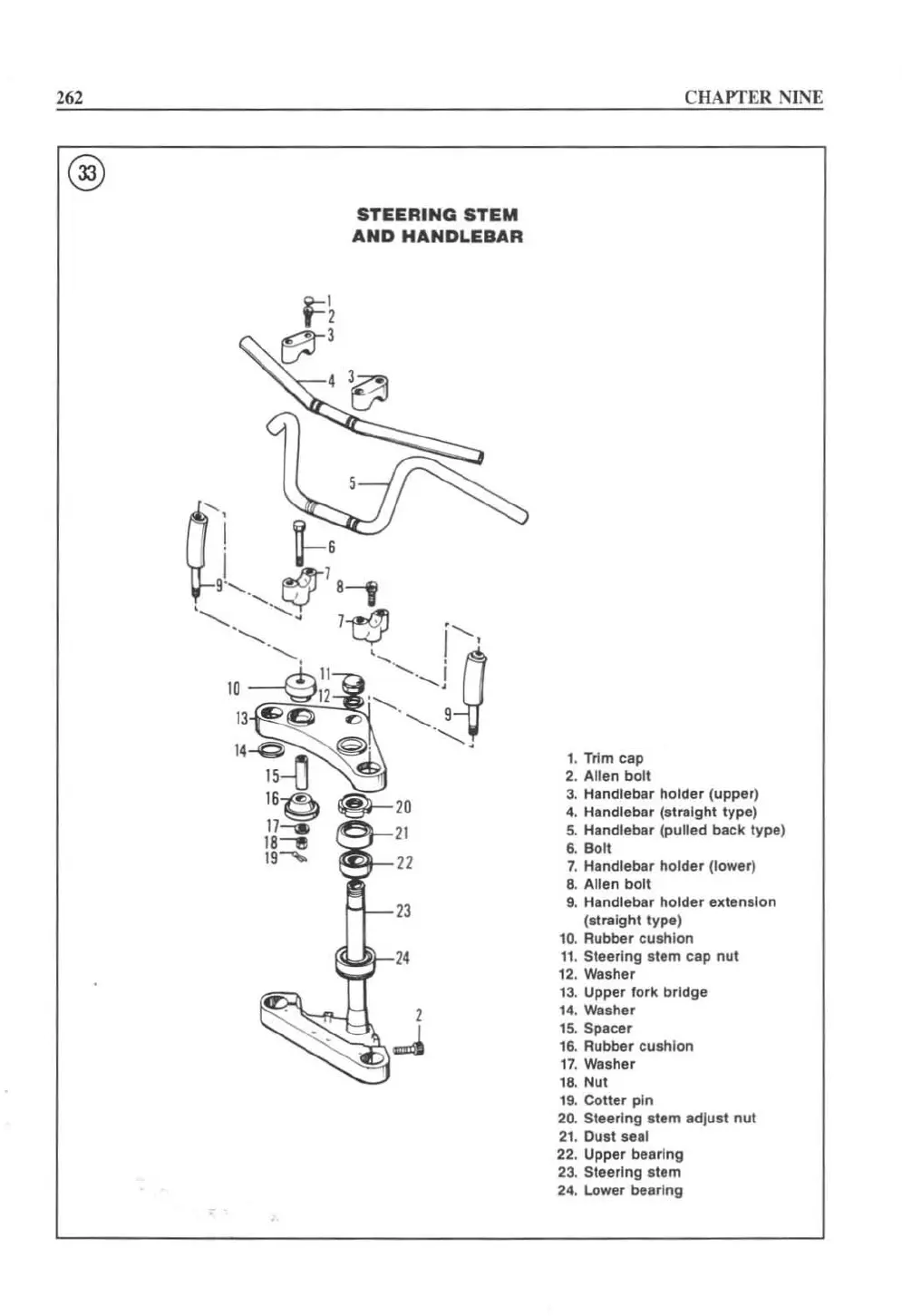

STEERING STEM
AND HANDLEBAR
(ell- 21
22
13
CHAPTER NINE
,. Trim cap
2. Allen bolt
3. Handlebar holder ( upper )
4. Handlebar (straight type)
5. Handlebar ( pulled back type)
6. Bolt
7. Handlebar holder (lower)
8. Allen bolt
9. Handlebar holder exlanllon
(straight type)
10 . Rubber cushion
11 . Sleering Item cap nut
12. Washer
13 . Upper lork bridge
14. Washer
15 . Spacer
16 . Rubber cushion
17. Washer
18. Nut
19 . Cotter pin
20. Sleering Item adjust nut
21. Duat seal
22 . Upper bearing
23. Sleering stem
24 . Lower bearing

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
