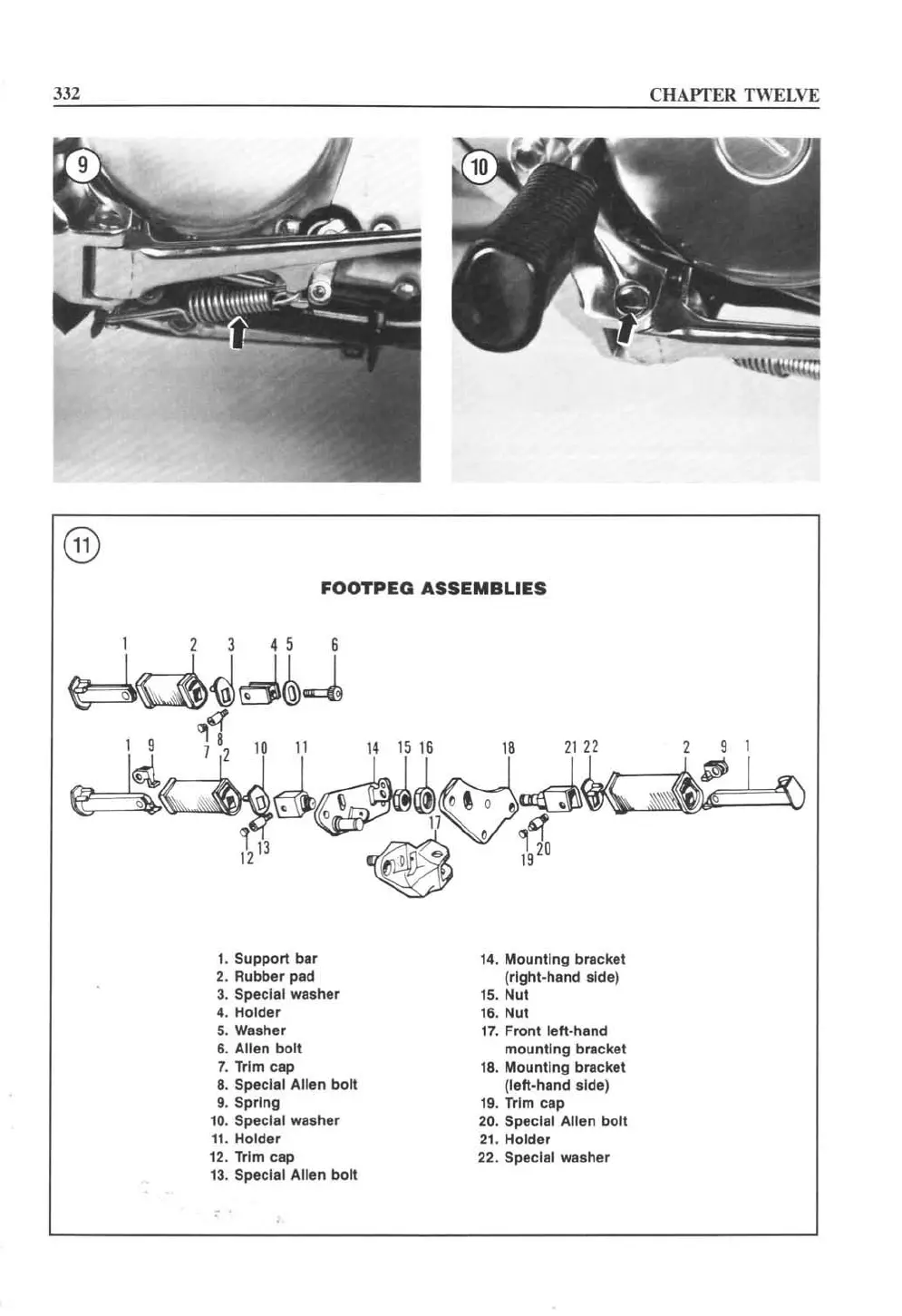

FOOTPEQ ASSEMBLIES
1. Support bar
2. Rubber pad
3. Special wIsher
4. Holder
5. Washer
6. Allen bolt
7. Trim cap
8. Special Allen bolt
9. Spring
10 . Special weiher
11 . Holder
12 . Trim cap
13. Special Allen bolt
14. Mounting bracket
(rlght ·hand side)
15. Nut
16. Nut
17. Front l eft-hand
mounting bracket
18. Mounting bracket
(left-hand side)
19. Trim cap
20. Special Allen bolt
21. Holder
22. Special Wisher
CHAPTER TWELVE

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
