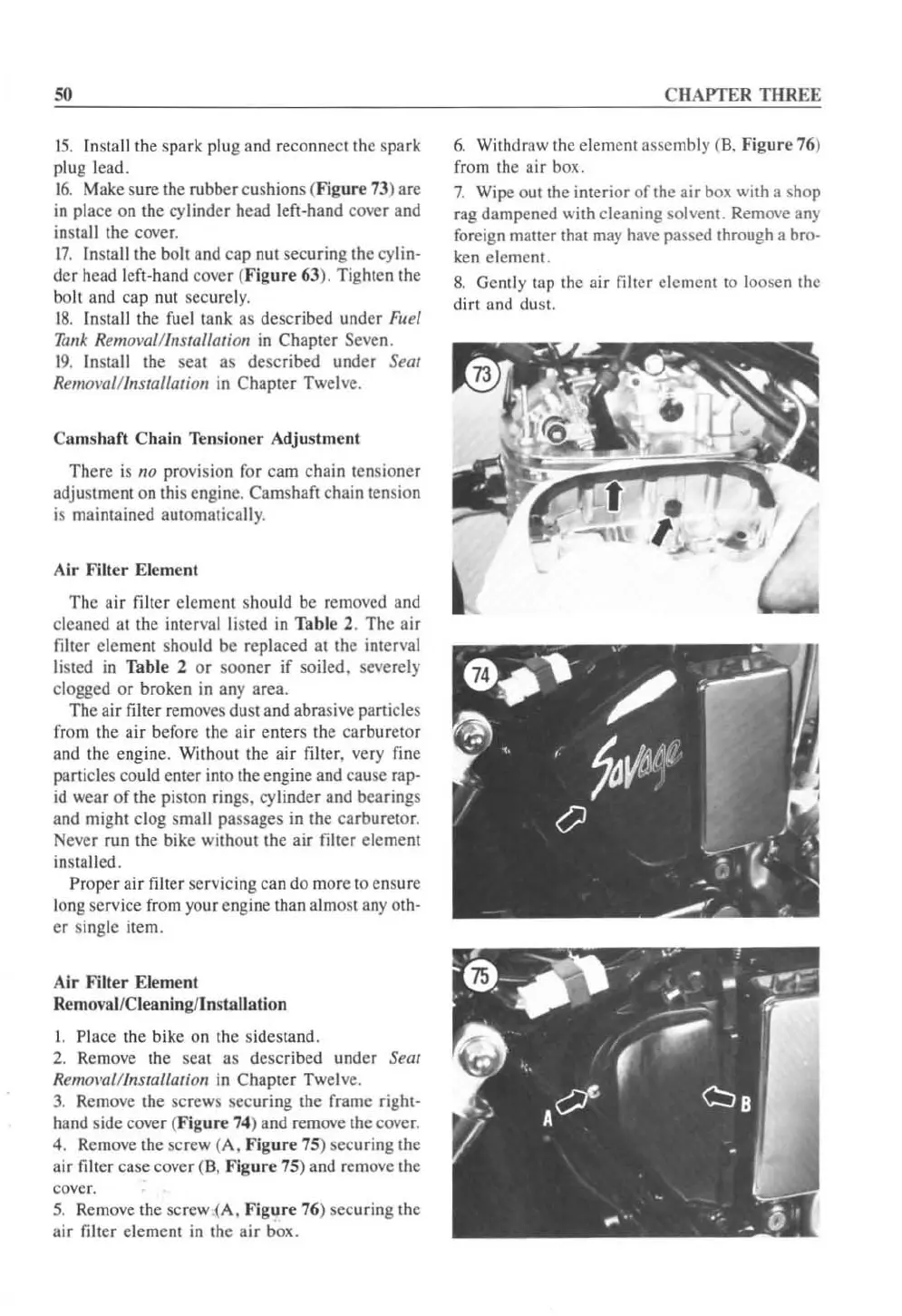

50
15
.
In
stall the spark plug and reconnect the spark
p
lu
g lead.
16
. Make sure the rubber cushions
(F
ig
ur
e 73) are
in place on the cylinder head
left·hand cO\'cr and
install the cover.
t7.
Install the bolt and
cap
nut securing the cylin-
der
head left-hand cover (
Figure
63). Tighten the
bolt and
cap
nut securel
y.
18
.
In
stall the fuel tank as
de
scribed
under
Fllel
Tank RemOl'al/lnstallation in Chapt
er
Seven.
19
.
In
stall
th
e seat
as
de
sc
ribed under
Sear
R
e
m
o~'a
l
/
l
n
s
ta
lla
ti
o
"
in
Chapler
Twelve.
Camshaft Chain Tensioner Adjustment
There is
ri
O provision for c
am
chain (cosio
ner
adjustment on this cngine. Camshaft chain tension
is maintained
8ulOmslically.
Air Filter Eleme
nt
The
air
filter cleme
nt
should be removed and
cleaned
at
the inter
val
listed in
Table
2.
Th
e
air
filter element should be replaced at the i
nt
er
val
li
sted in
Table
2 or
soo
ner
if
soiled. severely
clogged
or
broken
in
any area.
The
ai
r filter removes dust and abrasive particles
from the
air
before the air e
nt
ers the
car
bur
etor
and the eng
in
e. Without the
air
filter. very fine
particles co
ul
d enter into the engine and cause rap-
id
wear of the
pi
ston rings. cylinder and bearings
and might clog small passages
in
the
ca
rburetor.
Never run the bike without the
air
filter element
in
stalled.
Proper
air
fi
lt
er servi
ci
ng
can
do
more to ensure
long service from your engine than almost any
ot
h-
er
si ngle item.
Air
Filler
Element
Removal/Cl
ea
nin
g/
In
sta
llation
1.
Pla
ce
the bike on the sidestand.
2. Remove the scat as described under
Seal
Remol'Ull
ln
stallation
in
Chapter Twelve.
3. Remove the screws securing the frame
ri
ght-
hand side cov
er
(
Figure
74) and remove the cover.
4. Remove the screw (
A.
Figure
75) securing the
ai
r filter case cover (S.
Figure
75) and remove the
cover.
5. Remove the screw
(A.
Figure
76) securing the
air filt
er
element
in
the
air
box.
CHAPTER
THREE
6.
Withdraw the element assembly (
B.
Figure
76)
from the air box.
7.
Wipe out the interi
or of
the
air
box with a shop
rag dampened with cleaning
so
lvent. Remove any
foreign matt
er
that may have passed through a bro-
ken element.
8.
Gently tap the air filter element
10
loosen the
dirt
and dust.
