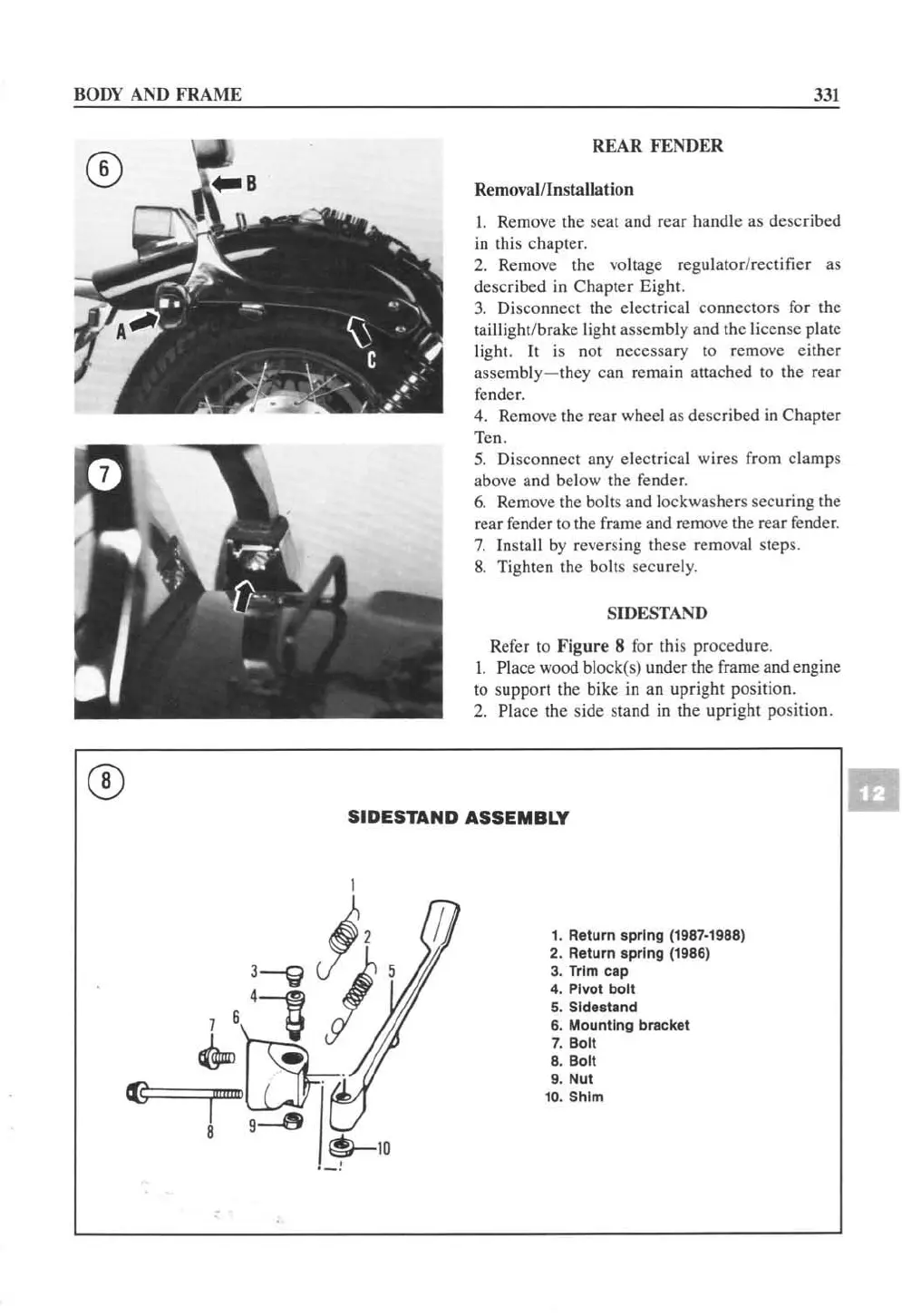

BODY AND FRAME
JJI
REAR FENDER
Removal/Installation
I. Remove the seat and rear handle as described
in this chapter.
2. Remo ve the vo ltage regulator/rectifier as
described in Chapter Eight.
3. Di sco nn ect the electrical connectors for the
taillight/brake light assembly and the license plate
light. It is not necessary to remove e ith er
assembl y-they can remain anached to the rear
fe nder.
4. Re mov e the rear wheel as described in Chapter
Ten.
S. Disconnect any electrical wires fr om clamps
above and bel ow the fe nd er.
6. Remove the bol ts and lockwashers securing the
rear fender to the frame and remove the rear fender.
7. In stall by reversing these removal step s.
8. Ti g ht en the bol ts secur ely.
SIDESTAND
Ref er to Figure 8 fo r this procedure.
I. Place wood block(s) under the frame and engine
to support the bike in an upright position.
2. Place the s id e stand in the up ri ght position.
SIDESTAND ASSEMBLY
1. Return spring (1987-1988)
2. Return spring (1986)
3. Trim cap
4. Pivot bolt
5. Sidestand
6. Mounting bracket
7. Bolt
8. Bolt
9. Nut
10 . Shim
II

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
