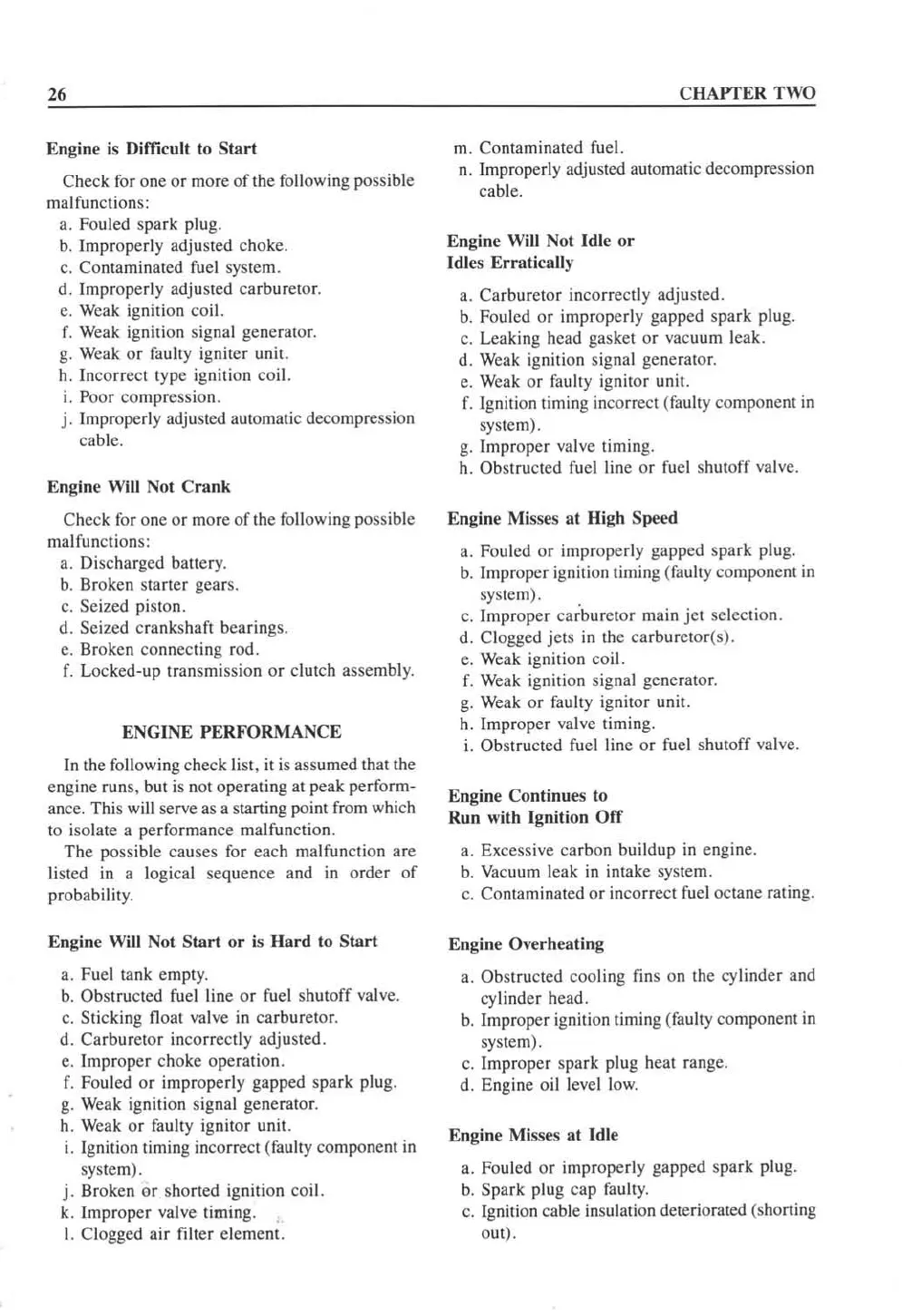

Suzuki LS650 Savage User Manual

26
Engine is Difficult to Start
Check for one or more oflhe follow in g possible
malfunctions:
a. Fouled spark plug.
b. Improperly adjusted chok e.
c. Contaminated fuel system .
d. Imprope
rl y adjusted carburetor.
c. Weak ignition coil.
f. Weak ignition signal generalOr.
g. Weak or faulty
ig ni ter un it.
h. In correct type ignition coil.
i. Poor compression.
j. Improperly adj usted a ut omatic decompression
cable.
Engine Will Not Crank
Ch ec k for one or more of lh e fo ll owing possible
malfun ct ions:
a. Di scharged battery.
b. Broken Slarter gcars.
c. Seized piston.
d. Seized crankshaft bearings.
c, Brok en conn ec ting rod.
f. Locked-up transmission or clutch assembl y.
ENGINE PERFORMANCE
In the following check li st, it is assumed that the
cngine runs, but is not operating at peak perform-
ance. This will serve as a stan ing po
in t from which
to isolate a pcrformance mal
fu nction.
Th e possible causes for each m alf un ction are
listed in a logical sequence and in order of
probabilit y.
Engine Will Not Start or is Hard to Start
a. Fuel ta nk empt y.
b. Obstructcd fu el line or fu cl shut off va l ve.
c. Sticking float valve in carb uretor.
d. Carburctor incorrcctly adjusted.
c. Impr
opcr choke opera ti on.
r. Fouled or improperly gapped spark plug.
g. Weak ignition signal ge nerator.
h. Wcak
or fa ulty ignitor unit.
i. Ignition timing in cor rect (fau lt y component in
systcm).
j. Brokcn or shorted ignition coil.
k. Improper valve liming. .
I. Clogged air filter clcment.
CHAPTER TWO
m. Contaminated fuel.
n. Improperly adj usted automat ic decompression
cable.
Engine Will Not Idle
or
Idles Erratically
a. Ca rbur etor incorrectly adjustcd.
b. Foulcd or imprope rl y gapped spark plug.
c. Leaking head gask
et or vacuum leak.
d. Weak ignition signal gencrator.
c. Wcak
or faulty ignitor unit.
r. Ig nit ion timing incorrect (faulty compone nt in
systcm).
g. Improper valve tim
in g.
h. Ob structed fu el line or fu el shutoff val vc.
Engine Misses at High Speed
a. Fouled or improperly gapped spark p lu g.
b. Impr
oper ignition timing (fau lt y compone nt in
system).
c. Improper carburetor main jct selec ti on.
d. Clogged
jets in th e carburetor(s).
c. Weak ignition coi
l.
f. Weak ig ni tion signal generator.
g. Weak or faulty ignitor unit.
h. Impr
oper va lve timing.
i. Obstructed fuel line or fuel shutoff valve.
Engine
Continues to
Run with Ignition Off
a. Excessi ve carbon buildup in engine.
b. Vac uum leak in intakc system.
c. Contaminated
or incorrect fuel octane rating.
Engine Overheating
a. Obstructed cooling fins on the cy li nder and
cylind er head.
b. Improper ignition timing (f aulty component in
system).
c. Improper spark plug heat range.
d. Engine oil level low.
Engine Misses
at Idle
a. Fouled or imprope
rl y gapped spark plug.
b. Spark plug cap
fa ult y.
c. Ign iti on cable ins ul ation deteriorated (s h oning
out).

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
