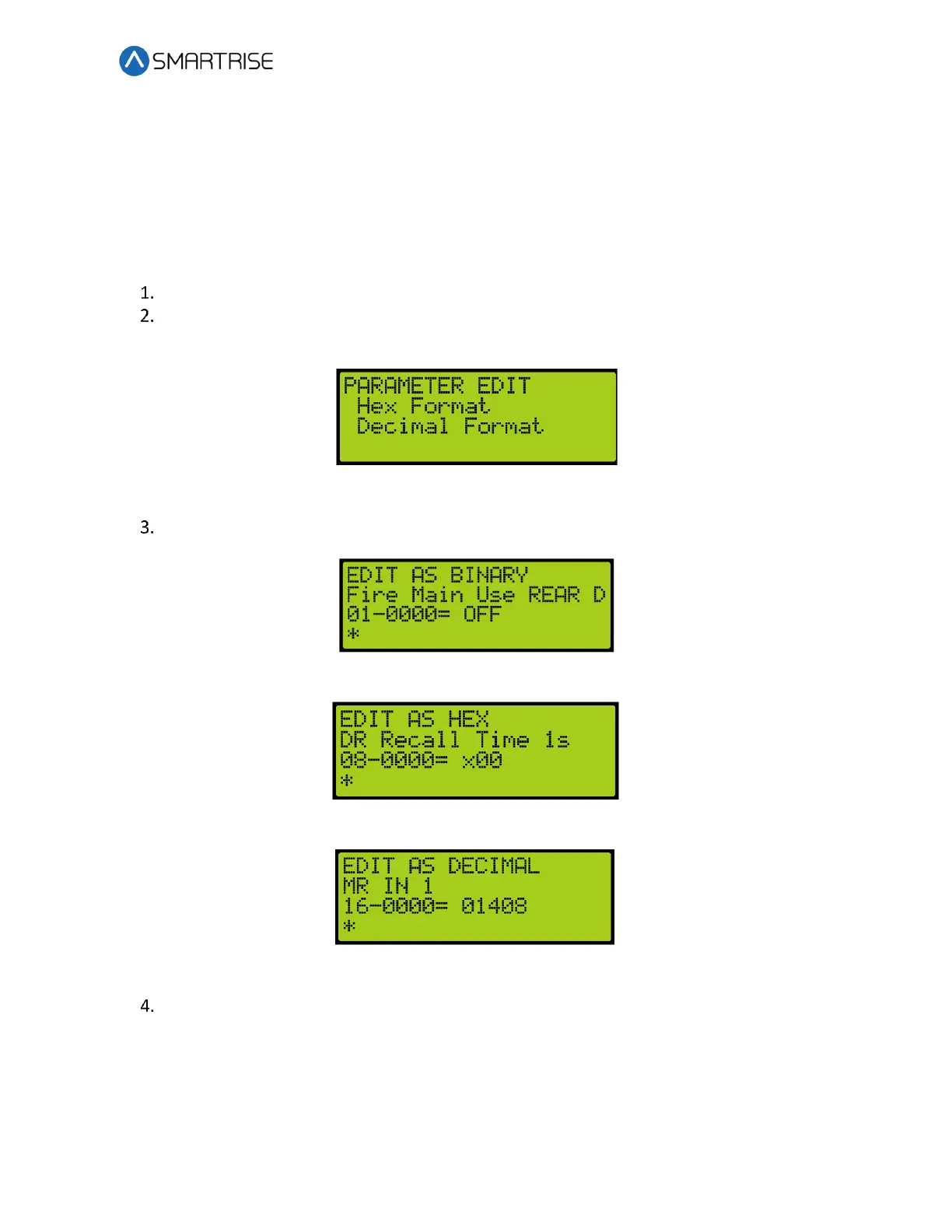

Hydro:Evolved User Manual

5 Parameters

Parameters are configured per job. Users can edit parameters either as binary, decimal, or

hexadecimal format. If editing for binary, the binary option is part of the hexadecimal and

decimal format. The binary parameter can be set to either On or Off.

The following procedure describes how to set the parameters.

Navigate to MAIN MENU | DEBUG | EDIT PARAMETERS. See Figure 63.

From the PARAMETER EDIT menu, scroll and select Hexadecimal Format or Decimal

Format.

Figure 69: PARAMETER EDIT Menu – Hexadecimal or Decimal Format

From the EDIT menu, edit the address.

Figure 70: EDIT AS BINARY Menu Hexadecimal or Decimal Format

Figure 71: EDIT AS HEXADECIMAL Menu

Figure 72: EDIT AS DECIMAL Menu

Scroll right and press Save.
