From the CONTROLLER menu, view the status of the configured output.

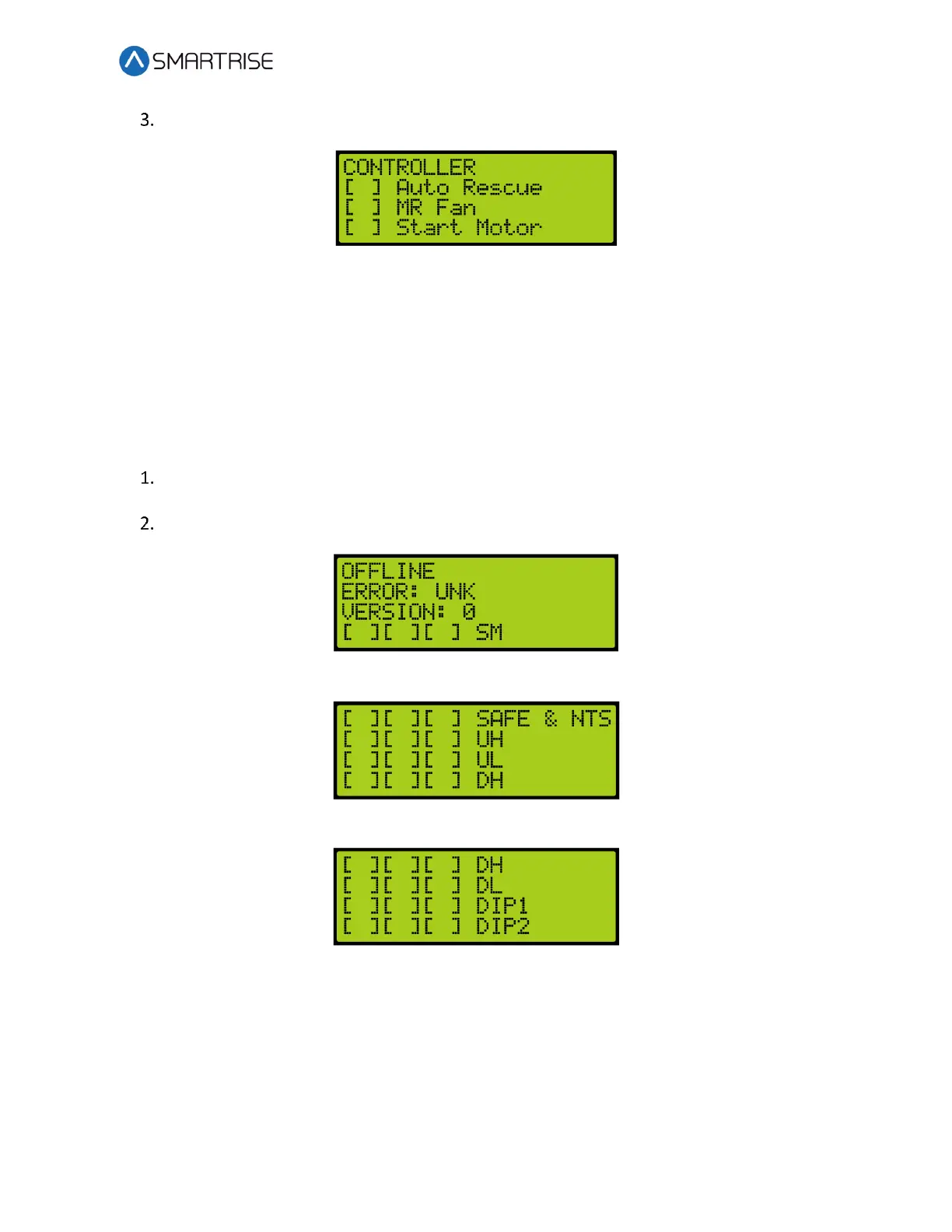

Figure 530: CONTROLLER Menu
32.3 Valve 1 and Valve 2 Status
The Valve 1 and Valve 2 status displays the activity of the valve and if there are any errors. The
state and error displays unknown when there is no valve connected in the controller. If a
configuration error exists, an Invalid Config message is displayed.
The following procedure describes how to view the status of Valve 1 and Valve 2.
Navigate to MAIN MENU | STATUS | Valve 1 Status (see Figure 44) or MAIN MENU |
STATUS | Valve 2 Status (see Figure 45).
From the Valve 1 or Valve 2 Status menu, view the status of the valve.
Figure 531: Valve Status Menu – Part 1 of 3
Figure 532: Valve Status Menu – Part 2 of 3
Figure 533: Valve Status Menu – Part 3 of 3
The Valve 1 and 2 Status menus display the following:
• Valve Activity – Displays if the valve is online or offline.
• Error – Displays an error code if a fault exists.
• Version – Displays the version.
• SM through DL – Displays the status of the Valve board: Command from the controller,
input to the Valve board and output from the Valve board.
To Next Page
