Hydro:Evolved User Manual
October 2022 © 2022 Smartrise Engineering, Inc. All Rights Reserved Page 279

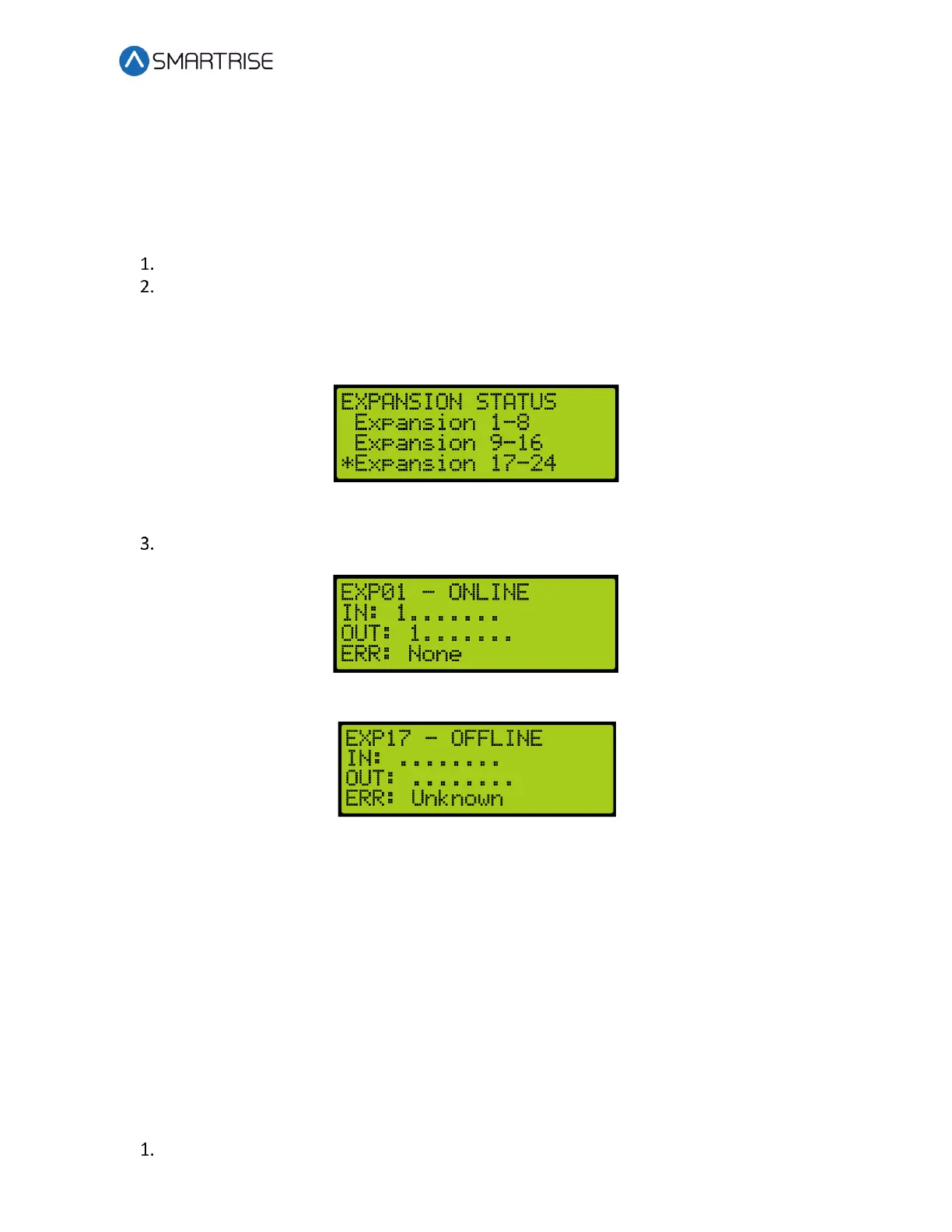

32.5 Expansion Status
The Expansion status displays the input/output of an expansion board in-service. The “In:” and
“OUT:” display any active inputs or outputs on the board.
The following procedure describes how to view the expansion status.
Navigate to MAIN MENU | STATUS | EXPANSION STATUS. See Figure 46.
From the EXPANSION STATUS menu, scroll and select which expansion board group is
being viewed.
NOTE: Expansion boards are set in groups of 8. If a 24 input board is used, only the first
expansion would show online.
Figure 537: EXPANSION STATUS Menu – Expansion Group
From the EXPANSION Status menu, view the status of an Expansion board.
Figure 538: Active Expansion Board Status
Figure 539: Inactive Expansion Board Status
The Expansion Board Status menu displays the following:
• Expansion Board Activity – Displays the connection status of the board.
• In – Shows active inputs.
• Out – Shows active outputs.
• Error – If a red LED is lit, the Expansion Board status shows an error.
32.6 Riser Board Status
The Riser board status displays the activity of the hall network and if there are any errors.
The following procedure describes how to view the Riser board status.
Navigate to MAIN MENU | STATUS | RISER BOARD STATUS. See Figure 46.
