Hydro:Evolved User Manual

From the GROUP SETUP menu, scroll and select Dispatch Offline Timeout.

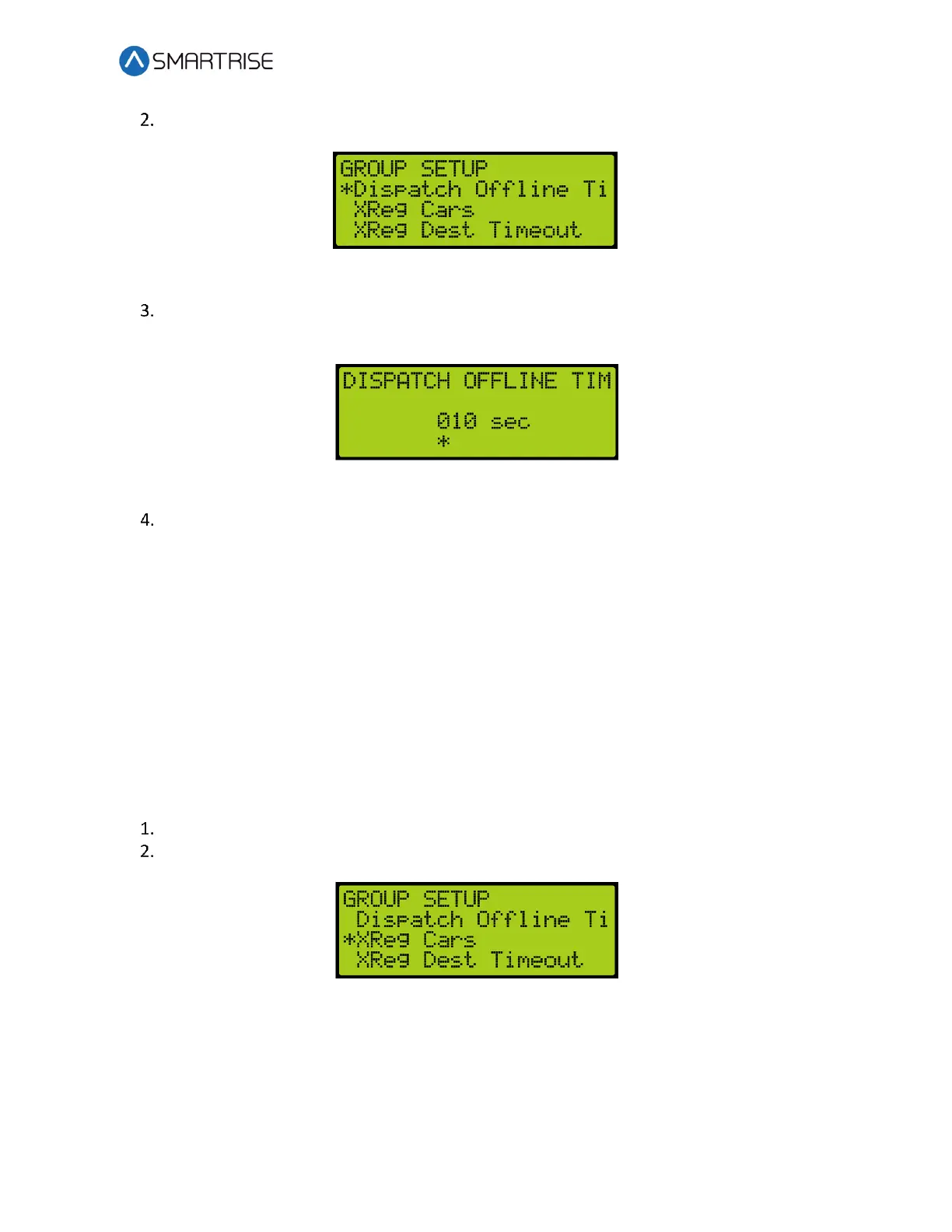

Figure 579: GROUP SETUP Menu – Dispatch Offline Timeout

From the DISPATCH OFFLINE TIMEOUT menu, set the time the car is out of the group If

set to zero, this feature is disabled.

Figure 580: DISPATCHING OFFLINE TIMEOUT Menu

Scroll right and press Save.

34 XREG

Cross registration allows for the controller dispatching system to interface with non-Smartrise

controllers.

34.1 XReg Cars

Cross registration cars set the number of cars from the legacy system to be included for

dispatching.

The following procedure describes how to set XREG cars.

Navigate to MAIN MENU | SETUP | GROUP SETUP. See Figure 58.

From the GROUP SETUP menu, scroll and select XReg Cars.

Figure 581: GROUP SETUP Menu – XREG Cars
