Hydro:Evolved User Manual
Page 260 © 2022 Smartrise Engineering, Inc. All Rights Reserved October 2022
From the FLASH FIRE HAT menu, scroll and select ON. See Figure 476.
Scroll right and press Save.
31.3.5.3 Shunt Trip
A shunt output is designed to trip a breaker shutting off the main power to the controller in
case of a fire in the hoistway.
The following procedure describes how to set up the parameters in case smoke is detected in
the hoistway.
Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.
From the FIRE SERVICE menu, scroll and select Hoistway Smoke. See Figure 484.
From the HOISTWAY SMOKE menu, scroll and select Shunt Trip.

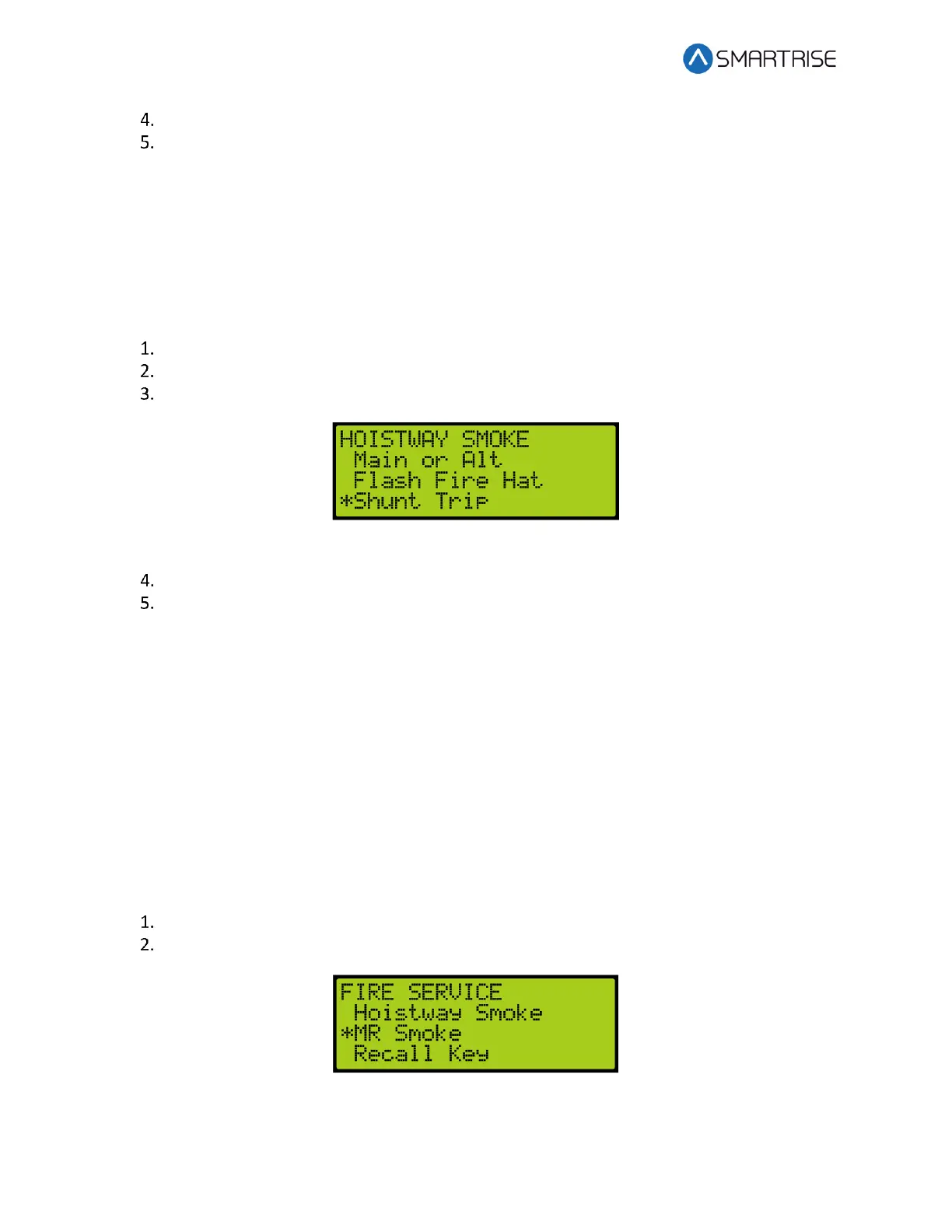

Figure 487: HOISTWAY SMOKE Menu – Shunt Trip
From the SHUNT ON RECALL menu, scroll and select ON. See Figure 478.
Scroll right and press Save.
31.3.6 MR Smoke
The MR smoke is where the car is recalled to a designated landing when smoke has been
detected in the machine room.
31.3.6.1 Main or Alternate
The car travels to the main landing when smoke has been detected. If configured and the
smoke is on that floor, the car travels to an alternated landing.
The following procedure describes if the car travels to the main or alternate designated landing
when smoke has been detected.
Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.
From the FIRE SERVICE menu, scroll and select MR Smoke.
Figure 488: FIRE SERVICE Menu – MR Smoke
