Install and replace the CT or COP board and reattach the connector terminals.
NOTE: Ensure all DIP switches are correct.
Turn the CT/COP switch to either the CT or COP that is being replaced.
NOTE: The switch is located on the upper right corner of the board.
Power up the controller.
The Sync Process automatically begins due to a checksum that consistently compares
parameters between all three boards.
NOTE: There is no SYN IN PROGRESS displayed.
When complete, the CT/COP board is in normal operation with all parameters retained.
26 Hoistway Access
The hoistway access safely and securely moves the car at the terminal landings to gain access to
either the pit or the top of the hoistway. Normally, this is done with a key switch that enables
the top or bottom access inputs on the controller.
The following procedure describes how to access the hoistway.
Navigate to MAIN MENU | SETUP | HOISTWAY ACCESS. See Figure 56.
Is the hoistway being accessed from the top of the hoistway or the pit?
a. If the hoistway is being accessed from the top of the hoistway, go to step 3.
b. If the hoistway is being accessed from the bottom of the hoistway, go to step 14.
From the HOISTWAY ACCESS menu, scroll and select Allowed Distance Top.

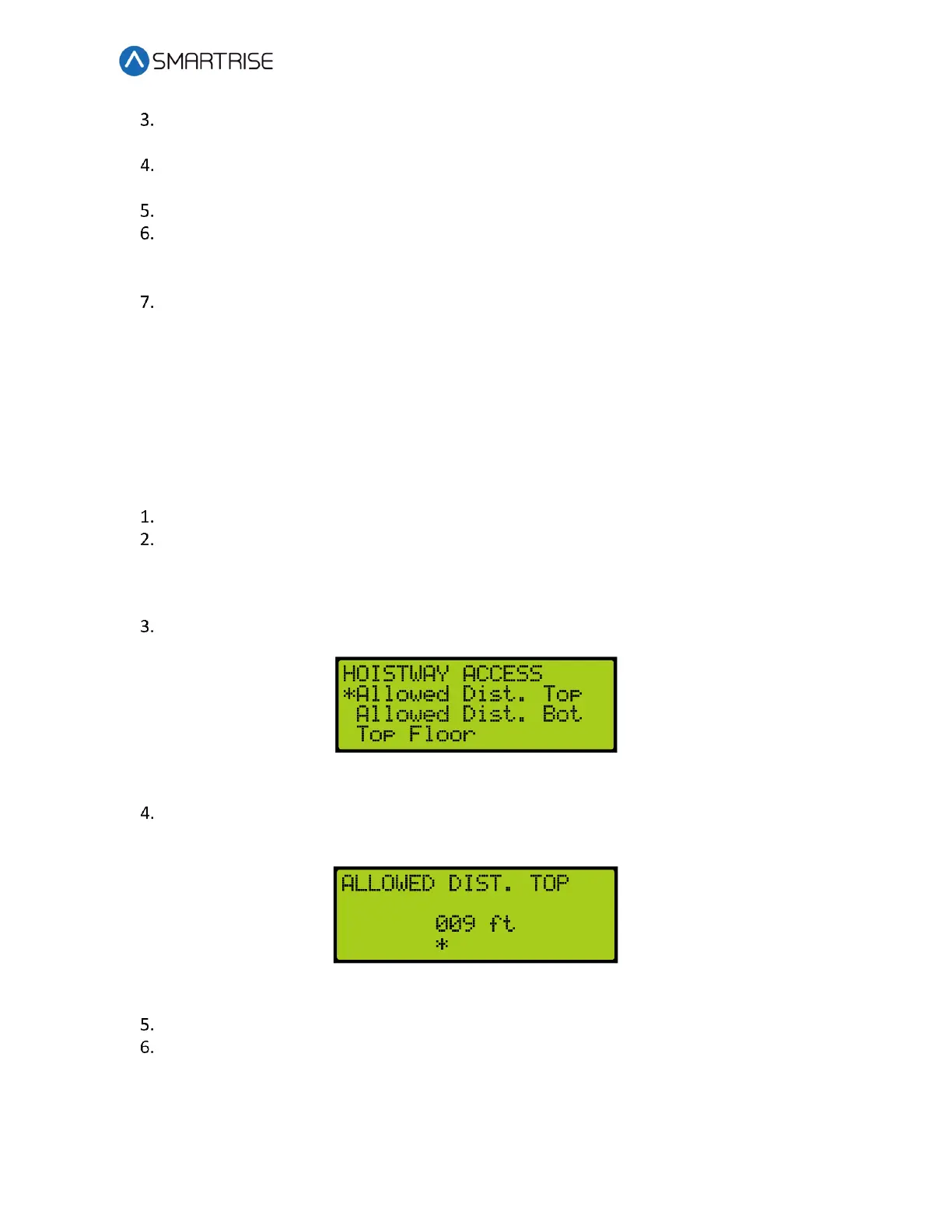

Figure 357: HOISTWAY ACCESS – Allowed Distance Top
From the ALLOWED DISTANCE TOP menu, scroll and select the distance from the car to
the hoistway.
Figure 358: ALLOWED DISTANCE TOP Menu
Scroll right and press Save.
Press the left button until the HOISTWAY ACCESS menu displays.
