The following procedure describes how to adjust the floor level.
Navigate to MAIN MENU | SETUP | FLOORS. See Figure 55.
From the FLOORS menu, scroll and select Too High/ Too Low.

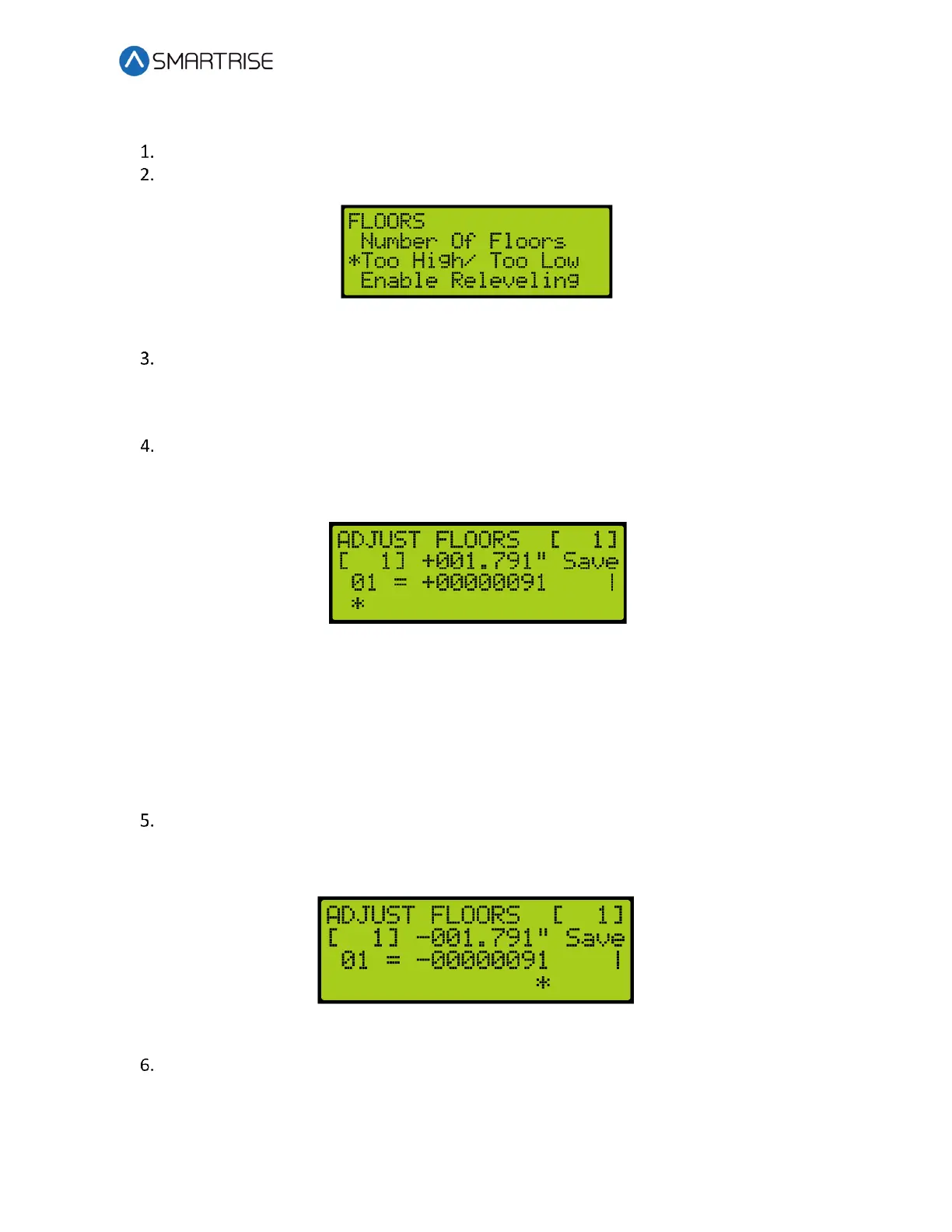

Figure 122: FLOORS Menu – Too High/ Too Low
Is car stopping too low or too high?
a. If the car stops too low, go to step 4
b. If the car stops too high, go to step 5.
From the ADJUST FLOORS menu, adjust the stopping point so the car stops at the exact
floor level. For example, if the car stops 1.5”-2” below the floor level, add that distance
to the learned position. Go to step 6.
Figure 123: ADJUST FLOORS Menu – Too Low
The ADJUST FLOORS menus display the following:
• Adjust Floors [ 1] – Displays the floor the car is currently at.
• [ 1] +001.791” – The distance the car needs to be adjusted to stop at floor level.
• 01 = +00000091 –The counts that determine the amount of distance needed for
floor leveling.
From the ADJUST FLOORS menu, adjust the stopping point so the car stops at the exact
floor level. For example, if the car stops 1.5”-2” above the floor level, add that distance
to the learned position.
Figure 124: ADJUST FLOORS Menu – Too High
Scroll right and press Save.
