Hydro:Evolved User Manual

These connections must be made before going into inspection and normal operation.

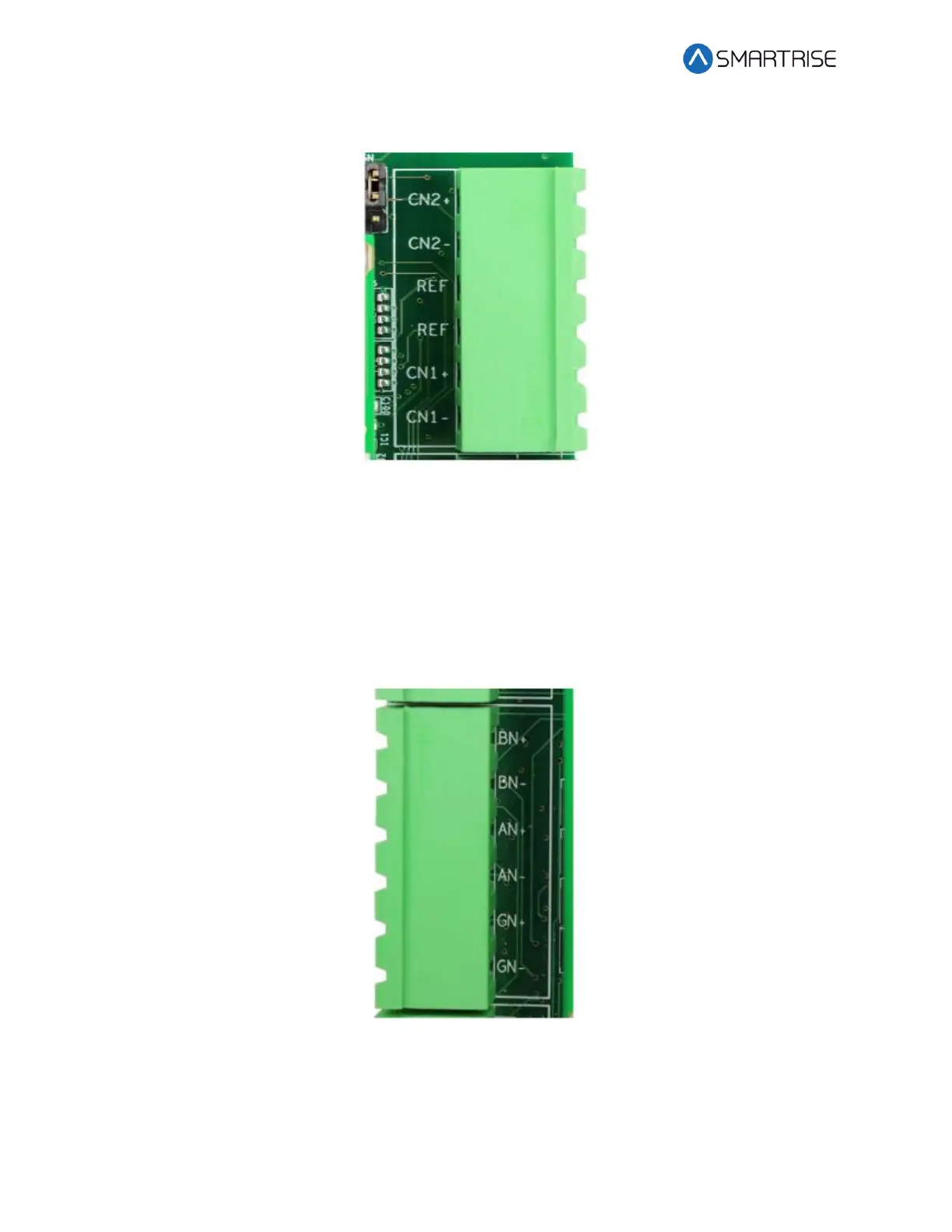

Figure 13: CN Connector

Valve Network (BN) Terminals – Communication between the MR board and the Valve board.

Aux Network (AN) Terminals – Auxiliary communication between the Machine Room and any

compatible third-party devices, for example, IE CE Drive board.

Group Network (GN) Terminals – Group communication. These connections connect all the

cars together in a group setting.

Figure 14: CAN 1,2,3 Network Connector
