Hydro:Evolved User Manual

From the Secure (Front or Rear) Hall Call menu, view the status of front or rear car doors

that require security access.

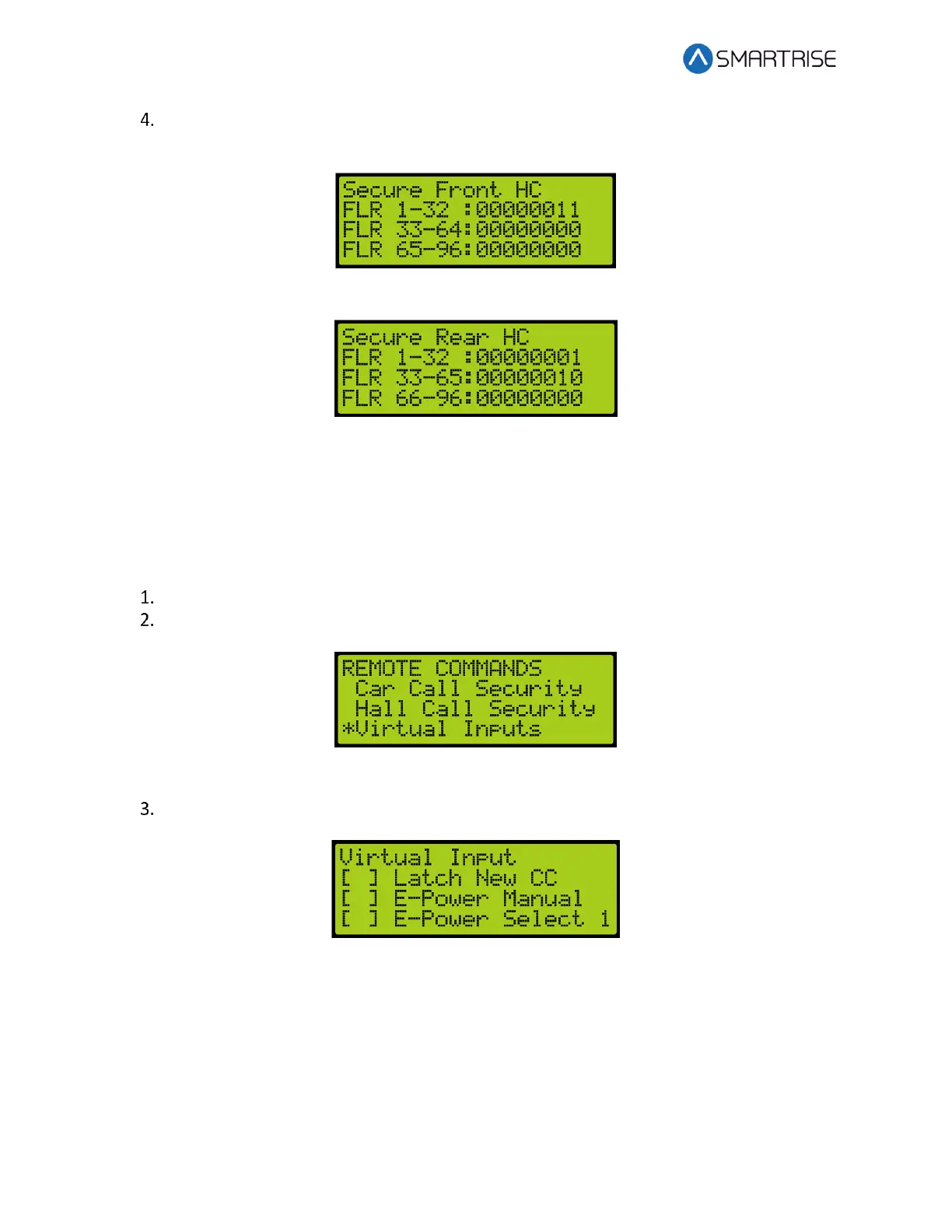

Figure 562: Secure Front Hall Call Menu

Figure 563: Secure Rear Hall Call Menu

32.11.1.3 Virtual Input

The recall input displays the status of inputs set through the remote monitoring system.

The following procedure describes how to view the status of the auto operation input.

Navigate to MAIN MENU | STATUS | VIRTUAL INPUTS. See Figure 50.

From the REMOTE COMMANDS menu, scroll and select Virtual Inputs.

Figure 564: REMOTE COMMANDS Menu – Virtual Inputs

From the Virtual Input menu, view the status of auto operation inputs that are active.

Figure 565: Virtual Input Menu
