Hydro:Evolved User Manual

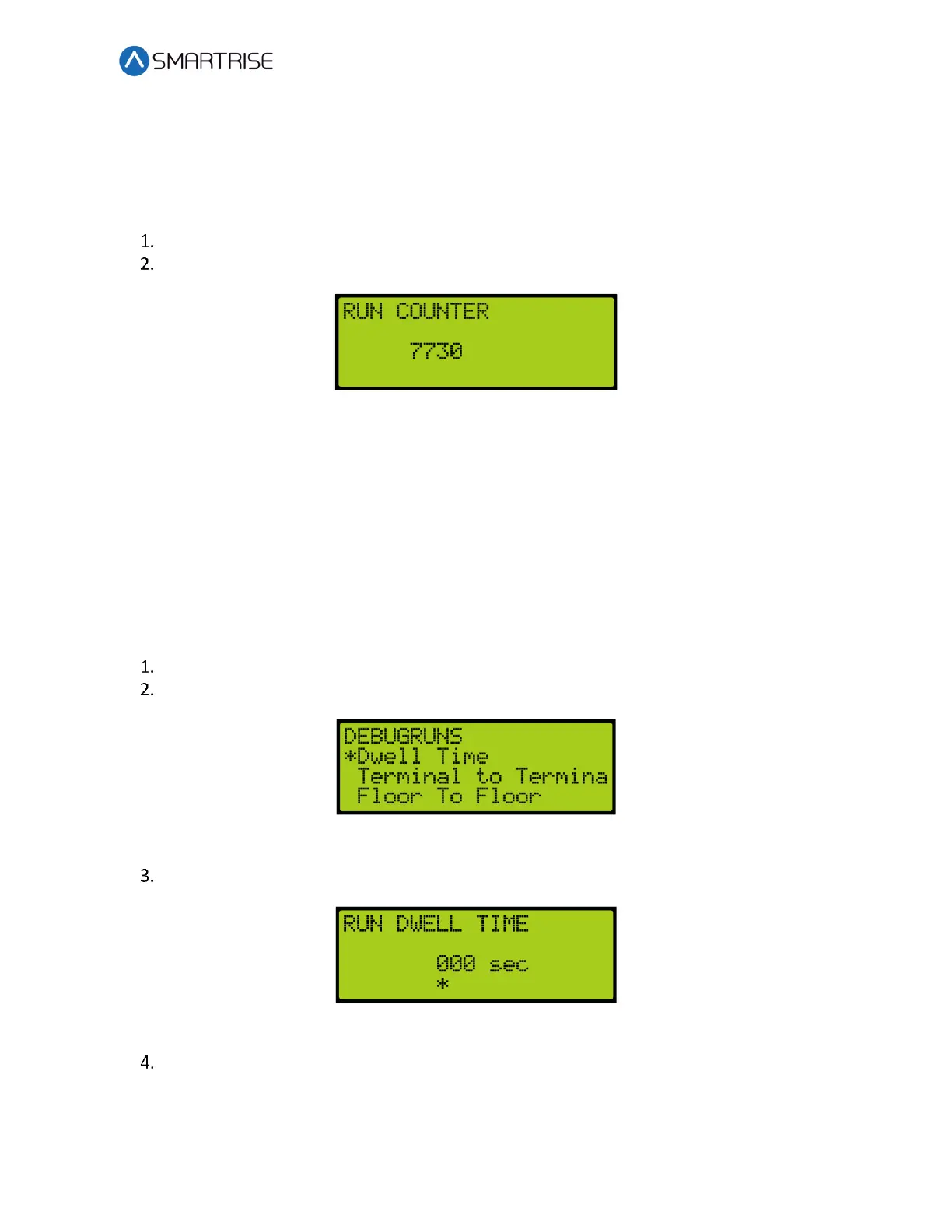

38.11 Run Counter

The run counter displays the total number of runs.

The following procedure describe how to view the run counter.

Navigate to MAIN MENU | DEBUG | RUN COUNTER. See Figure 66.

From the RUN COUNTER menu, view the number of runs the car has completed.

Figure 624: RUN COUNTER Menu

38.12 DebugRuns

The debugruns is where a random car and hall calls can be placed into the system.

38.12.1 Dwell Time

The dwell time is the time between debug test runs.

The following procedure describes how to set the dwell time.

Navigate to MAIN MENU | DEBUG | DEBUGRUNS. See Figure 66.

From the DEBUGRUNS menu, scroll and select Dwell Time.

Figure 625: DEBUGRUNS Menu – Dwell Time

From the RUN DWELL TIME menu, set the time between test runs.

Figure 626: RUN DWELL TIME Menu

Scroll right and press Save.
