The following procedure describes how to verify Hall Lantern status.
Navigate to MAIN MENU | STATUS | HALL LANTERN STATUS. See Figure 47.
The example below shows the status of the Hall Lantern.

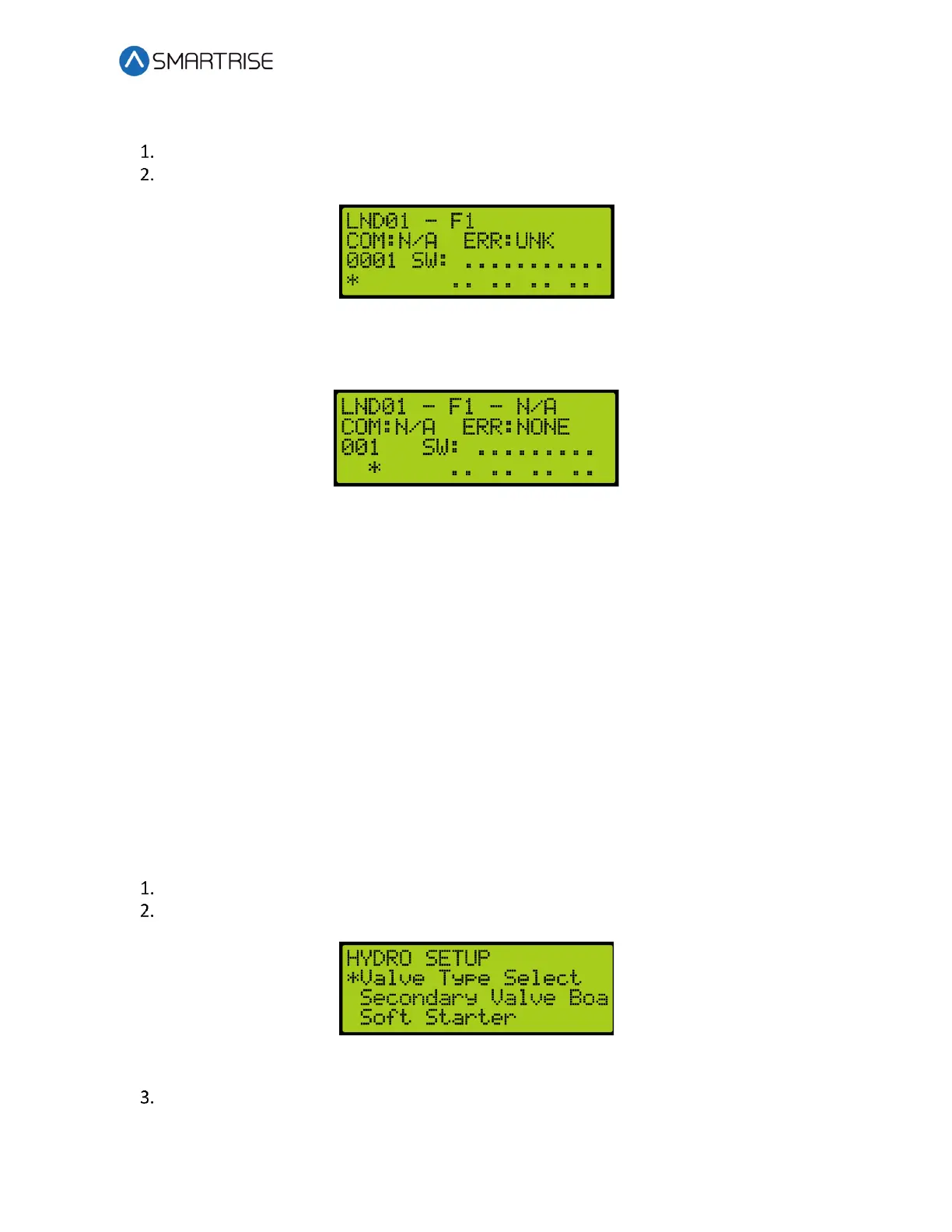

Figure 276: Hall Lantern Status
The figure below shows an example of the status of an uninitialized Hall Lantern Status.
Figure 277: Uninitialized Hall Lantern Status
17.4 Errors
For Serial Hall Lanterns errors, see section 16.11 Errors.
18 Hydro
Hydraulic elevators are powered by a piston that travels inside a cylinder. Electrical valves
control the release of the oil which makes the car moves in either direction.
18.1 Valve Type Select
The valve type allows the user to select which type of valve is being used on the system.
The following procedure describes how to select the type of valve.
Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.
From the HYDRO SETUP menu, scroll and select Valve Type Select.
Figure 278: HYDRO SETUP Menu – Valve Type Select
From the VALVE TYPE SELECT menu, scroll and select the type of valve being used on the
system.
