Hydro:Evolved User Manual

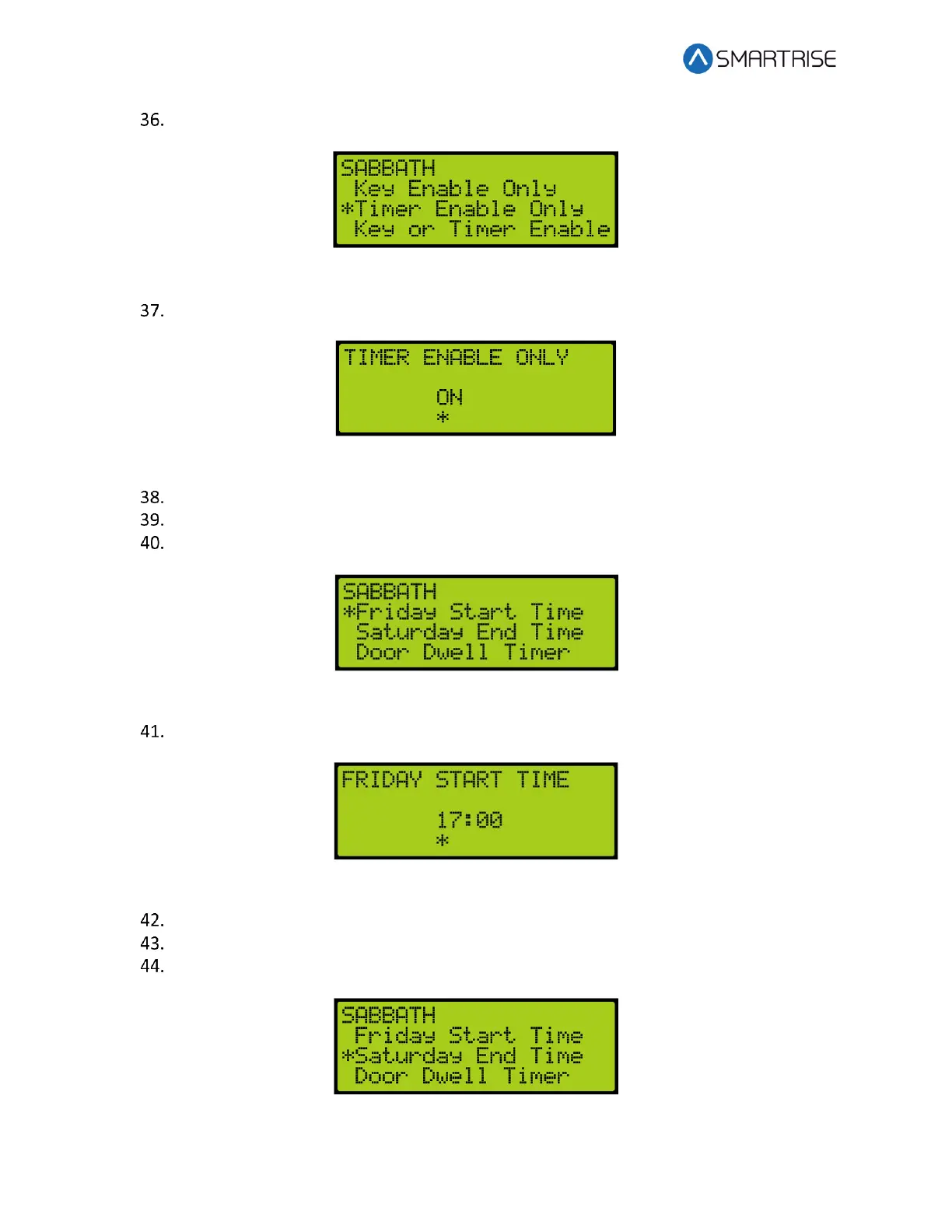

From the Sabbath menu, scroll and select Timer Enable Only.

Figure 171: SABBATH Menu – Timer Enable Only

From the TIMER ENABLE ONLY menu, press the up button and select ON.

Figure 172: TIMER ENABLE ONLY Menu

Scroll right and press Save.

Press the left button until the SABBATH menu is displayed.

From the SABBATH menu, scroll and select Friday Start Time.

Figure 173: SABBATH Menu – Friday Start Time

Set the time the Sabbath starts.

Figure 174: FRIDAY START TIME Menu

Scroll right and press Save.

Press the left button until the SABBATH menu is displayed.

From the SABBATH menu, scroll and select Saturday End Time.

Figure 175: SABBATH Menu – SATURDAY END Time
