Hydro:Evolved User Manual
Page 258 © 2022 Smartrise Engineering, Inc. All Rights Reserved October 2022
31.3.4.2 Flash Fire Hat
If the fire flash hat been enabled during alternate smoke, a fire hat symbol on the panel flashes
when smoke has been detected.
The following procedure describes how to enable the flash fire hat.
Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.
From the FIRE SERVICE menu, scroll and select Alt Smoke. See Figure 479.
From the ALT SMOKE menu, scroll and select Flash Fire Hat.

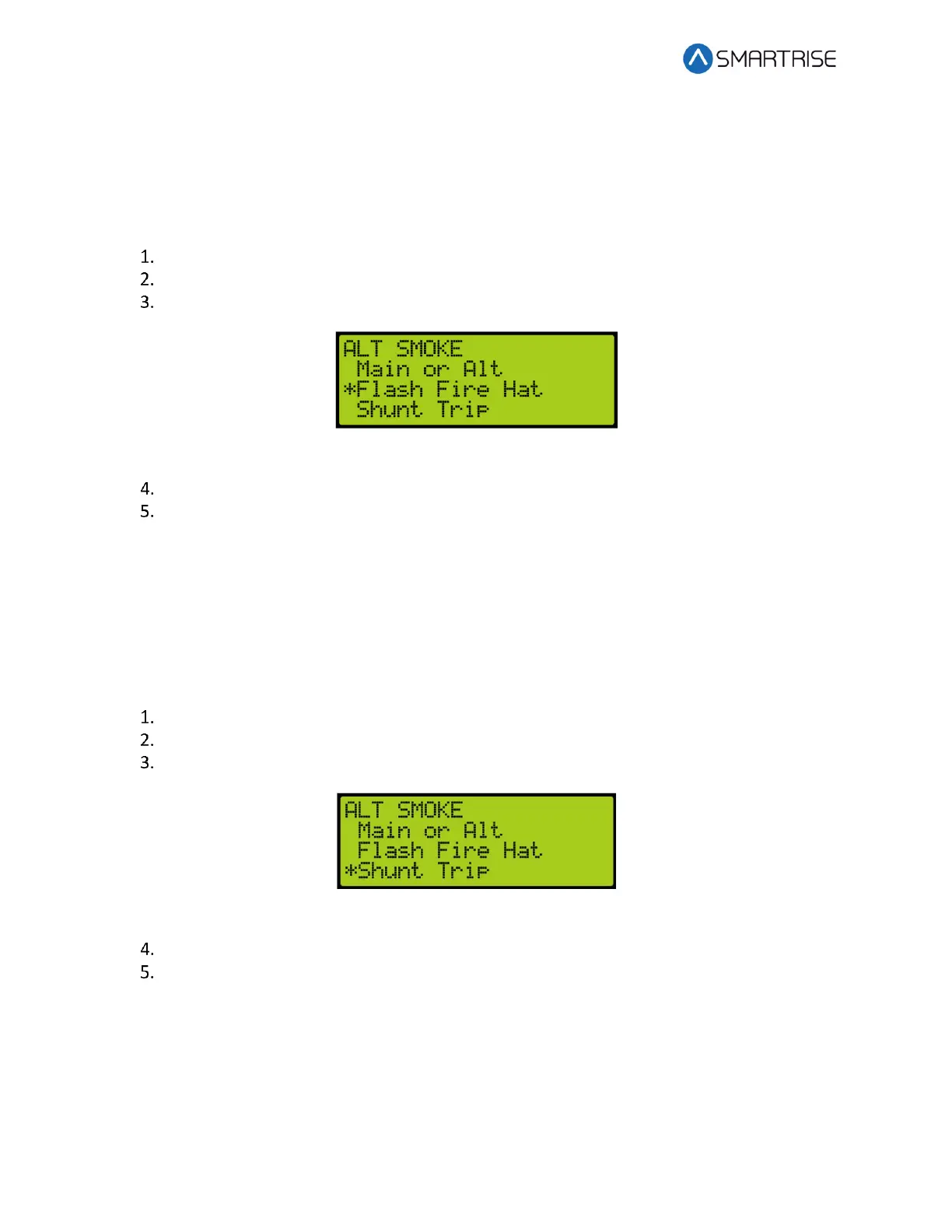

Figure 482: ALT SMOKE Menu – Flash Fire Hat
From the FLASH FIRE HAT menu, scroll and select ON. See Figure 476.
Scroll right and press Save.
31.3.4.3 Shunt Trip
A shunt output is designed to trip a breaker shutting off the main power to the controller in
case of a fire in the main lobby.
The following procedure describes how to set up the parameters in case smoke is detected in
the main lobby.
Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.
From the FIRE SERVICE menu, scroll and select Alt Smoke. See Figure 479.
From the ALT SMOKE menu, scroll and select Shunt Trip.
Figure 483: ALT SMOKE Menu – Shunt Trip
From the SHUNT ON RECALL menu, scroll and select On. See Figure 478.
Scroll right and press Save.
31.3.5 Hoistway Smoke
The hoistway smoke is where the car is recalled to a designated landing when smoke has been
detected in the hoistway.
