Hydro:Evolved User Manual
Page 278 © 2022 Smartrise Engineering, Inc. All Rights Reserved October 2022
• DIP 1 – Displays the status of the primary and secondary Valve boards (Command, Input
and Output).
• DIP 2 – Displays the status of operation of the secondary Valve board . If DIP 2 is ON, the
secondary Valve board testing will pause.
32.4 Soft Starter and Soft Starter 2 Status
The Soft Starter status’ displays the status of the primary and secondary (if configured) soft
starters.
The following procedure describes how to view the Soft Starter status.
Navigate to MAIN MENU | STATUS | SOFT STARTER STATUS or SOFT STARTER 2 STATUS.
See Figure 45.
From the Soft Starter Status menus, view the status of the Soft Starter.

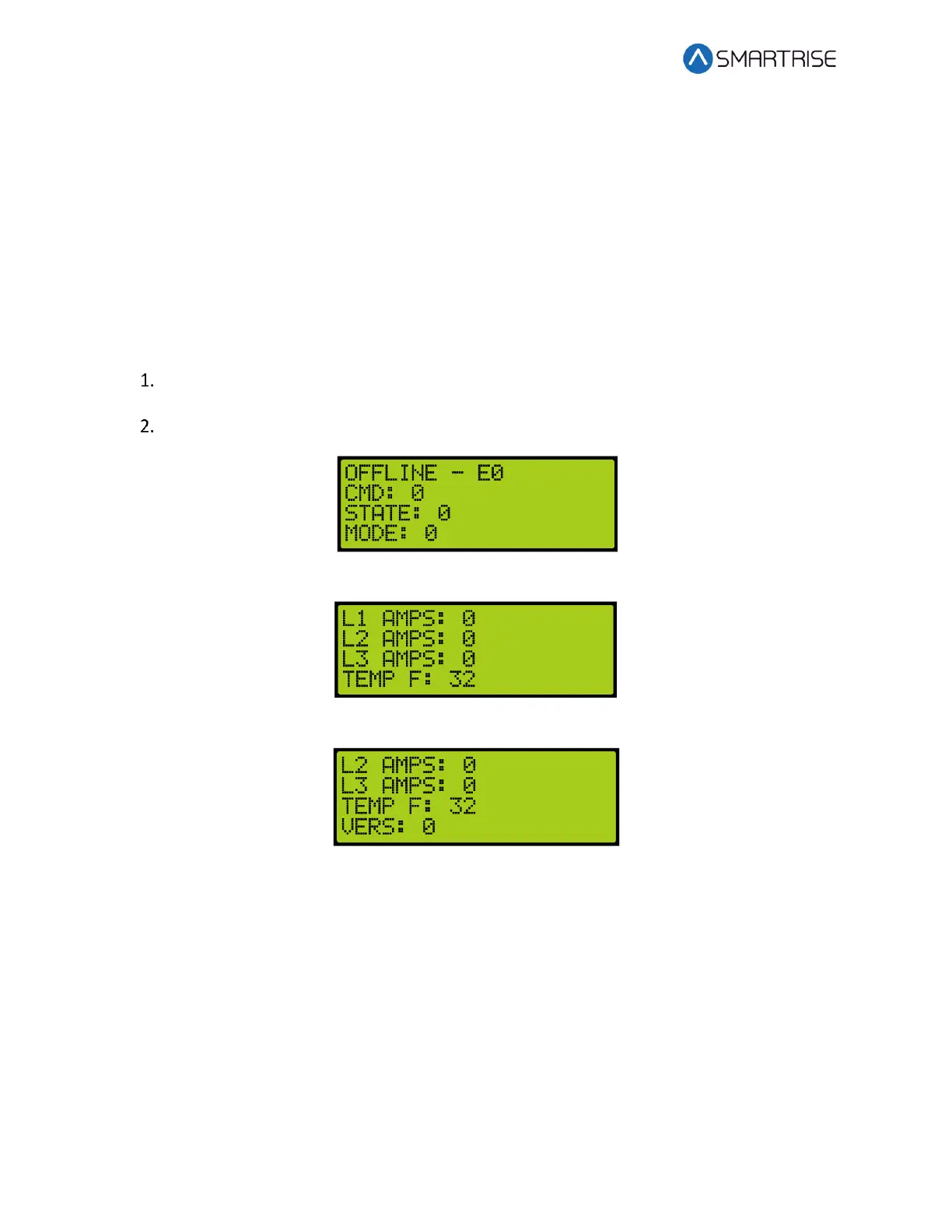

Figure 534: Soft Starter Status Menu – Part 1 of 3
Figure 535: Soft Starter Status Menu – Part 2 of 3
Figure 536: Soft Starter Status Menu – Part 3 of 3
The Soft Starter and Soft Starter 2 Status menus display the following:
• Soft Starter Activity – Displays if the soft starter is online or offline.
• CMD – Displays an error code if a fault exists.
• STATE – Displays the state of the soft starter.
• MODE – Displays the mode of the soft starter.
• L1 through L3 – Displays the amount of current through each phase to soft starter.
• Temperature – Displays the temperature of the soft starter in °F.
• Version – Displays current software version of the soft starter.
