Hydro:Evolved User Manual

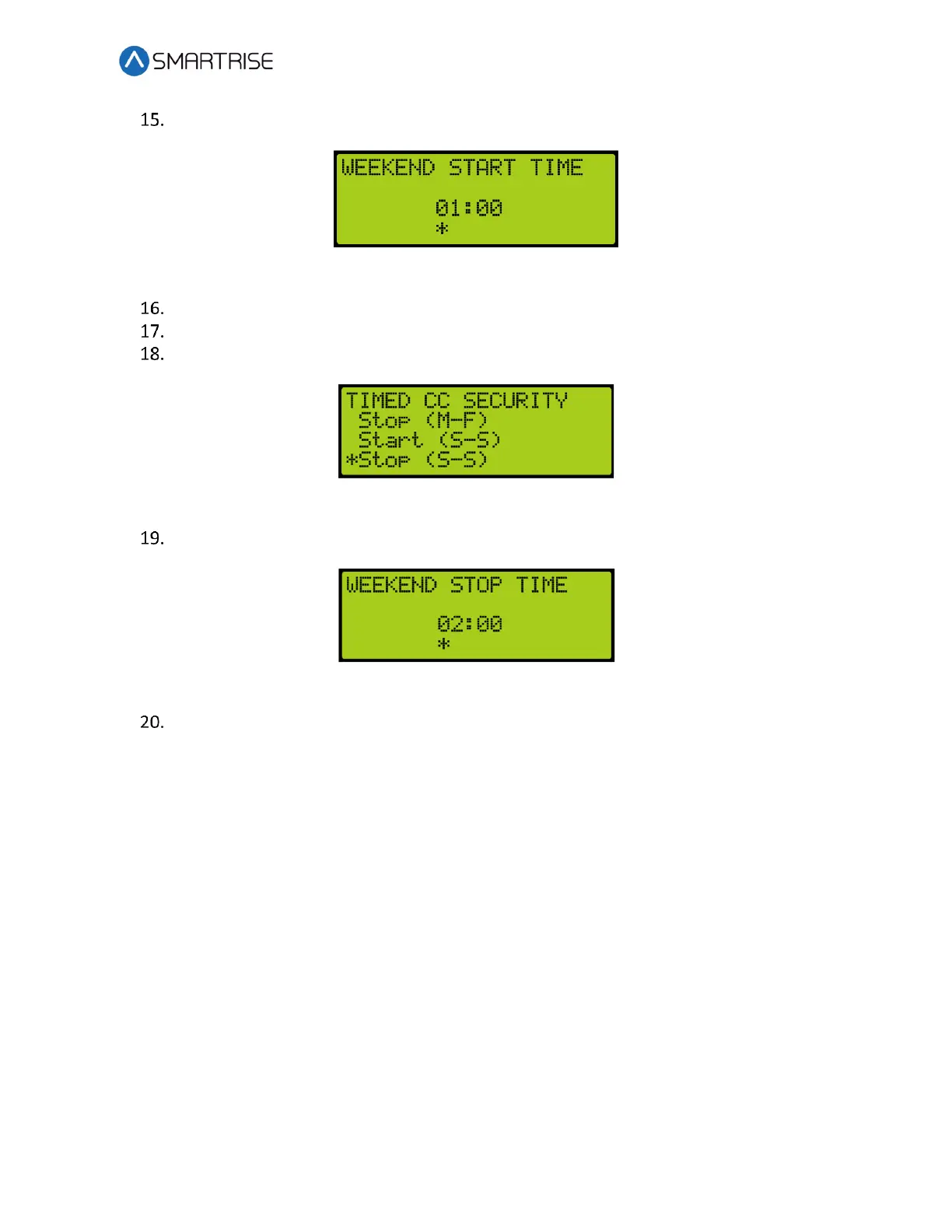

From the WEEKEND START TIME menu, set the start time of the car call security.

Figure 155: WEEKEND START TIME Menu

Scroll right and press Save.

Press the left button until the TIMED CAR CALL SECURITY menu displays.

From the TIMED CAR CALL SECURITY menu, scroll and select Stop (S-S).

Figure 156: TIMED CAR CALL SECURITY Menu – Stop (S-S)

From the WEEKEND STOP TIME menu, set the stop time of the car call security.

Figure 157: WEEKEND STOP TIME Menu

Scroll right and press Save.
