Hydro:Evolved User Manual

40 Faults

The Faults menu shows the faults reported by the software and hardware.

40.1 Active Faults

When a fault occurs, the description of the type of fault is displayed in Active Faults. Active

faults can stop the car from running.

The following procedure describes how to view the list of active faults.

Navigate to MAIN MENU | FAULTS | ACTIVE. See Figure 52.

From the ACTIVE FAULTS menu, view the list of faults that are preventing operation.

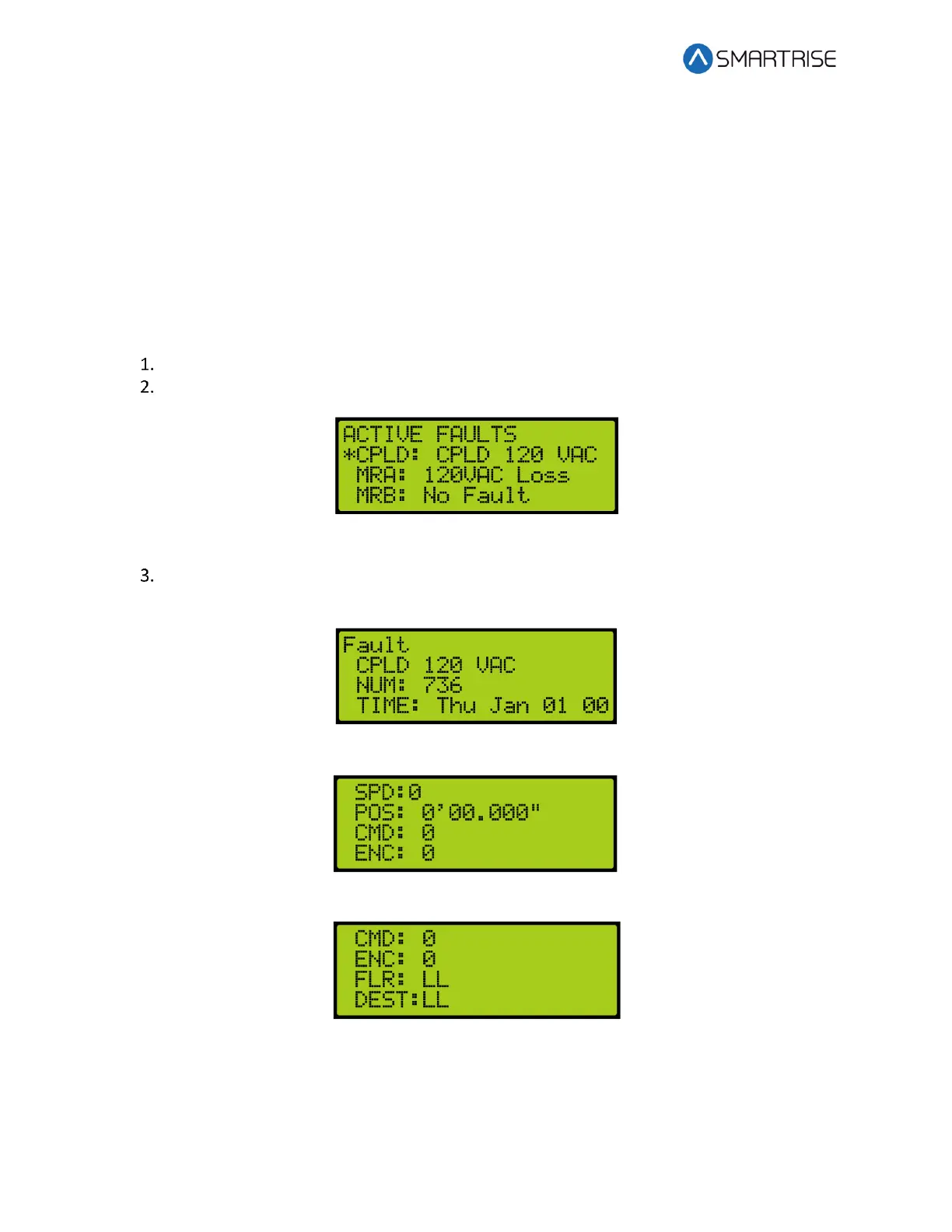

Figure 642: Active Faults Menu

From the Active Faults menu, scroll and press the right button for more description of

the fault. See Hydro:Evolved Faults and Alarms for more information.

Figure 643: Fault Part 1 of 3

Figure 644: Fault Part 2 of 3

Figure 645: Fault Part 3 of 3
