Hydro:Evolved User Manual

From the SOFT STARTER menu, scroll and select Primary.

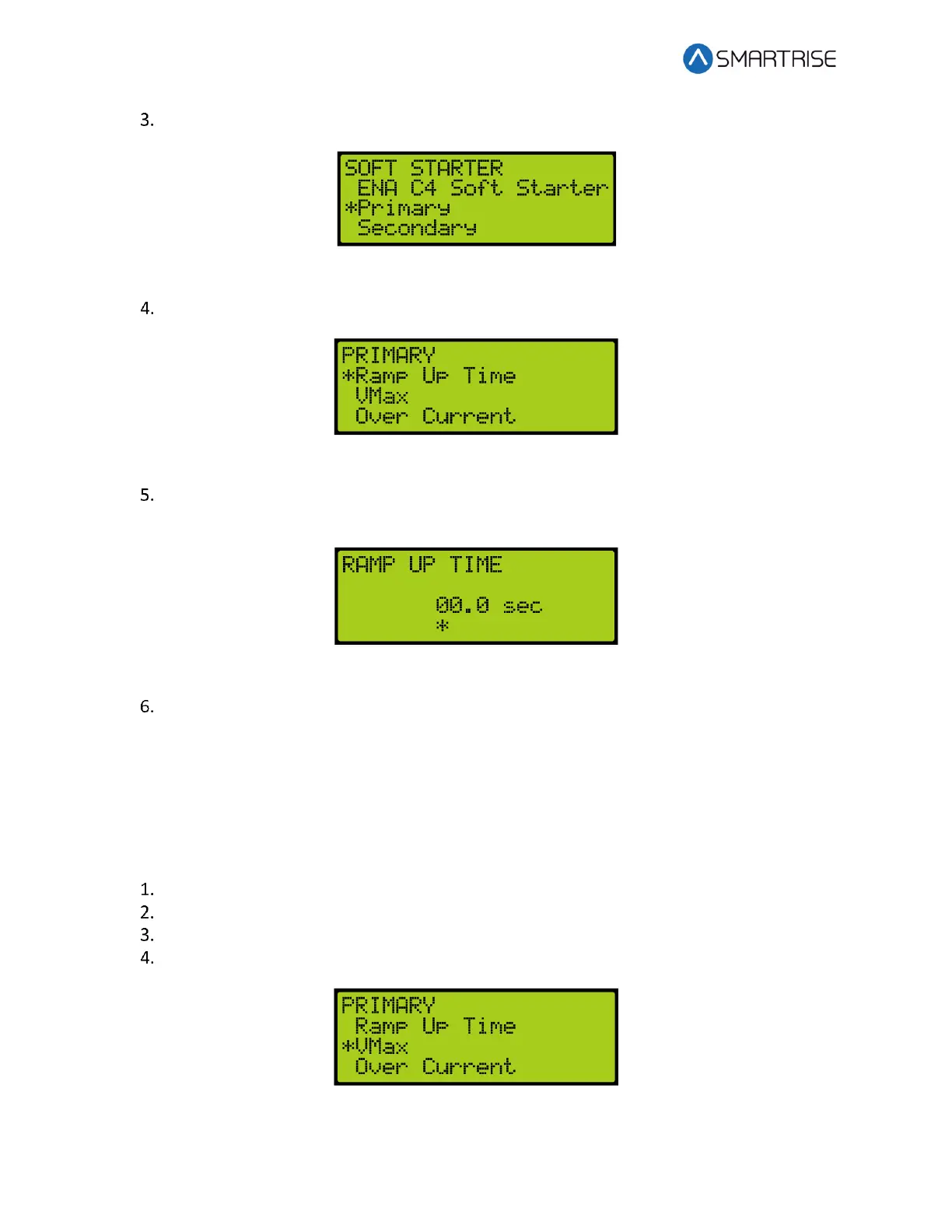

Figure 285: SOFT STARTER Menu – Primary

From the PRIMARY menu, scroll and select Ramp Up Time.

Figure 286: PRIMARY Menu – Ramp Up Time

From the RAMP UP TIME menu, set the time for the soft starter to ramp up to full

voltage.

Figure 287: RAMP UP TIME Menu

Scroll right and press Save.

18.3.2.2 Vmax

Maximum voltage is the percentage of voltage that is allowed to limit the amount of current

and torque to the motor.

The following procedure describes how to set the maximum voltage.

Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.

From the HYDRO SETUP menu, scroll and select Soft Starter. See Figure 282.

From the SOFT STARTER menu, scroll and select Primary. See Figure 285.

From the PRIMARY menu, scroll and select Vmax.

Figure 288: PRIMARY Menu – Vmax
