Hydro:Evolved User Manual

From the MISCELLANEOUS menu, scroll and select Fan & Light Timer.

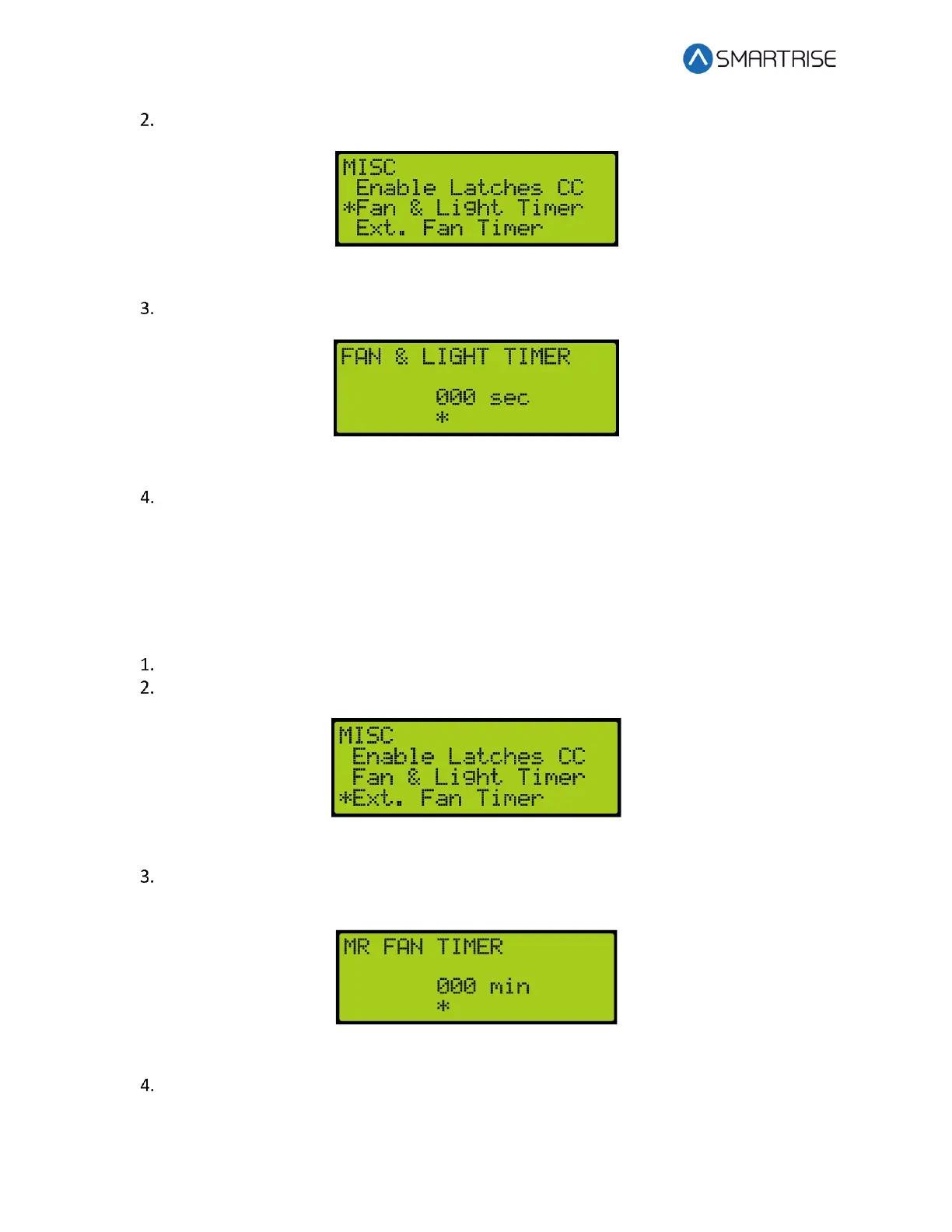

Figure 436: MISCELLANEOUS Menu – Fan & Light Timer

From the FAN & LIGHT TIMER menu, set the time the fan and lights are on.

Figure 437: FAN & LIGHT TIMER Menu

Scroll right and press Save.

29.2 External Fan Timer

The external fan timer is the time for the fan and lights to be on while the car is idle.

The following procedure describes how to set the time the fan and lights are on.

Navigate to MAIN MENU | SETUP | MISCELLANEOUS. See Figure 57.

From the MISCELLANEOUS menu, scroll and select External Fan Timer.

Figure 438: MISCELLANEOUS Menu – External Fan Timer

From the MR FAN TIMER menu, set the time the fan and lights are on while the car is

idle.

Figure 439: MR FAN TIMER Menu

Scroll right and press Save
