Hydro:Evolved User Manual

DIP Switch

Functionality

Description

DIP 5

Sync Params

Writes parameters from cartop to

machine room. This switch is used

when replacing the MR board.

DIP 6

Bypass Fire Srv (w/ 01-0131)

Setting this along with parameter

01-0131 to ON bypasses fire

service.

DIP 7

N/A

DIP 8

Unintended Movement Acceptance

Test

Used during the unintended

movement acceptance test.

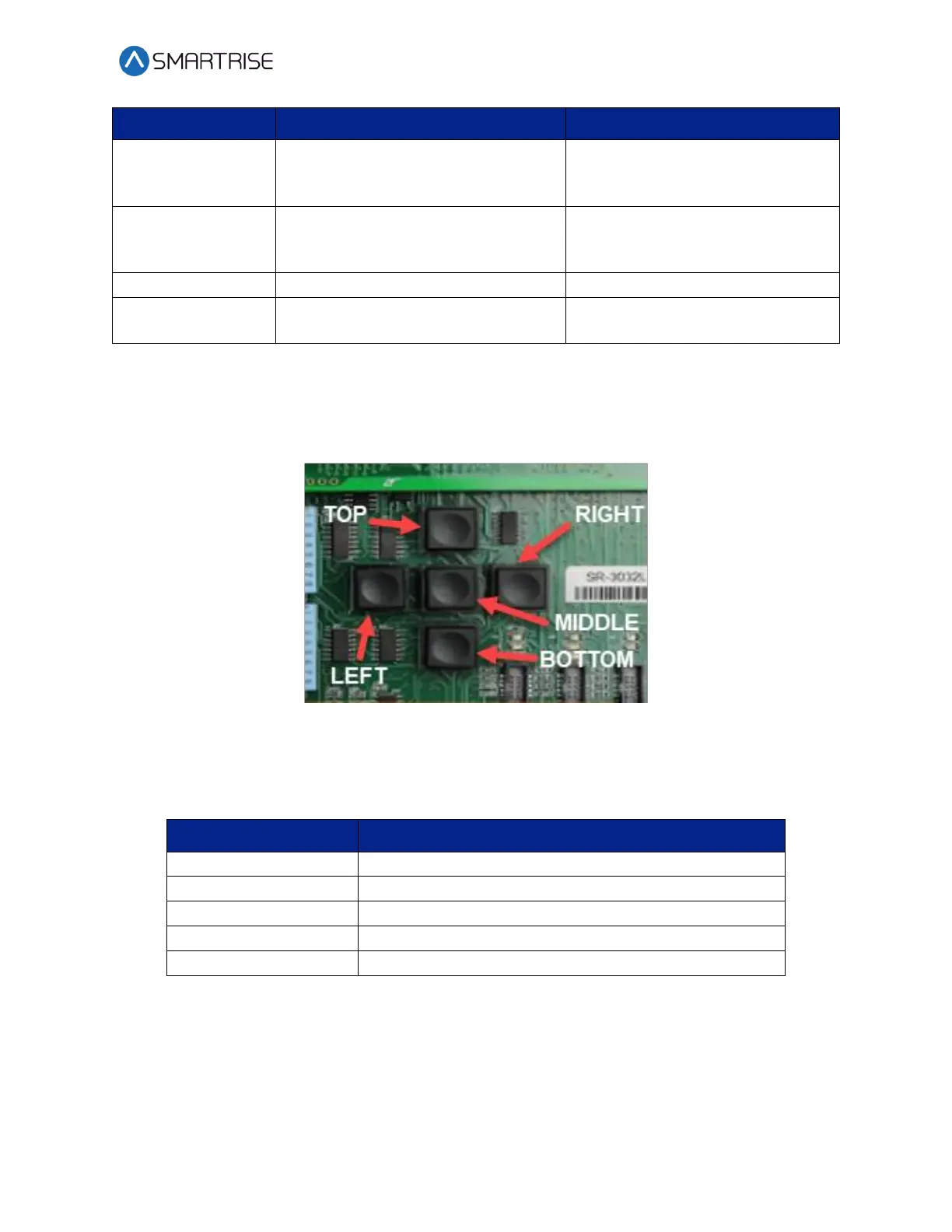

2.1.1 Navigation Buttons

The navigation buttons are the same on every SRU.

Figure 8: Navigation Buttons

The table below lists the navigation button descriptions.

Table 3: Navigation Button Descriptions

Button

Description

Top

Scrolls up through selected menu

Bottom

Scrolls down through selected menu

Left

Navigates back to Main Menu

Right

Progresses to additional menus if applicable

Middle

Select the menu
